What Is a Hydraulic Breaker Chisel?

A hydraulic breaker chisel, also known as a hydraulic hammer tool, breaker tool, hammer chisel, or rock breaker tool, is the working component installed at the front of a hydraulic breaker.

It directly transfers the impact energy generated by the hydraulic breaker piston into rock, concrete, asphalt, slag, and other materials.

Although the chisel looks like a relatively simple component, its quality has a direct influence on:

• Breaking efficiency

• Impact energy transfer

• Hydraulic breaker stability

• Tool service life

• Front head and bushing wear

• Machine downtime

• Overall operating cost

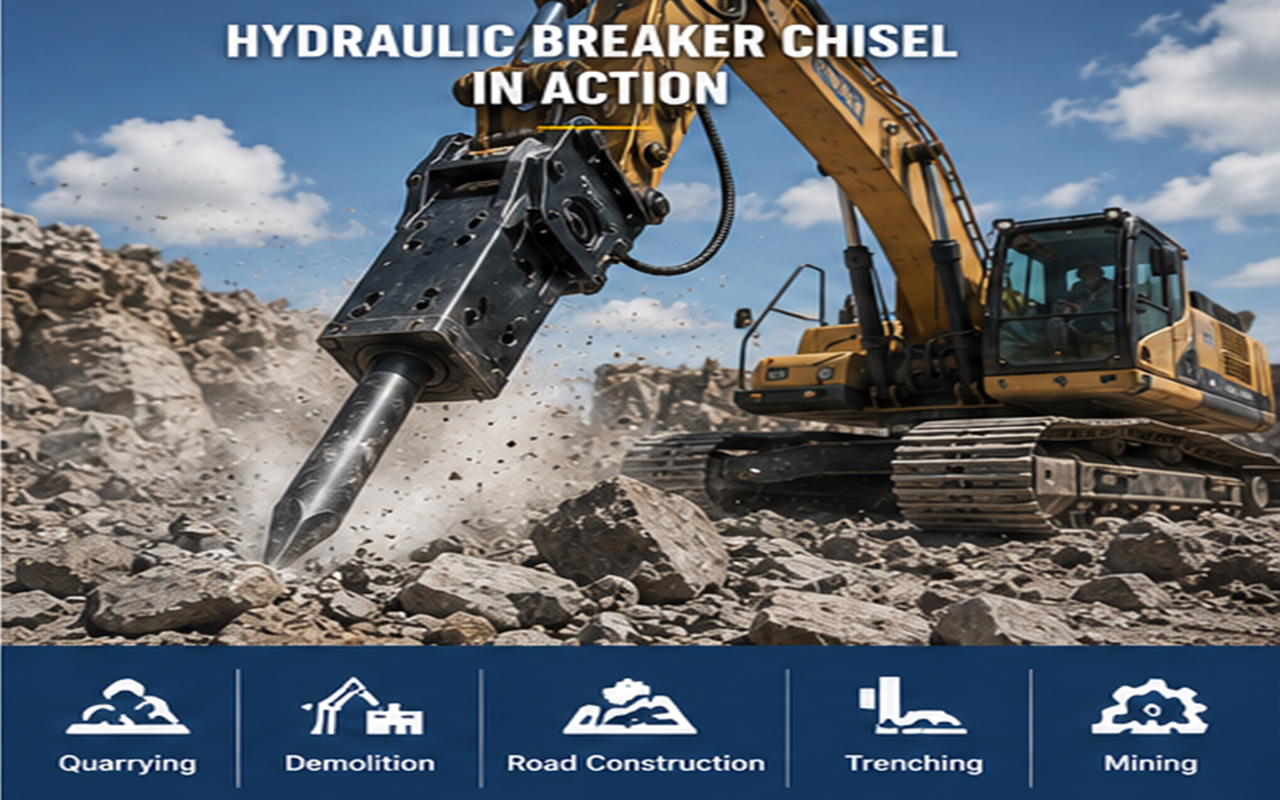

For demolition, quarrying, mining, road construction, trenching, and general excavation applications, selecting the correct hydraulic breaker chisel is therefore essential.



---

How Does a Hydraulic Breaker Chisel Work?

The operating principle is relatively straightforward.

Inside a hydraulic breaker, hydraulic pressure drives the piston. The piston repeatedly strikes the upper end of the hydraulic hammer tool, transferring impact energy through the chisel to the material being broken.

The basic energy-transfer process is:

Excavator Hydraulic System → Hydraulic Breaker → Piston → Hydraulic Breaker Chisel → Rock / Concrete

Because the chisel repeatedly receives extremely high impact loads, it must have the correct combination of:

Hardness + Toughness + Wear Resistance + Impact Resistance

A chisel that is too soft may wear quickly.

A chisel that is excessively hard but lacks toughness may crack or break under heavy impact.

This is why raw material selection, forging, machining, heat treatment, and quality control are critical when manufacturing a reliable hydraulic breaker tool.

---

What Materials Are Used for Hydraulic Breaker Chisels?

High-quality hydraulic breaker chisels are normally manufactured from selected alloy steel designed to withstand repeated high-impact loads.

The final performance does not depend only on the steel grade.

The complete manufacturing process is equally important.

A professional production process may include:

1. Raw material inspection

2. Cutting

3. Forging

4. Precision machining

5. Heat treatment

6. Surface treatment

7. Dimensional inspection

8. Hardness testing

9. Final quality inspection

10. Packing and shipment

Heat treatment is particularly important because the chisel needs a hard, wear-resistant working surface while maintaining sufficient internal toughness to resist cracking.

---

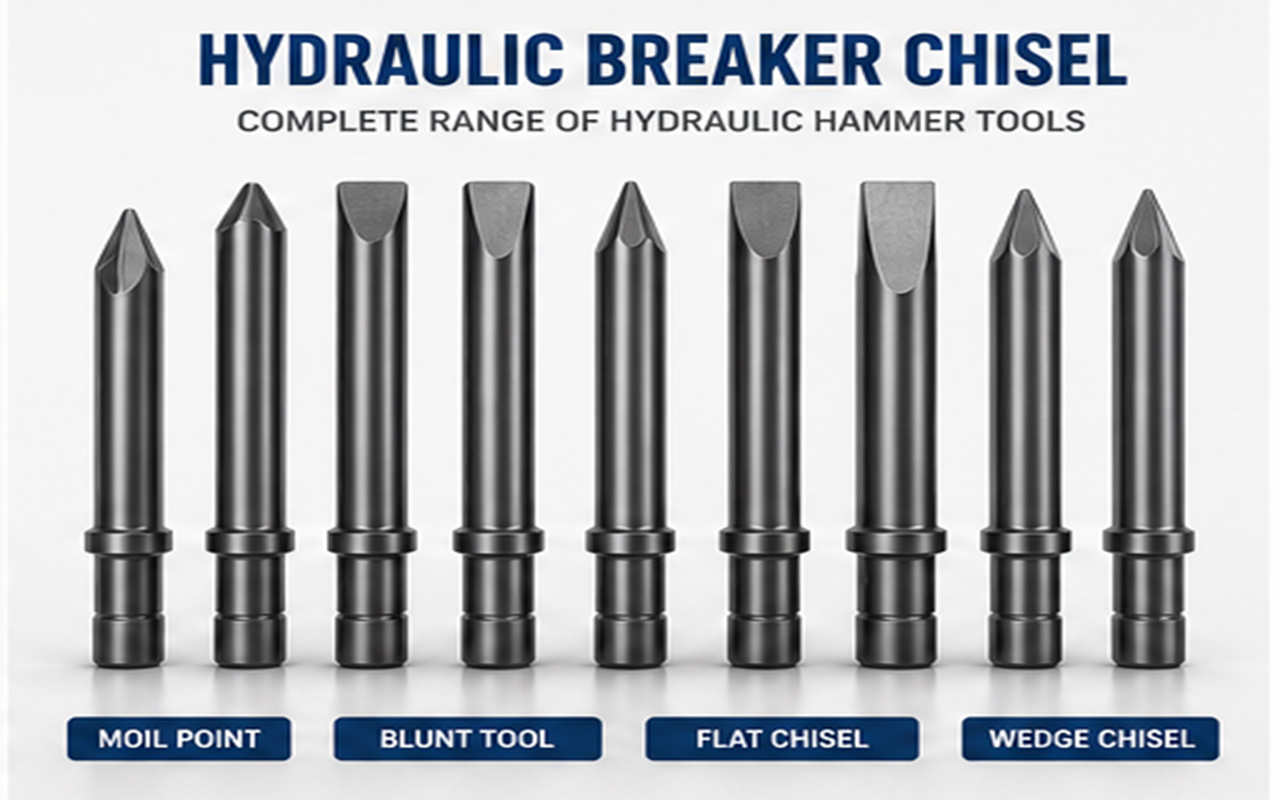

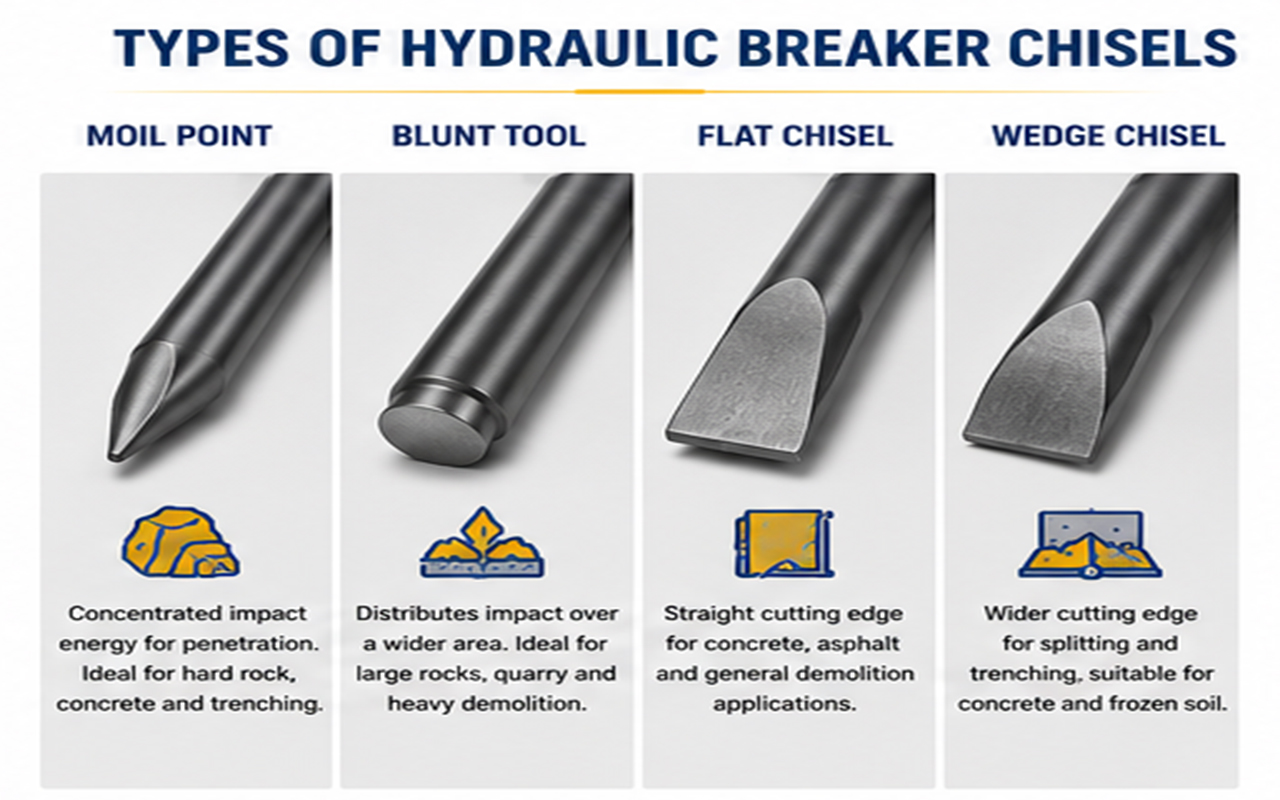

What Are the Main Types of Hydraulic Breaker Chisels?

Different working conditions require different tool shapes.

Choosing the correct hydraulic hammer tool can improve productivity and reduce unnecessary wear.

1. Moil Point

The moil point is one of the most commonly used hydraulic breaker tools.

Its pointed tip concentrates impact energy into a relatively small area.

Suitable for:

• Hard rock

• Concrete

• General demolition

• Trenching

• Breaking compact materials

Moil points are often selected when penetration is more important than creating a wide fracture line.

---

2. Blunt Tool

A blunt hydraulic breaker tool has a relatively flat working end.

Instead of concentrating the impact energy into a sharp point, it distributes impact over a larger area.

Suitable for:

• Large rocks

• Oversized boulders

• Quarry applications

• Slag

• Secondary breaking

• Heavy demolition

Blunt tools are particularly useful when the objective is to break material through impact and internal stress rather than penetration.

---

3. Flat Chisel

The flat hydraulic breaker chisel has a straight cutting edge.

It provides directional breaking action and is commonly used for:

• Concrete demolition

• Asphalt breaking

• Trenching

• Foundation removal

• Cutting applications

• General construction

The flat profile helps create a more controlled fracture direction.

---

4. Wedge Chisel

A wedge-style breaker tool provides a wider cutting edge and can be useful where controlled splitting is required.

Typical applications include:

• Trenching

• Concrete breaking

• Rock splitting

• Road construction

• Foundation work

•



---

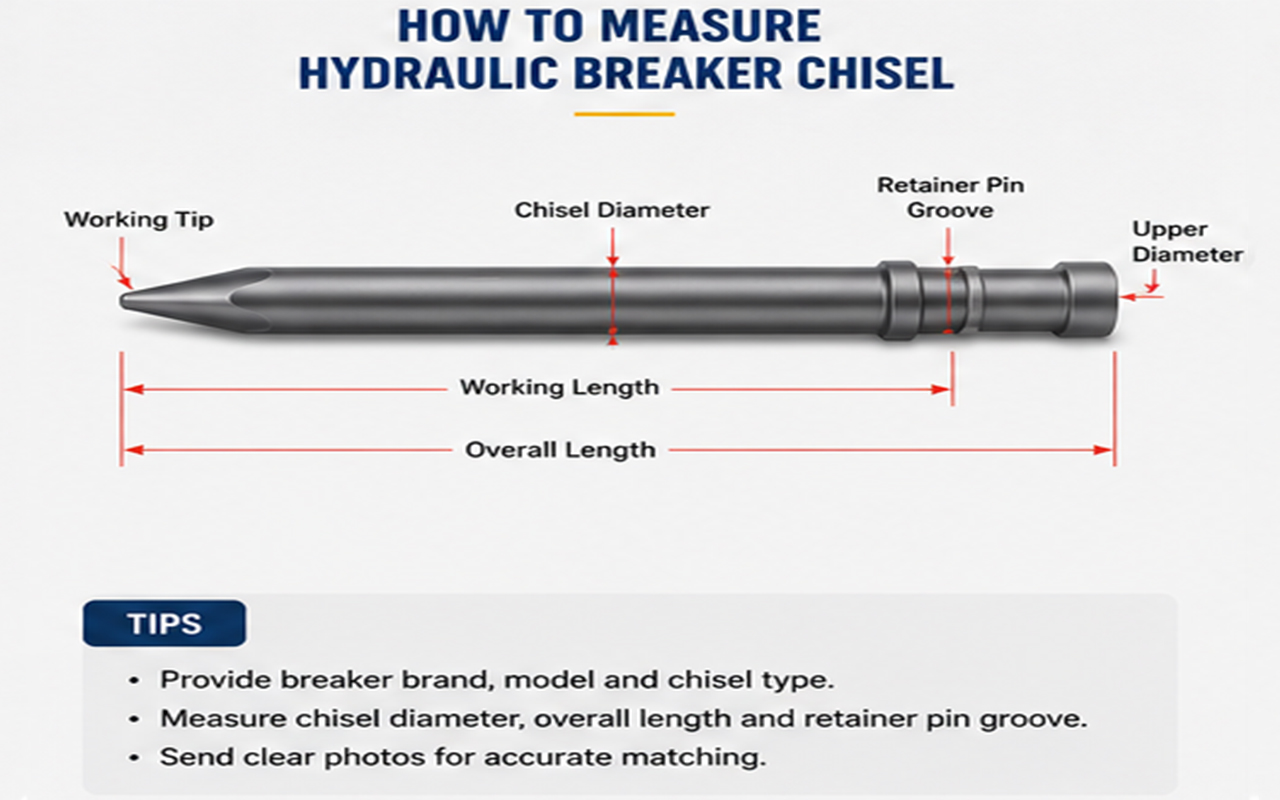

How to Choose the Right Hydraulic Breaker Chisel

The correct chisel should not be selected by appearance alone.

Before ordering a hydraulic breaker chisel replacement, several dimensions and specifications should be confirmed.

Hydraulic Breaker Brand

First identify the breaker manufacturer or compatible breaker family.

Hydraulic Breaker Model

Always provide the complete model number.

Different models from the same brand normally require different tool dimensions.

Chisel Diameter

The tool diameter is one of the most important identification parameters.

Overall Length

Two chisels may have the same diameter but different overall lengths.

Retainer Pin Groove

The position, width, and shape of the retaining-pin groove must match the hydraulic breaker.

Tool Type

Confirm whether you need:

• Moil point

• Blunt tool

• Flat chisel

• Wedge tool

• Special-purpose tool

Working Application

Tell your supplier what material will be broken.

For example:

Concrete / Hard Rock / Limestone / Granite / Asphalt / Quarry Stone / Slag

This helps determine the most appropriate tool shape.

---

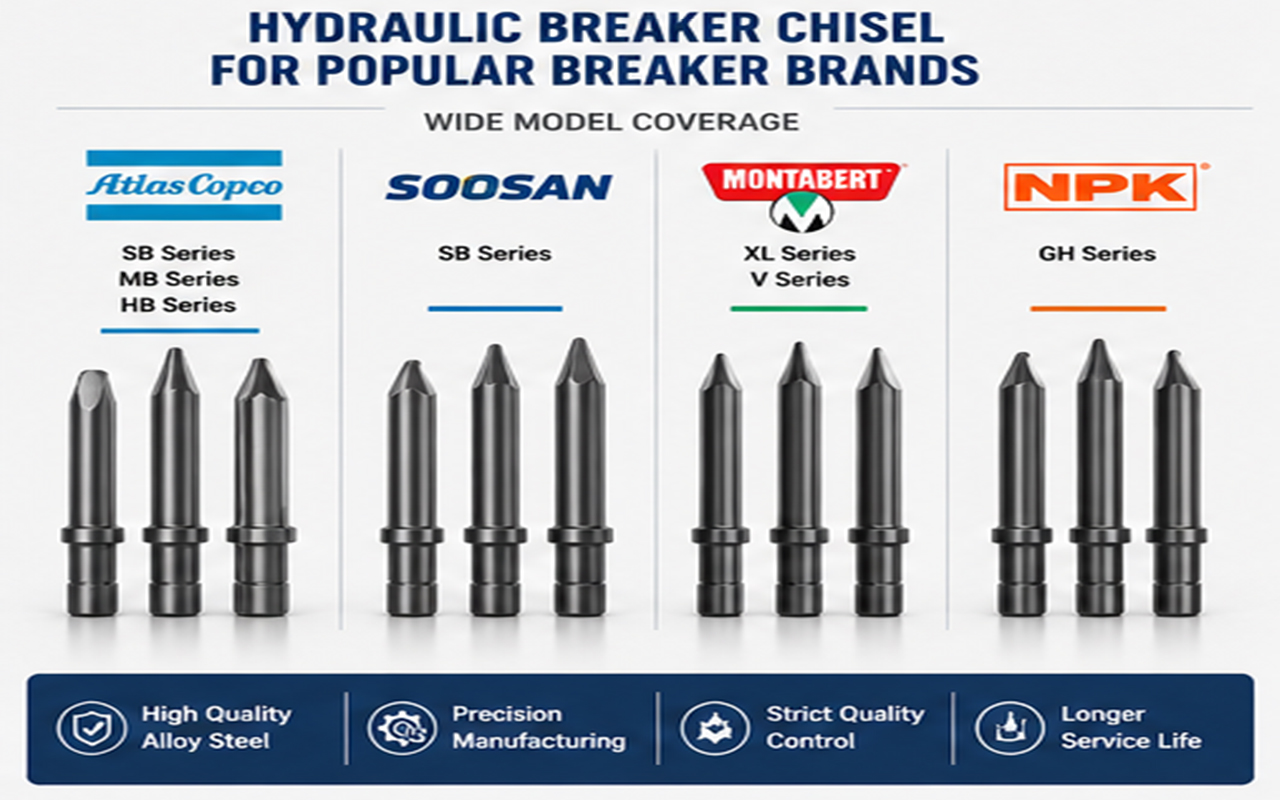

Hydraulic Breaker Chisels for Popular Breaker Brands

One of the advantages of working with an experienced hydraulic breaker chisel manufacturer is access to a large model database.

Guangzhou Huilian Machinery Co., Ltd. supplies hydraulic breaker tools and replacement parts for many commonly used hydraulic breaker brands and model families.

Below are several important examples.

---

Hydraulic Breaker Chisel for Atlas Copco Breakers

Atlas Copco hydraulic breakers have been widely used in construction, demolition, quarrying, and mining applications.

Common model families include:

SB Series

• SB 52

• SB 102

• SB 152

• SB 202

• SB 302

• SB 452

• SB 552

• SB 702

• SB 1102

MB Series

• MB 500

• MB 700

• MB 750

• MB 800

• MB 1000

• MB 1200

• MB 1500

• MB 1600

• MB 1650

• MB 1700

HB Series

• HB 2000

• HB 2200

• HB 2500

• HB 3000

• HB 3100

• HB 3600

• HB 4100

• HB 4200

• HB 4700

• HB 5800

• HB 7000

• HB 10000

When ordering an Atlas Copco breaker chisel, provide the exact breaker model because tool diameter, length, and retainer configuration can vary between different SB, MB, and HB models.

---

Hydraulic Breaker Chisel for Soosan Breakers

Soosan is another widely used hydraulic breaker family, especially in construction, quarrying, roadwork, and general excavation.

Common Soosan models include:

• SB10

• SB20

• SB30

• SB35

• SB40

• SB43

• SB45

• SB50

• SB60

• SB70

• SB81

• SB100

• SB121

• SB130

• SB140

• SB151

• SB160

• SB177

• SB200

Among these, models such as SB50, SB70, SB81, SB100, SB121, SB130, and SB151 are frequently encountered in the replacement-parts market.

For example, commonly referenced tool diameters include approximately:

Always verify the exact breaker configuration before ordering because specifications can vary by model version.





---

Hydraulic Hammer Tools for Montabert Breakers

Montabert hydraulic breakers are widely used for demolition, quarry, excavation, trenching, and heavy construction.

Common model families include the XL Range and Variable Range.

Popular examples include:

XL Range

• XL1000

• XL1300

• XL1700

• XL1900

• XL2700

Variable Range

• V32

• V47

• V57

• V67

• V6000

• V7000

Depending on the breaker model and application, different hydraulic hammer tool profiles may be available, including chisel, blunt, moil point, and other application-specific tools.

When replacing a Montabert hydraulic breaker chisel, checking the exact breaker model and original tool dimensions is recommended.

---

Hydraulic Hammer Chisels for NPK Breakers

NPK hydraulic hammers are also widely used in construction and heavy-duty breaking applications.

The GH series includes many medium and heavy hydraulic hammer models, such as:

• GH-6

• GH-9

• GH-10

• GH-12

• GH-15

• GH-18

• GH-23

• GH-30

• GH-40

• GH-50

Different models require different tool diameters.

For example, GH-series tools can range from approximately Ø106 mm to Ø214 mm, depending on breaker size.

Correct tool dimensions are essential because an incorrectly sized chisel can cause excessive bushing clearance, abnormal vibration, uneven impact loading, and accelerated wear.

---

Why Does Hydraulic Breaker Chisel Quality Matter?

The hydraulic breaker chisel is directly exposed to impact, friction, heat, dust, and abrasive materials.

Poor-quality breaker tools may create several problems.

Premature Tip Wear

Insufficient hardness can cause the working end to wear rapidly.

Chisel Cracking

Incorrect heat treatment or unsuitable material may cause cracking under repeated impact.

Tool Breakage

A broken chisel creates downtime and may also damage surrounding hydraulic breaker components.

Excessive Bushing Wear

Incorrect tool dimensions can accelerate wear of the upper and lower bushings.

Retainer Pin Damage

Incorrect groove dimensions or excessive clearance may place abnormal loads on the retainer pins.

A properly manufactured hydraulic hammer tool should therefore provide a balance between hardness, strength, dimensional accuracy, and impact toughness.

---

Why Do Hydraulic Breaker Chisels Break?

Even a high-quality chisel can fail if it is used incorrectly.

Common causes include:

Excessive Blank Firing

Blank firing creates unnecessary shock loads inside the hydraulic breaker.

Side Loading

Using the chisel as a lever can create bending forces that the tool was not designed to withstand.

Incorrect Working Angle

The hydraulic breaker should generally work with the tool properly positioned against the material.

Excessive side pressure can increase the risk of chisel fracture.

Insufficient Lubrication

The chisel and bushings require appropriate lubrication.

Poor lubrication increases friction, heat, and wear.

Excessive Bushing Clearance

Worn bushings allow the chisel to move excessively inside the front head.

This can create uneven loading.

Continuous Hammering in One Position

If material does not break after prolonged hammering, repositioning the breaker may be necessary.

Continuous impact in one location can generate excessive heat.

---

How to Extend Hydraulic Breaker Chisel Service Life

Correct operation and maintenance can significantly increase the service life of a hydraulic breaker tool.

Follow these basic practices:

1. Grease the chisel regularly.

2. Keep the breaker perpendicular to the working surface whenever possible.

3. Avoid using the chisel as a pry bar.

4. Minimize blank firing.

5. Check upper and lower bushing clearance regularly.

6. Inspect retainer pins for wear.

7. Stop operation if abnormal chisel movement is observed.

8. Select the correct tool type for the material.

9. Replace severely worn chisels before they damage other breaker components.

10. Follow the hydraulic breaker's recommended operating procedures.

---

When Should a Hydraulic Breaker Chisel Be Replaced?

A breaker chisel should be inspected regularly.

Replacement may be necessary when you notice:

• Excessive working-tip wear

• Deep cracks

• Abnormal deformation

• Severe surface damage

• Excessive wear around the retainer groove

• Significant reduction in tool diameter

• Abnormal movement inside the front head

Continuing to operate with a severely worn hydraulic hammer chisel may increase wear on the front head, bushings, retaining pins, and other hydraulic breaker parts.

---

Hydraulic Breaker Chisel Manufacturer in China

Guangzhou Huilian Machinery Co., Ltd. is a professional manufacturer and supplier specializing in hydraulic breakers, hydraulic breaker chisels, hydraulic hammer tools, and hydraulic breaker spare parts in China.

With extensive experience in the hydraulic breaker industry, we have developed a mature product database covering a wide range of breaker brands and models.

Our product range includes not only hydraulic breaker chisels, but also:

• Pistons

• Front heads

• Cylinders

• Control valves

• Seal kits

• Diaphragms

• Accumulators

• Through bolts

• Side bolts

• Upper bushings

• Lower bushings

• Retainer pins

• Stop pins

• Urethane dampers

• Charging valves

• Hydraulic breaker assemblies

This enables customers to source multiple hydraulic breaker parts from one supplier.

---

Why Choose Guangzhou Huilian Machinery Co., Ltd.?

For international buyers, choosing the right hydraulic breaker chisel supplier is not only about price.

Correct model matching, product consistency, manufacturing experience, inventory, and after-sales support are equally important.

Extensive Hydraulic Breaker Industry Experience

Our team has accumulated extensive experience in hydraulic breakers and breaker spare parts, giving us a strong understanding of different breaker structures, tool dimensions, and application requirements.

Wide Brand and Model Coverage

Our mature drawings and product database enable us to provide replacement tools for a wide range of hydraulic breaker brands and models.

Precision Manufacturing

Accurate diameter, length, groove position, and machining tolerances are important for correct installation and stable operation.

Controlled Heat Treatment

The heat-treatment process is designed to achieve a suitable balance between surface hardness, wear resistance, and internal toughness.

Multiple Chisel Types

We can supply different hydraulic hammer tool configurations, including:

• Moil point

• Blunt

• Flat chisel

• Wedge

• Customized tools for selected applications

OEM & ODM Support

OEM and ODM services are available for distributors, hydraulic breaker repair companies, equipment dealers, and aftermarket parts suppliers.

Large Product Range

In addition to chisels, customers can source a complete range of hydraulic breaker replacement parts.

Inventory & Fast Delivery

Regular models can be prepared efficiently, helping customers reduce equipment downtime and inventory pressure.

Technical Matching Support

Customers can send breaker models, tool dimensions, photos, or original part information for compatibility checking.

Export Experience

Our products serve customers in multiple international markets, allowing us to understand the requirements of distributors, repair companies, contractors, and equipment-parts importers.

---

How to Order the Correct Hydraulic Breaker Chisel

To reduce the risk of incorrect ordering, send the following information:

Hydraulic Breaker Brand + Breaker Model + Chisel Diameter + Overall Length + Chisel Type + Photos

If the breaker model cannot be identified, provide:

• Chisel diameter

• Overall length

• Upper-end diameter

• Retainer groove dimensions

• Retainer groove position

• Tip shape

• Clear photos of the old chisel

With these measurements, our team can compare the tool with our product database and help identify a suitable replacement.





---

Frequently Asked Questions About Hydraulic Breaker Chisels

What is another name for a hydraulic breaker chisel?

A hydraulic breaker chisel may also be called a hydraulic hammer tool, hydraulic breaker tool, hammer chisel, breaker point, rock breaker tool, moil point, or excavator breaker chisel.

What is the best material for a hydraulic breaker chisel?

High-quality alloy steel combined with an appropriate forging and heat-treatment process is commonly used. The exact performance depends not only on material grade but also on manufacturing and heat-treatment quality.

How do I know which chisel fits my hydraulic breaker?

Provide the breaker brand, model, chisel diameter, overall length, retainer groove dimensions, and photos.

What is the difference between a moil point and a blunt tool?

A moil point concentrates impact energy into a small area for penetration, while a blunt tool distributes impact over a wider surface and is commonly used for large rocks and secondary breaking.

Why does my hydraulic breaker chisel keep breaking?

Possible causes include side loading, blank firing, worn bushings, poor lubrication, incorrect working angle, improper tool selection, or material/heat-treatment problems.

How often should a hydraulic breaker chisel be greased?

Greasing frequency depends on the breaker model, working environment, and operating conditions. Follow the breaker manufacturer's lubrication recommendations and increase inspection frequency in dusty or severe applications.

Can you manufacture customized hydraulic breaker chisels?

Customized tool dimensions and configurations can be produced for suitable applications based on drawings, dimensions, samples, and order requirements.

Do you supply chisels for Atlas Copco, Soosan, Montabert and NPK hydraulic breakers?

Yes. Guangzhou Huilian Machinery Co., Ltd. supplies replacement hydraulic breaker chisels and hydraulic hammer tools compatible with many commonly used breaker models. Always provide the exact model and tool dimensions for final compatibility confirmation.

---

Looking for a Reliable Hydraulic Breaker Chisel Supplier?

The hydraulic breaker chisel is a relatively simple-looking component, but its material quality, heat treatment, dimensional accuracy, and tool design can have a major impact on breaker performance and operating cost.

Guangzhou Huilian Machinery Co., Ltd. provides hydraulic breaker chisels, hydraulic hammer tools, hydraulic breakers, and breaker spare parts for distributors, repair companies, contractors, and equipment-parts suppliers worldwide.

Whether you need a single replacement tool or bulk quantities for aftermarket distribution, our team can assist with model identification, dimensional confirmation, production, and supply.

Send Us:

Breaker Brand + Model + Chisel Diameter + Length + Tool Type + Quantity

We can help identify the correct hydraulic breaker chisel for your application.

---

Conclusion

Choosing the correct hydraulic breaker chisel or hydraulic hammer tool is essential for efficient rock breaking, concrete demolition, quarrying, mining, road construction, and excavation work.

The right tool should match the hydraulic breaker precisely and provide a suitable balance of hardness, toughness, wear resistance, dimensional accuracy, and impact resistance.

Different applications may require a moil point, blunt tool, flat chisel, or wedge tool, while different breaker models require different diameters, lengths, and retaining-groove configurations.

Guangzhou Huilian Machinery Co., Ltd. combines extensive hydraulic breaker industry experience, a mature model database, precision manufacturing, OEM/ODM capability, broad product coverage, inventory support, and international supply experience to provide reliable hydraulic breaker replacement solutions.

For your next hydraulic breaker chisel inquiry, send us the breaker brand, model, chisel dimensions, photos, and required quantity for compatibility checking and quotation.
