Atlas Copco HB5800 Tool Chisel for Hydraulic Breaker Hammer

HUILIAN replacement chisel for Atlas Copco HB5800, 200 mm reference shank

HUILIAN supplies replacement tool chisels for Atlas Copco HB5800 hydraulic breaker enquiries. For HB5800, the reference drawing shows a 200 mm shank and a 410 mm axial retaining profile, the longest profile reference among the five supplied HB-series drawings. This makes the complete axial measurement a useful purchase check in addition to tool diameter. Send the model plate, serial number, old tool photos, required working tip and overall length for a quotation.

Brand Name
Huilian
Part Name
Tool Chisel / hydraulic breaker working tool
Suitable for Breaker Brand
Atlas Copco
Breaker Model
HB5800 — 200 mm reference shank; confirm version
Related Parts
tool retainer, bushings, dust seal and piston
Position
Working tool retained in the breaker tool guide
Get a free quote
Details
Shipping Policy
Technical Service
After-Sales Guarantee

Atlas Copco HB5800 Tool Chisel for Hydraulic Breaker Hammer

For HB5800, the reference drawing shows a 200 mm shank and a 410 mm axial retaining profile, the longest profile reference among the five supplied HB-series drawings. This makes the complete axial measurement a useful purchase check in addition to tool diameter.

200 mm HB5800 Interface with a 410 mm Axial Profile

  • Model-specific selection: The 410 mm profile reference distinguishes the HB5800 layout from HB4200 and HB7000; a larger model number does not mean the same retention geometry.
  • Complete rear-profile identification: The 161 mm rear reference, 410 mm axial reference and 135 mm recess section give independent checks for the pictured HB5800 arrangement. Together with the 200 mm diameter, they make a clearer order specification than a single nominal tool size.
  • Clear maintenance enquiry: A model-labelled drawing supports HB5800 maintenance purchasing. The rear-end profile can be compared with old-tool photos before the working-tip design and overall length are selected.

Product Specifications and Identification

Specification Details
Supplier brand HUILIAN replacement part
Intended breaker model Atlas Copco HB5800
Part name Hydraulic breaker tool chisel; selected working tip to be confirmed
Assembly position Working tool retained in the breaker tool guide
Reference shank diameter 200 mm, as marked in the supplied drawing
Rear-end reference shown 161 mm
Axial retaining-profile reference shown 410 mm
Section height at the retaining recess shown 135 mm
Overall length and selected tip Confirm with the old tool and required application; not fully specified by this shank drawing
Part identification Send model plate, serial number, old tool reference and measured rear-end profile
Ordering details Quantity, destination, price, material specification, availability, lead time and packing confirmed in the quotation

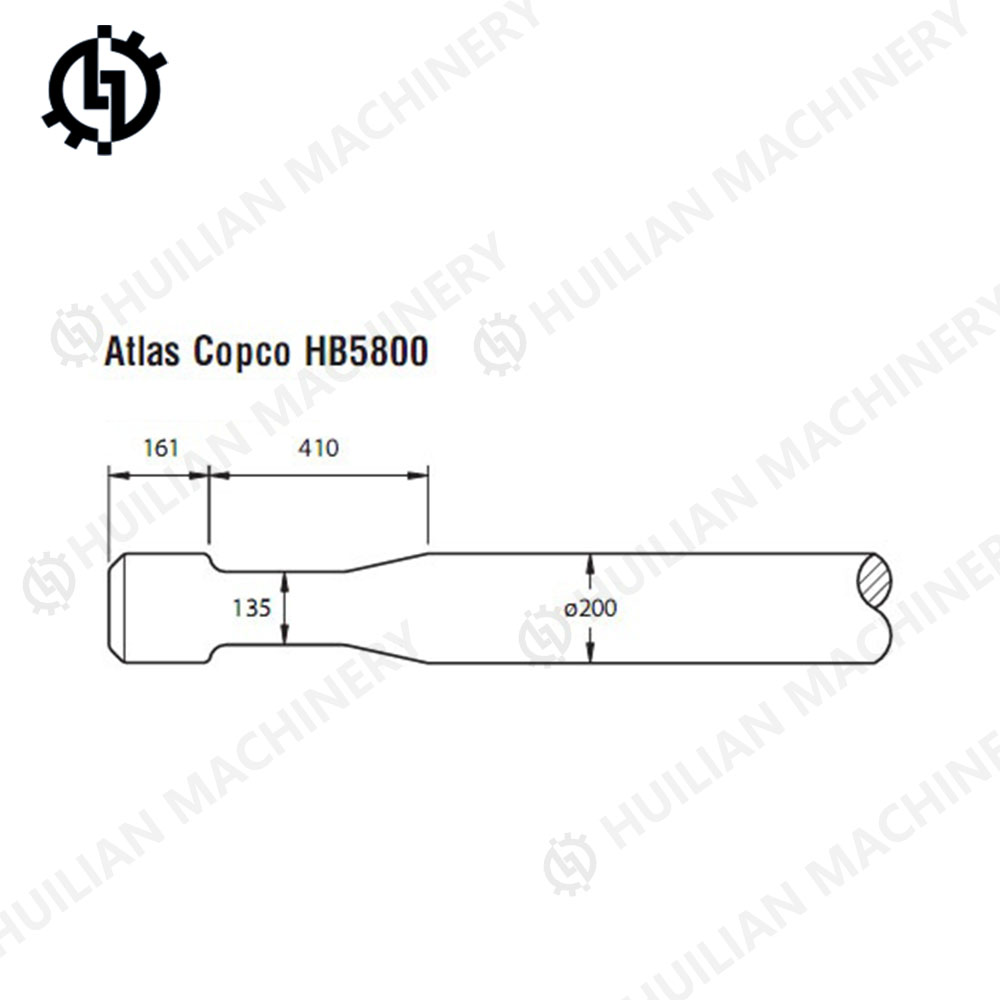

Atlas Copco HB5800 Shank Drawing

Dimensions are reference callouts from the supplied drawing, in mm. Confirm the complete manufacturing drawing and tolerances against an unworn tool. The illustration identifies the shank profile; it does not establish a complete tool length or selected working tip.

Hydraulic breaker working-tip examples; confirm the selected Atlas Copco HB5800 tool design

Atlas Copco HB5800 Spare Parts and Part Numbers

Component Identification for Quotation
Tool Chisel Match the 200 mm reference section and complete HB5800 rear profile; send the old tool number and measurements
Related HB5800 parts tool retainer, bushings, dust seal and piston; identify each assembly and part reference separately

Fitment and Ordering Checklist for HB5800

The 410 mm profile reference distinguishes the HB5800 layout from HB4200 and HB7000; a larger model number does not mean the same retention geometry.

  1. Send the Atlas Copco HB5800 model plate, serial number, old-tool reference and installed-position photos.
  2. Compare 200 mm shank, 161 mm rear reference, 410 mm axial retaining-profile reference and 135 mm section at the recess.
  3. Check the retaining-profile orientation, tip design and required overall length. A matching diameter does not confirm the complete interface.
  4. Inspect the tool-guide bushings and retainer, and send their dimensions if additional replacement parts are required.
  5. Confirm the manufacturing drawing, selected working end, quantity, destination and supplied packing list in the quotation.
