Atlas Copco HBC6000 Tool Chisel for Hydraulic Breaker Hammer
HUILIAN supplies replacement tool chisels for Atlas Copco HBC6000 hydraulic breaker enquiries. HBC6000 is the largest outer tool section in the supplied HBC drawings, at 170 mm. The 216 mm axial reference and 130 mm rear reference provide a distinct retention layout for this model rather than an enlarged copy of the smaller HBC profiles. Send the model plate, serial number, old tool photos, required working tip and overall length for a quotation.
Atlas Copco HBC6000 Tool Chisel for Hydraulic Breaker Hammer
HBC6000 is the largest outer tool section in the supplied HBC drawings, at 170 mm. The 216 mm axial reference and 130 mm rear reference provide a distinct retention layout for this model rather than an enlarged copy of the smaller HBC profiles.
170 mm HBC6000 Shank with a 216 mm Retaining Profile
- Model-specific selection: The 120 mm recess section is a useful workshop check for separating HBC6000 tools from the 95 mm recess section shown for HBC4000.
- Complete rear-profile identification: The 130 mm rear reference, 216 mm axial reference and 120 mm recess section give independent checks for the pictured HBC6000 arrangement. Together with the 170 mm diameter, they make a clearer order specification than a single nominal tool size.
- Clear maintenance enquiry: A model-labelled drawing supports HBC6000 maintenance purchasing. The rear-end profile can be compared with old-tool photos before the working-tip design and overall length are selected.
Product Specifications and Identification
| Specification | Details |
|---|---|
| Supplier brand | HUILIAN replacement part |
| Intended breaker model | Atlas Copco HBC6000 |
| Part name | Hydraulic breaker tool chisel; selected working tip to be confirmed |
| Assembly position | Working tool retained in the breaker tool guide |
| Reference shank diameter | 170 mm, as marked in the supplied drawing |
| Rear-end reference shown | 130 mm |
| Axial retaining-profile reference shown | 216 mm |
| Section height at the retaining recess shown | 120 mm |
| Overall length and selected tip | Confirm with the old tool and required application; not fully specified by this shank drawing |
| Part identification | Send model plate, serial number, old tool reference and measured rear-end profile |
| Ordering details | Quantity, destination, price, material specification, availability, lead time and packing confirmed in the quotation |

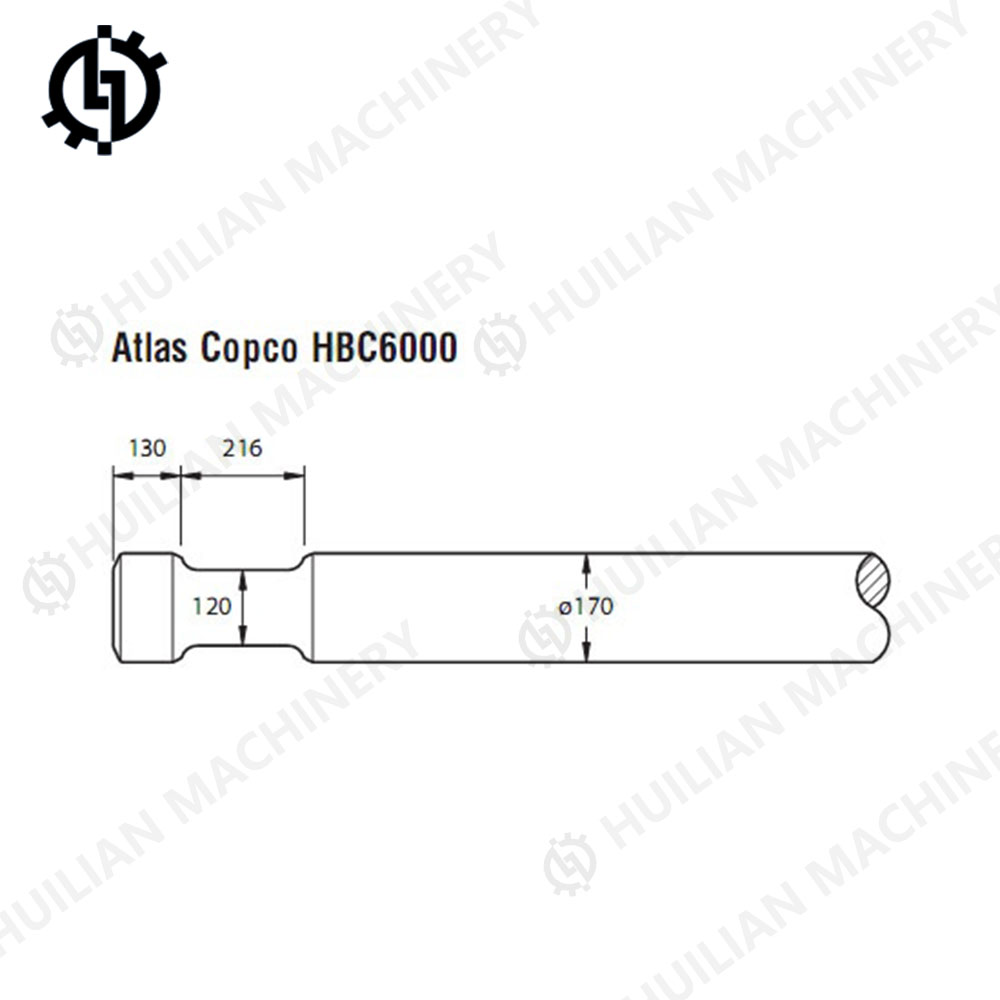

Atlas Copco HBC6000 Shank Drawing
Dimensions are reference callouts from the supplied drawing, in mm. Confirm the complete manufacturing drawing and tolerances against an unworn tool. The illustration identifies the shank profile; it does not establish a complete tool length or selected working tip.

Atlas Copco HBC6000 Spare Parts and Part Numbers
| Component | Identification for Quotation |
|---|---|
| Tool Chisel | Match the 170 mm reference section and complete HBC6000 rear profile; send the old tool number and measurements |
| Related HBC6000 parts | tool retainer, bushings, dust seal and piston; identify each assembly and part reference separately |
Fitment and Ordering Checklist for HBC6000
The 120 mm recess section is a useful workshop check for separating HBC6000 tools from the 95 mm recess section shown for HBC4000.
- Send the Atlas Copco HBC6000 model plate, serial number, old-tool reference and installed-position photos.
- Compare 170 mm shank, 130 mm rear reference, 216 mm axial retaining-profile reference and 120 mm section at the recess.
- Check the retaining-profile orientation, tip design and required overall length. A matching diameter does not confirm the complete interface.
- Inspect the tool-guide bushings and retainer, and send their dimensions if additional replacement parts are required.
- Confirm the manufacturing drawing, selected working end, quantity, destination and supplied packing list in the quotation.
Related Atlas Copco HBC6000 Spare Parts
For a HBC6000 maintenance enquiry, request tool retainers, upper and lower bushings, dust seals and pistons as separate identified items. The quotation confirms each assembly, quantity and selected specification.
Other Hydraulic Breaker Hammer Spare Parts of Our Factory
atlas copco Hydraulic Breaker Model:
SB50 SB52 SB100 SB102 SB150 SB152 SB200 SB202 SB300 SB450 SB452 SB552 SBC115 SBC225 SBC410 SBC610 SBC650 SBC800 SBC850 HB2000 HB2200 HB2500 HB3000 HB3100 HB3600 HB4100/4200 HB4700 HB5800 HB7000 HBC1100 HBC1700 HBC2500 HBC4000 HBC6000 PB110 PB160 PB210 PB310 PB420 PB530 MB500 MB700/750 MB800 MB1000 MB1200 MB1500 MB1600 MB1700 EC100T EC120T EC135T EC140T EC155T EC40T EC50T EC60T EC70T EC80T
Our factory can manufacture the hydraulic breaker spare parts listed below. Send the breaker model, old part number or drawing, quantity and material requirements for confirmation of the manufacturing specification and quotation.
| Part Type | Part Type | Part Type | Part Type |
|---|---|---|---|
| Back Head | Front Head | Breaker Cylinder | Through Bolt/Tie Rod |
| Seal Kit | Diaphragm/Membrane | Rod Pin | Stop Pin |
| Upper Bushing/Inner Bush/Chisel Bush | Accumulator | Sleeve Valve | Piston Ring |
| Chisel/Tool | Thrust Ring | Moil Chisel | Piston |
| V-Wedge Chisel | Universal Chisel | Flat Chisel | Damper/Shock Absorber |
| H-Wedge Chisel | Lower Bushing/Outer Bush/Front Cover | Rubber Pad | Side Bolt |
| Charging Valve | N2 Gas Charging Kit | Gas Bottle | Lock Pin |

Frequently Asked Questions
What distinguishes the Atlas Copco HBC6000 tool chisel?
HBC6000 is the largest outer tool section in the supplied HBC drawings, at 170 mm. The 216 mm axial reference and 130 mm rear reference provide a distinct retention layout for this model rather than an enlarged copy of the smaller HBC profiles. The 120 mm recess section is a useful workshop check for separating HBC6000 tools from the 95 mm recess section shown for HBC4000.
Which dimensions are needed for a HBC6000 replacement?
The supplied drawing shows 170 mm shank, 130 mm rear reference, 216 mm axial retaining-profile reference and 120 mm section at the recess. Measure an unworn sample and confirm the exact manufacturing dimensions and tolerances. Also send overall length, groove orientation, old tool reference and breaker serial number.
Does the HBC6000 drawing specify the supplied working tip?
The HBC6000 image shows shank and retaining geometry, not a complete working tip or total tool length. Request the required moil, cone, wedge or blunt design and overall length separately. Confirm the selected tool design against the application and original interface.
Can I order related Atlas Copco HBC6000 spare parts?
Enquire about HBC6000 tool retainers, upper and lower bushings, dust seals and pistons. Provide each old part reference, quantity and assembly version separately. Check tool-guide and retainer condition when identifying a replacement chisel.
Request a Quote
Send your Atlas Copco HBC6000 model plate, old chisel reference, measured rear-end dimensions, required working tip and overall length, quantity and destination. HUILIAN will confirm the HBC6000 replacement specification and quotation.
