Atlas Copco SB102 Diaphragm for Hydraulic Breaker
HUILIAN replacement diaphragm for Atlas Copco SB102 hydraulic breaker enquiries. The diaphragm separates the chambers in the breaker accumulator. Match the membrane profile, rim and seating arrangement to the existing accumulator. Confirm the individual diaphragm specification and any additional seals required for the repair. Send the old part number, model plate, photos and dimensions for a quotation.
Atlas Copco SB102 Diaphragm
HUILIAN supplies replacement diaphragm parts for Atlas Copco SB102 hydraulic breaker enquiries. The diaphragm separates the chambers in the breaker accumulator. Match the membrane profile, rim and seating arrangement to the existing accumulator. Confirm the individual diaphragm specification and any additional seals required for the repair.
Product Specifications and Identification
| Specification | Details |
|---|---|
| Supplier brand | HUILIAN replacement part |
| Intended breaker model | Atlas Copco SB102 |
| Part name | Diaphragm / accumulator membrane / breaker rubber diaphragm |
| Assembly position | Accumulator membrane position; confirm the accumulator design |
| Part identification | Provide the old part number, breaker serial number and dimensions to identify the required replacement specification. |
| Measurements to provide | outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number |
| Ordering details | Send quantity and destination. Price, availability, lead time, packing and supplied components are confirmed in the quotation. |

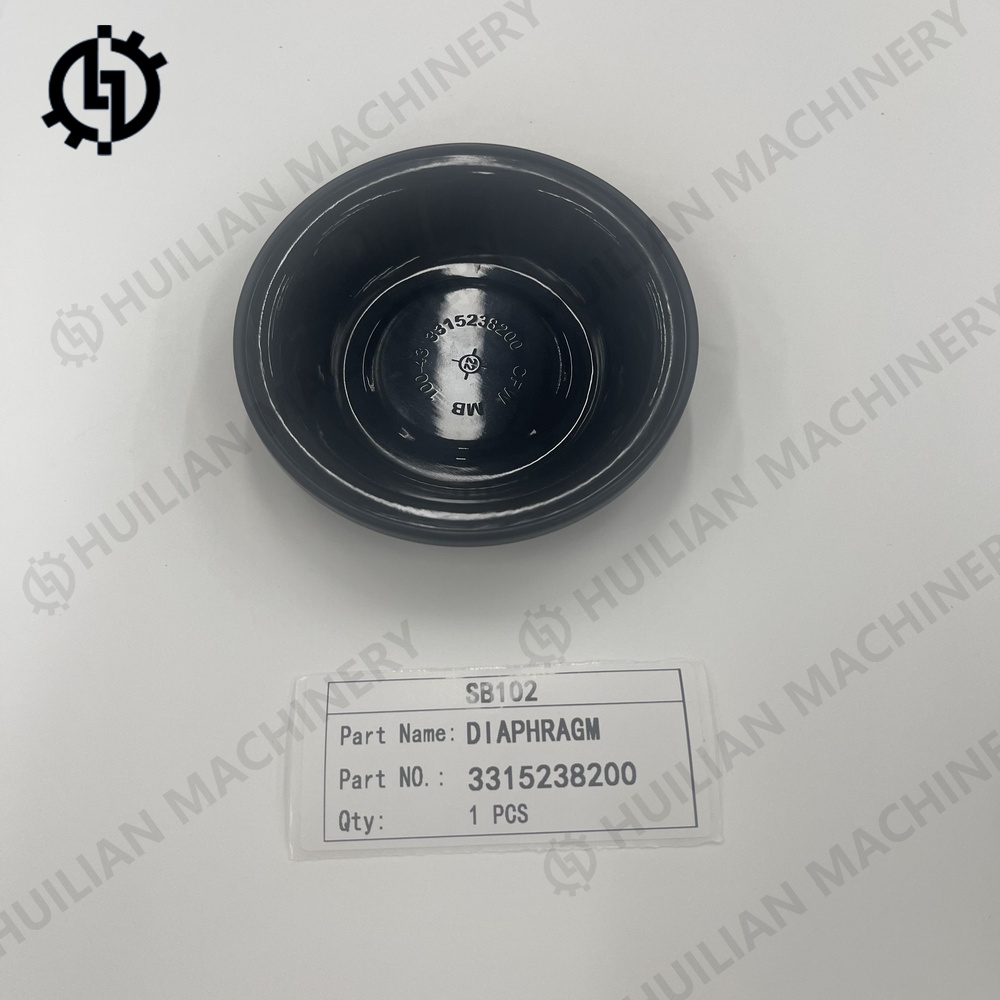

Product Photos



Atlas Copco SB102 Spare Parts and Part Numbers
Match each reference to the stated model, serial number and assembly version. Kit references identify complete packages; confirm individual component numbers and the replacement packing list separately.
| Component or Package | Part Reference | Version and Ordering Check |
|---|---|---|
| Seal kit | 3315 3335 90 | Until serial number 149350 |
| Seal kit | 3382 0702 08 | From serial number 149351 |
| Accumulator repair kit | 3315 2997 90 | Until serial number 149350; later kit 3382 0702 09 |
Fitment and Ordering Checklist
- Send the Atlas Copco SB102 model plate, serial number, old-part photos and installed-position photos.
- Measure outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number.
- The accumulator repair kit reference identifies a complete repair package. It must not be used as an individual diaphragm part number. Confirm the membrane separately against the removed part.
- Specify quantity and destination. Confirm the selected components, dimensions and packing list in the quotation.
Related Atlas Copco SB102 Spare Parts
For a maintenance order, enquire about accumulator cover, accumulator seals, seal kit and fastening components. Each component is supplied separately unless the quotation specifies a set.
Other Hydraulic Breaker Hammer Spare Parts of Our Factory
Our factory can manufacture the hydraulic breaker spare parts listed below. Send your breaker model, part number or drawing, required quantity and material requirements so we can confirm the manufacturing specification and quotation.
| Part Type | Part Type | Part Type | Part Type |
|---|---|---|---|
| Back Head | Front Head | Breaker Cylinder | Through Bolt/Tie Rod |
| Seal Kit | Diaphragm/Membrane | Rod Pin | Stop Pin |
| Upper Bushing/Inner Bush/Chisel Bush | Accumulator | Sleeve Valve | Piston Ring |
| Chisel/Tool | Thrust Ring | Moil Chisel | Piston |
| V-Wedge Chisel | Universal Chisel | Flat Chisel | Damper/Shock Absorber |
| H-Wedge Chisel | Lower Bushing/Outer Bush/Front Cover | Rubber Pad | Side Bolt |
| Charging Valve | N2 Gas Charging Kit | Gas Bottle | Lock Pin |

Frequently Asked Questions
How do I order an Atlas Copco SB102 diaphragm?
Provide the old part number, breaker serial number and dimensions to identify the required replacement specification. Send old-part photos, outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number, quantity and destination for a quotation.
Which measurements are needed for the SB102 diaphragm?
Please provide outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number. The accumulator repair kit reference identifies a complete repair package. It must not be used as an individual diaphragm part number. Confirm the membrane separately against the removed part.
Can I include other SB102 spare parts in the order?
You can enquire about accumulator cover, accumulator seals, seal kit and fastening components. Identify each component and quantity separately. The quotation confirms the parts and packing list supplied.
Who supplies this Atlas Copco SB102 replacement part?
HUILIAN supplies this replacement part for the stated Atlas Copco model. Confirm the selected specification against the old part and breaker configuration before ordering.
Request a Quote
Send the Atlas Copco SB102 model plate, old diaphragm photos, dimensions, part number where available, quantity and destination. HUILIAN will confirm the replacement specification and quotation.
