Atlas Copco SB202 Diaphragm for Hydraulic Breaker

HUILIAN replacement diaphragm for Atlas Copco SB202

HUILIAN replacement diaphragm for Atlas Copco SB202 hydraulic breaker enquiries. The diaphragm separates the chambers in the breaker accumulator. Match the membrane profile, rim and seating arrangement to the existing accumulator. Confirm the individual diaphragm specification and any additional seals required for the repair. Send the old part number, model plate, photos and dimensions for a quotation.

Brand Name
Huilian
Part Name
Diaphragm / accumulator membrane / breaker rubber diaphragm
Suitable for Breaker Brand
Atlas Copco
Breaker Model
SB202 — confirm serial number and configuration
Related Parts
accumulator cover, accumulator seals, seal kit and fastening components
Position
Accumulator membrane position; confirm the accumulator design
Get a free quote
Details
Shipping Policy
Technical Service
After-Sales Guarantee

Atlas Copco SB202 Diaphragm

HUILIAN supplies replacement diaphragm parts for Atlas Copco SB202 hydraulic breaker enquiries. The diaphragm separates the chambers in the breaker accumulator. Match the membrane profile, rim and seating arrangement to the existing accumulator. Confirm the individual diaphragm specification and any additional seals required for the repair.

Product Specifications and Identification

Specification Details
Supplier brand HUILIAN replacement part
Intended breaker model Atlas Copco SB202
Part name Diaphragm / accumulator membrane / breaker rubber diaphragm
Assembly position Accumulator membrane position; confirm the accumulator design
Part identification Provide the old part number, breaker serial number and dimensions to identify the required replacement specification.
Measurements to provide outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number
Ordering details Send quantity and destination. Price, availability, lead time, packing and supplied components are confirmed in the quotation.

Product Photos

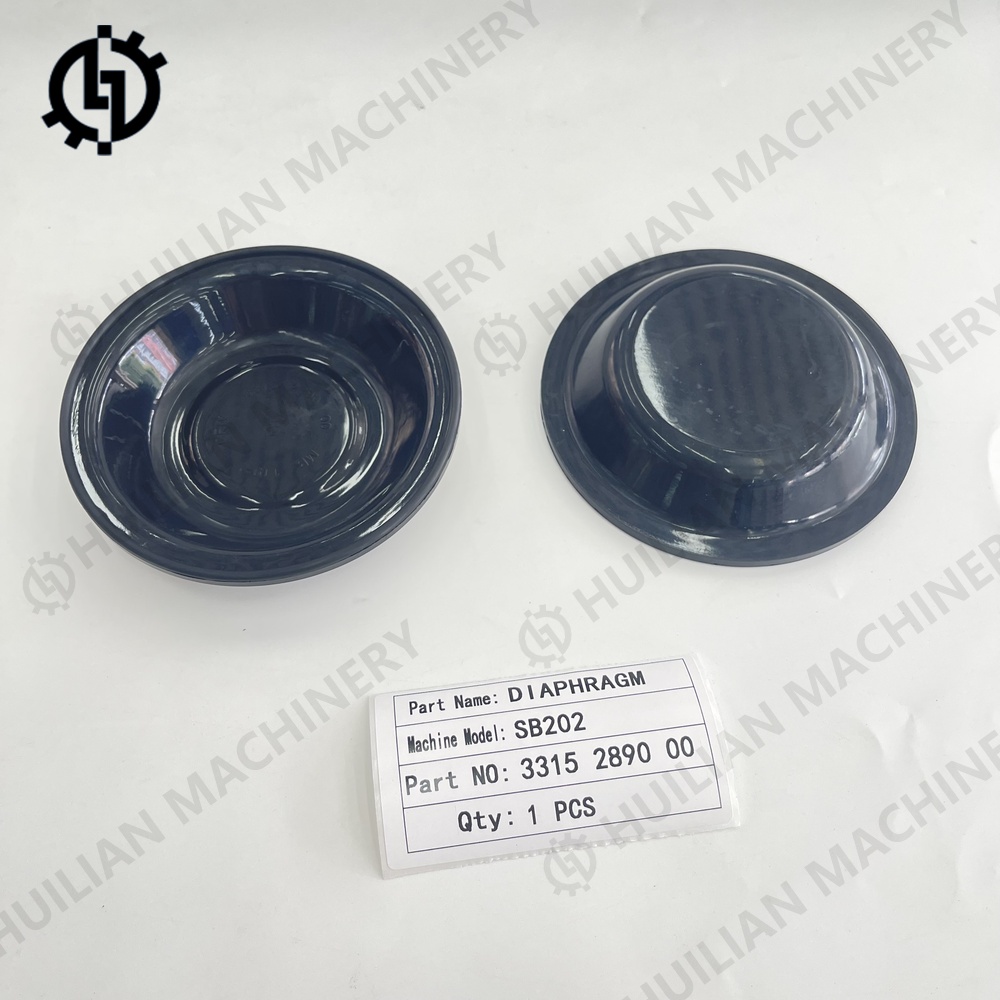

Atlas Copco SB202 diaphragm HUILIAN replacement part view 1

Atlas Copco SB202 diaphragm HUILIAN replacement part view 2

Atlas Copco SB202 diaphragm HUILIAN replacement part view 3

Atlas Copco SB202 Spare Parts and Part Numbers

Match each reference to the stated model, serial number and assembly version. Kit references identify complete packages; confirm individual component numbers and the replacement packing list separately.

Component or Package Part Reference Version and Ordering Check
Seal kit 3382 0700 79 Standard; confirm serial number and configuration
Accumulator repair kit 3382 0700 78 Complete kit reference; not the individual diaphragm number

Fitment and Ordering Checklist

  1. Send the Atlas Copco SB202 model plate, serial number, old-part photos and installed-position photos.
  2. Measure outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number.
  3. The accumulator repair kit reference identifies a complete repair package. It must not be used as an individual diaphragm part number. Confirm the membrane separately against the removed part.
  4. Specify quantity and destination. Confirm the selected components, dimensions and packing list in the quotation.

Related Atlas Copco SB202 Spare Parts

For a maintenance order, enquire about accumulator cover, accumulator seals, seal kit and fastening components. Each component is supplied separately unless the quotation specifies a set.

Other Hydraulic Breaker Hammer Spare Parts of Our Factory

Our factory can manufacture the hydraulic breaker spare parts listed below. Send your breaker model, part number or drawing, required quantity and material requirements so we can confirm the manufacturing specification and quotation.

Part Type Part Type Part Type Part Type
Back Head Front Head Breaker Cylinder Through Bolt/Tie Rod
Seal Kit Diaphragm/Membrane Rod Pin Stop Pin
Upper Bushing/Inner Bush/Chisel Bush Accumulator Sleeve Valve Piston Ring
Chisel/Tool Thrust Ring Moil Chisel Piston
V-Wedge Chisel Universal Chisel Flat Chisel Damper/Shock Absorber
H-Wedge Chisel Lower Bushing/Outer Bush/Front Cover Rubber Pad Side Bolt
Charging Valve N2 Gas Charging Kit Gas Bottle Lock Pin

HUILIAN factory hydraulic breaker spare parts range

Frequently Asked Questions

How do I order an Atlas Copco SB202 diaphragm?

Provide the old part number, breaker serial number and dimensions to identify the required replacement specification. Send old-part photos, outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number, quantity and destination for a quotation.

Which measurements are needed for the SB202 diaphragm?

Please provide outside diameter, rim diameter and thickness, overall height, recess profile and the old diaphragm number. The accumulator repair kit reference identifies a complete repair package. It must not be used as an individual diaphragm part number. Confirm the membrane separately against the removed part.

Can I include other SB202 spare parts in the order?

You can enquire about accumulator cover, accumulator seals, seal kit and fastening components. Identify each component and quantity separately. The quotation confirms the parts and packing list supplied.

Who supplies this Atlas Copco SB202 replacement part?

HUILIAN supplies this replacement part for the stated Atlas Copco model. Confirm the selected specification against the old part and breaker configuration before ordering.

Request a Quote

Send the Atlas Copco SB202 model plate, old diaphragm photos, dimensions, part number where available, quantity and destination. HUILIAN will confirm the replacement specification and quotation.
