Atlas Copco SB50 Tool Chisel for Hydraulic Breaker Hammer

HUILIAN replacement chisel for Atlas Copco SB50, 32 mm reference shank

HUILIAN supplies replacement tool chisels for Atlas Copco SB50 hydraulic breaker enquiries. SB50 is pictured with a 32 mm tool section, a 48 mm collar and a 166 mm rear-to-collar reference. The compact collar arrangement is the main ordering feature, and its 21 mm recess section should be checked alongside the diameter. Send the model plate, serial number, old tool photos, required working tip and overall length for a quotation.

Brand Name
Huilian
Part Name
Tool Chisel / hydraulic breaker working tool
Suitable for Breaker Brand
Atlas Copco
Breaker Model
SB50 — 32 mm reference shank; confirm version
Related Parts
tool retainer, bushings, dust seal and piston
Position
Working tool retained in the breaker tool guide
Get a free quote
Details
Shipping Policy
Technical Service
After-Sales Guarantee

Atlas Copco SB50 Tool Chisel for Hydraulic Breaker Hammer

SB50 is pictured with a 32 mm tool section, a 48 mm collar and a 166 mm rear-to-collar reference. The compact collar arrangement is the main ordering feature, and its 21 mm recess section should be checked alongside the diameter.

Compact SB50 Collar Profile with a 32 mm Shank

  • Model-specific selection: The 48 mm locating collar makes the illustrated SB50 interface more specific than a plain 32 mm shaft; rear-to-collar seating must be confirmed on the installed tool.
  • Complete rear-profile identification: The 51 mm rear reference, 50 mm axial reference and 21 mm recess section give independent checks for the pictured SB50 arrangement. Together with the 32 mm diameter, they make a clearer order specification than a single nominal tool size.
  • Collar and seating checks: The depicted collar is part of the identification geometry. rear end to collar reference: 166 mm; collar diameter reference: 48 mm; working-section diameter shown: 32 mm. Its seating position should be compared with the old tool in addition to the retaining recess.

Product Specifications and Identification

Specification Details
Supplier brand HUILIAN replacement part
Intended breaker model Atlas Copco SB50
Part name Hydraulic breaker tool chisel; selected working tip to be confirmed
Assembly position Working tool retained in the breaker tool guide
Reference shank diameter 32 mm, as marked in the supplied drawing
Rear-end reference shown 51 mm
Axial retaining-profile reference shown 50 mm
Section height at the retaining recess shown 21 mm
Rear end to collar reference 166 mm
Collar diameter reference 48 mm
Working-section diameter shown 32 mm
Overall length and selected tip Confirm with the old tool and required application; not fully specified by this shank drawing
Part identification Send model plate, serial number, old tool reference and measured rear-end profile
Ordering details Quantity, destination, price, material specification, availability, lead time and packing confirmed in the quotation

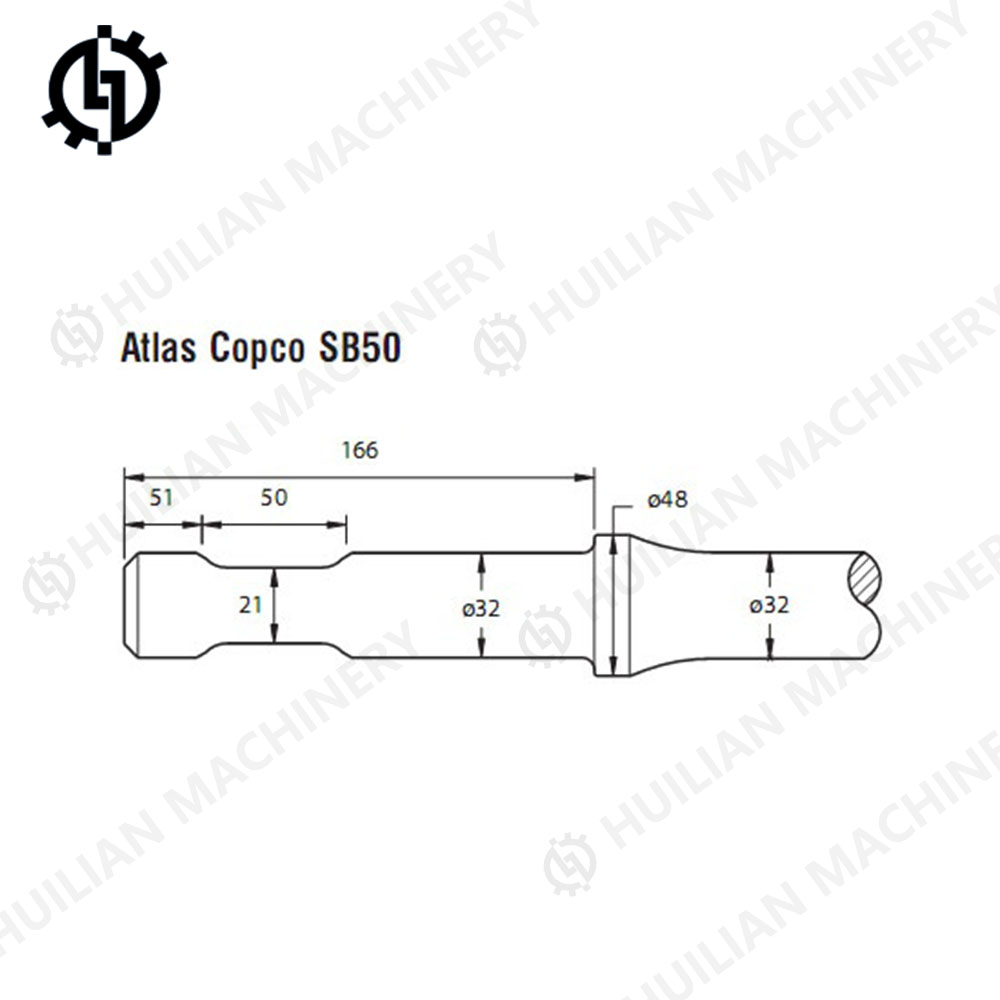

Atlas Copco SB50 Shank Drawing

Dimensions are reference callouts from the supplied drawing, in mm. Confirm the complete manufacturing drawing and tolerances against an unworn tool. The illustration identifies the shank profile; it does not establish a complete tool length or selected working tip.

Hydraulic breaker working-tip examples; confirm the selected Atlas Copco SB50 tool design

Atlas Copco SB50 Spare Parts and Part Numbers

Component Identification for Quotation
Tool Chisel Match the 32 mm reference section and complete SB50 rear profile; send the old tool number and measurements
Related SB50 parts tool retainer, bushings, dust seal and piston; identify each assembly and part reference separately

Fitment and Ordering Checklist for SB50

The 48 mm locating collar makes the illustrated SB50 interface more specific than a plain 32 mm shaft; rear-to-collar seating must be confirmed on the installed tool.

  1. Send the Atlas Copco SB50 model plate, serial number, old-tool reference and installed-position photos.
  2. Compare 32 mm shank, 51 mm rear reference, 50 mm axial retaining-profile reference and 21 mm section at the recess. Check rear end to collar reference: 166 mm; collar diameter reference: 48 mm; working-section diameter shown: 32 mm as well.
  3. Check the retaining-profile orientation, tip design and required overall length. A matching diameter does not confirm the complete interface.
  4. Inspect the tool-guide bushings and retainer, and send their dimensions if additional replacement parts are required.
  5. Confirm the manufacturing drawing, selected working end, quantity, destination and supplied packing list in the quotation.

Related Atlas Copco SB50 Spare Parts

For a SB50 maintenance enquiry, request tool retainers, upper and lower bushings, dust seals and pistons as separate identified items. The quotation confirms each assembly, quantity and selected specification.

Other Hydraulic Breaker Hammer Spare Parts of Our Factory

atlas copco Hydraulic Breaker Model:
SB50 SB52 SB100 SB102 SB150 SB152 SB200 SB202 SB300 SB450 SB452 SB552 SBC115 SBC225 SBC410 SBC610 SBC650 SBC800 SBC850 HB2000 HB2200 HB2500 HB3000 HB3100 HB3600 HB4100/4200 HB4700 HB5800 HB7000 HBC1100 HBC1700 HBC2500 HBC4000 HBC6000 PB110 PB160 PB210 PB310 PB420 PB530 MB500 MB700/750 MB800 MB1000 MB1200 MB1500 MB1600 MB1700 EC100T EC120T EC135T EC140T EC155T EC40T EC50T EC60T EC70T EC80T

Our factory can manufacture the hydraulic breaker spare parts listed below. Send the breaker model, old part number or drawing, quantity and material requirements for confirmation of the manufacturing specification and quotation.

Part Type Part Type Part Type Part Type
Back Head Front Head Breaker Cylinder Through Bolt/Tie Rod
Seal Kit Diaphragm/Membrane Rod Pin Stop Pin
Upper Bushing/Inner Bush/Chisel Bush Accumulator Sleeve Valve Piston Ring
Chisel/Tool Thrust Ring Moil Chisel Piston
V-Wedge Chisel Universal Chisel Flat Chisel Damper/Shock Absorber
H-Wedge Chisel Lower Bushing/Outer Bush/Front Cover Rubber Pad Side Bolt
Charging Valve N2 Gas Charging Kit Gas Bottle Lock Pin

HUILIAN factory hydraulic breaker spare parts range

Frequently Asked Questions

What distinguishes the Atlas Copco SB50 tool chisel?

SB50 is pictured with a 32 mm tool section, a 48 mm collar and a 166 mm rear-to-collar reference. The compact collar arrangement is the main ordering feature, and its 21 mm recess section should be checked alongside the diameter. The 48 mm locating collar makes the illustrated SB50 interface more specific than a plain 32 mm shaft; rear-to-collar seating must be confirmed on the installed tool.

Which dimensions are needed for a SB50 replacement?

The supplied drawing shows 32 mm shank, 51 mm rear reference, 50 mm axial retaining-profile reference and 21 mm section at the recess. Additional callouts include rear end to collar reference: 166 mm; collar diameter reference: 48 mm; working-section diameter shown: 32 mm. Measure an unworn sample and confirm the exact manufacturing dimensions and tolerances. Also send overall length, groove orientation, old tool reference and breaker serial number.

Does the SB50 drawing specify the supplied working tip?

The SB50 image shows shank and retaining geometry, not a complete working tip or total tool length. Request the required moil, cone, wedge or blunt design and overall length separately. Confirm the selected tool design against the application and original interface.

Can I order related Atlas Copco SB50 spare parts?

Enquire about SB50 tool retainers, upper and lower bushings, dust seals and pistons. Provide each old part reference, quantity and assembly version separately. Check tool-guide and retainer condition when identifying a replacement chisel.
