Chicago Pneumatic CP300 Tool Chisel for Hydraulic Breaker Hammer
HUILIAN supplies replacement tool chisels for Chicago Pneumatic CP300 hydraulic breaker enquiries. The CP300 drawing shows a 70 mm shank, an 86 mm axial retaining reference and a 64 mm rear position. Its main ordering benefit is the clear rear-position difference from CP200, making a complete profile comparison more useful than a shared reference length. Send the model plate, serial number, old-tool photos, required working tip and overall length for a quotation.
Chicago Pneumatic CP300 Tool Chisel for Hydraulic Breaker Hammer
The CP300 drawing shows a 70 mm shank, an 86 mm axial retaining reference and a 64 mm rear position. Its main ordering benefit is the clear rear-position difference from CP200, making a complete profile comparison more useful than a shared reference length.
70 mm CP300 Tool Profile and a Distinct 64 mm Rear Position
- Model-specific selection: The 54 mm section at the recess completes the CP300 identification profile. It should be checked together with the 64 mm rear position when separating CP200 and CP300 replacement tools.
- Complete rear-profile identification: The 64 mm rear reference, 86 mm axial reference and 54 mm section at the recess give three independent checks alongside the 70 mm outer diameter. Their combined values identify the pictured CP300 interface more clearly than a single nominal size.
- Clear replacement enquiry: A model-labelled CP300 drawing lets the rear geometry be compared with old-tool photos before working-tip shape and overall length are selected. Retainer and bushing checks can be included in the same maintenance enquiry.
Product Specifications and Identification
| Specification | Details |
|---|---|
| Supplier brand | HUILIAN replacement part |
| Intended breaker model | Chicago Pneumatic CP300 |
| Part name | Hydraulic breaker tool chisel; selected working tip to be confirmed |
| Assembly position | Working tool retained in the breaker tool guide |
| Reference shank diameter | 70 mm, as marked in the supplied drawing |
| Rear-end reference shown | 64 mm |
| Axial retaining-profile reference shown | 86 mm |
| Section height at the recess shown | 54 mm |
| Overall length and working tip | Confirm with the old tool and required application; not fully specified by this shank drawing |
| Part identification | Send model plate, serial number, old tool reference and complete measured rear profile |
| Ordering details | Quantity, destination, price, material specification, availability, lead time and packing confirmed in the quotation |

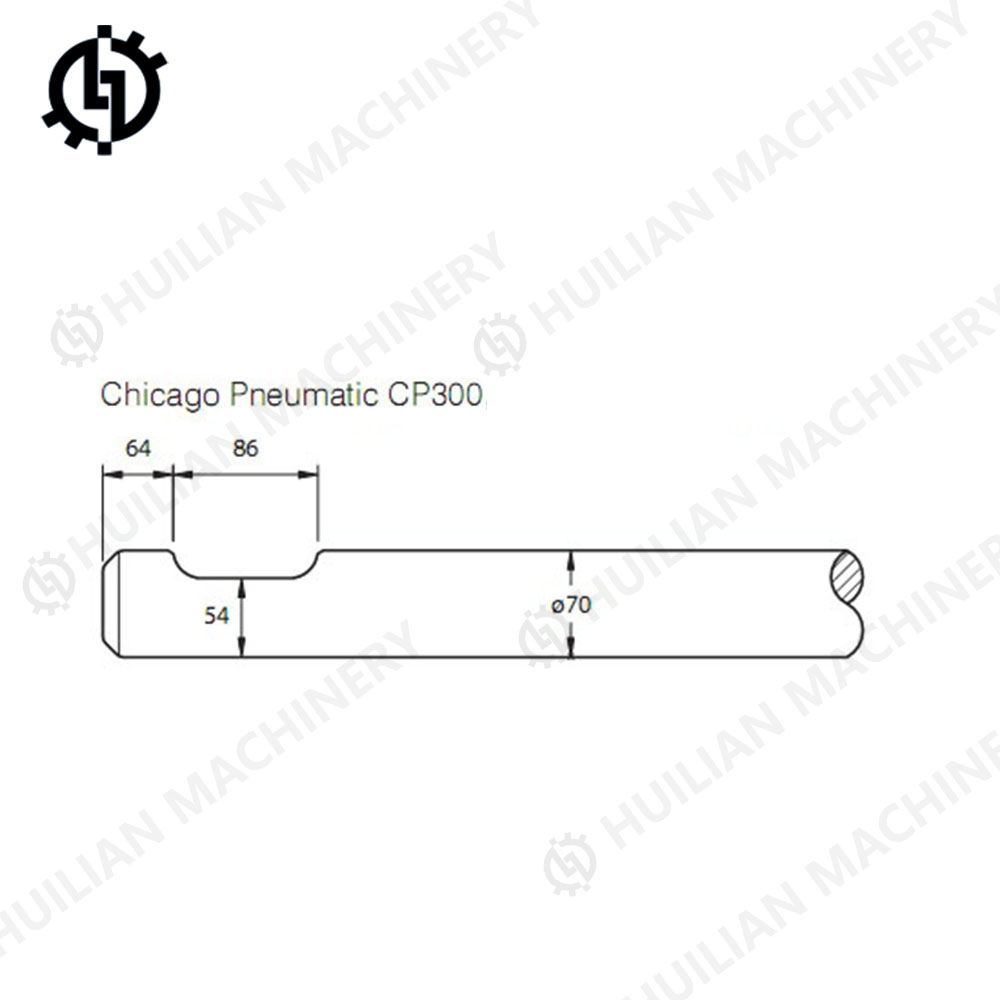

Chicago Pneumatic CP300 Shank Drawing
Dimensions are reference callouts from the supplied drawing, in mm. Confirm the manufacturing drawing and tolerances against an unworn tool. This illustration identifies the rear profile; it does not specify a complete tool length or selected working tip.

Chicago Pneumatic CP300 Spare Parts and Part Numbers
| Component | Identification for Quotation |
|---|---|
| Tool Chisel | Match the 70 mm reference section and full CP300 rear-end layout; send the old tool number and measured profile |
| Related CP300 parts | tool retainer, bushings, dust seal and piston; identify each assembly and part reference separately |
Fitment and Ordering Checklist for CP300
The 54 mm section at the recess completes the CP300 identification profile. It should be checked together with the 64 mm rear position when separating CP200 and CP300 replacement tools.
- Send the Chicago Pneumatic CP300 model plate, serial number, old-tool reference and installed-position photos.
- Compare 70 mm shank, 64 mm rear reference, 86 mm axial retaining-profile reference and 54 mm section at the recess with the original tool.
- Check retaining-profile orientation, required working tip and overall length. A matching diameter or one shared rear measurement does not confirm the complete interface.
- Inspect tool-guide bushings and the retainer, and send their condition and dimensions if additional parts are required.
- Confirm the selected design, manufacturing drawing, quantity, destination and supplied packing list in the quotation.
Related Chicago Pneumatic CP300 Spare Parts
For a CP300 maintenance enquiry, request tool retainers, upper and lower bushings, dust seals and pistons as separate identified items. The quotation confirms each assembly, selected specification and quantity.
Other Hydraulic Breaker Hammer Spare Parts of Our Factory
Chicago Pneumatic Hydraulic Breaker Model:
CP75H CP80H CP100 CP100H CP110H CP150 CP180H CP200 CP250H CP290H CP300 CP400 CP200 CP300 CP400 CP400H CP550 CP600H CP700H CP750 CP900H CP1150 CP1400H CP1650 CP1800H CP2000H CP2250 CP3050 CP4250
RX2 RX3 RX4 RX6 RX8 RX14 RX18 RX22 RX30 RX38 RX45 RX53
Our factory can manufacture the hydraulic breaker spare parts listed below. Send the breaker model, old part number or drawing, quantity and material requirements for confirmation of the manufacturing specification and quotation.
| Part Type | Part Type | Part Type | Part Type |
|---|---|---|---|
| Back Head | Front Head | Breaker Cylinder | Through Bolt/Tie Rod |
| Seal Kit | Diaphragm/Membrane | Rod Pin | Stop Pin |
| Upper Bushing/Inner Bush/Chisel Bush | Accumulator | Sleeve Valve | Piston Ring |
| Chisel/Tool | Thrust Ring | Moil Chisel | Piston |
| V-Wedge Chisel | Universal Chisel | Flat Chisel | Damper/Shock Absorber |
| H-Wedge Chisel | Lower Bushing/Outer Bush/Front Cover | Rubber Pad | Side Bolt |
| Charging Valve | N2 Gas Charging Kit | Gas Bottle | Lock Pin |

Frequently Asked Questions
What distinguishes the Chicago Pneumatic CP300 tool chisel?
The CP300 drawing shows a 70 mm shank, an 86 mm axial retaining reference and a 64 mm rear position. Its main ordering benefit is the clear rear-position difference from CP200, making a complete profile comparison more useful than a shared reference length. The 54 mm section at the recess completes the CP300 identification profile. It should be checked together with the 64 mm rear position when separating CP200 and CP300 replacement tools.
Which dimensions are needed for this CP300 replacement?
The supplied drawing marks 70 mm shank, 64 mm rear reference, 86 mm axial retaining-profile reference and 54 mm section at the recess. Measure an unworn sample and confirm manufacturing dimensions and tolerances. Also send the complete tool length, retaining-profile orientation, old tool number if available and breaker serial number.
Does the CP300 image identify the working tip supplied?
The CP300 image illustrates the rear shank and retaining profile, not a complete working tip or overall length. Request the required moil, cone, wedge or blunt design separately. Confirm the selected working end for the application and the complete interface against the original tool.
Can I include related Chicago Pneumatic CP300 parts?
Enquire about the CP300 tool retainer, upper and lower bushings, dust seal and piston. Identify each old part reference, assembly version and quantity separately. Check guide and retainer condition when replacing a worn chisel; the quotation confirms the supplied packing list.
Request a Quote
Send your Chicago Pneumatic CP300 model plate, old chisel reference, measured rear-end dimensions, selected working tip and overall length, quantity and destination. HUILIAN will confirm the CP300 replacement specification and quotation.
