Furukawa F35 Tool Chisel for Hydraulic Breaker Hammer

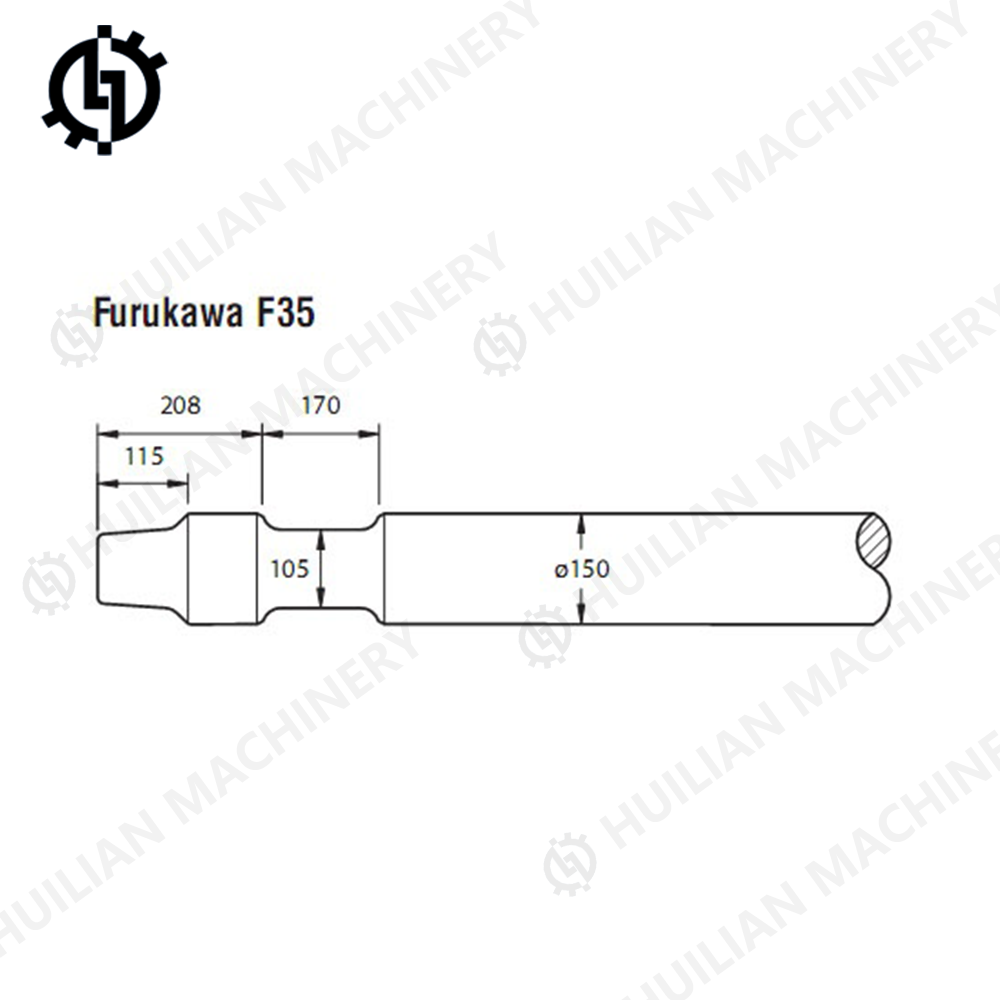

HUILIAN replacement tool chisel for Furukawa F35. The F35 drawing features a 150 mm body and 170 mm profile span, with a 208 mm rear reference and a tapered end. Those rear features are essential identifiers because HB30G shares the nominal diameter and profile span in the compared model drawings. Confirm the old-tool profile, chosen tip and overall length for a quotation.
Furukawa F35 Tool Chisel for Hydraulic Breaker Hammer
HUILIAN supplies replacement tool chisel enquiries for Furukawa F35. The F35 drawing features a 150 mm body and 170 mm profile span, with a 208 mm rear reference and a tapered end. Those rear features are essential identifiers because HB30G shares the nominal diameter and profile span in the compared model drawings.
F35 Tapered Rear for 150 mm Chisel Identification
- The 208 mm rear reference and 115 mm rear-end callout provide a clear F35 identification path beside the HB30G drawing.
- Confirm the 105 mm reduced section with the old tool; similar diameter and span do not guarantee the same retainer fit.
- A model-specific enquiry can confirm the working tip and length separately from the rear shank, helping align the tool specification with the job and breaker configuration.
Product Specifications and Identification
| Specification | Details |
|---|---|
| Supplier brand | HUILIAN |
| Intended breaker model | Furukawa F35; confirm exact model plate, serial number and installed configuration |
| Part name | Hydraulic breaker tool chisel / replacement working tool |
| Nominal shank diameter | 150 mm (drawing reference) |
| Rear and retaining-profile references | 150 mm nominal body diameter; 208 mm rear reference; 170 mm axial profile span; 105 mm reduced-section callout; 115 mm additional rear-end reference. All values are drawing references, not a tolerance specification. |
| Pictured rear outline | Stepped / tapered rear with an additional 115 mm rear-end reference; compare the original drawing. |
| Working tip and overall length | Not established by this rear-shank drawing. Confirm the required tip, length and orientation with the enquiry. |
| Ordering details | Send old part reference where available, photos, quantity and destination. Price, availability, lead time, packing and final dimensions are confirmed in the quotation. |

Furukawa F35 Spare Parts and Part Numbers
| Component | Identification for Quotation |
|---|---|
| Tool chisel for F35 | Use the 150 mm body and the 208 / 170 / 105 mm rear-profile references alongside the old part number and photos. |
| Related F35 parts | Identify tool retainer, upper and lower bushings, dust seal and piston separately; do not infer their part numbers from the chisel drawing. |
Fitment and Ordering Checklist for F35
Confirm the 105 mm reduced section with the old tool; similar diameter and span do not guarantee the same retainer fit.
- Send the Furukawa F35 model plate and old-tool photographs, including the rear end and retaining recess.
- Check the 150 mm body, 208 mm rear reference, 170 mm axial profile span and 105 mm reduced-section reference, plus the 115 mm rear-end callout.
- Provide the overall tool length, chosen tip shape and orientation. Confirm tolerances, tool guide and retainer arrangement before ordering.
- Give the required quantity and delivery destination so the quotation can specify the selected components and packing.
Related Furukawa F35 Spare Parts
When replacing the F35 tool, inspect its retaining components and upper/lower bushings for wear according to the breaker service instructions. Enquiries can include tool retainer, bushings, dust seal and piston, each identified separately. A chisel order does not automatically include these parts.
Other Hydraulic Breaker Hammer Spare Parts of Our Factory
Furukawa Hydraulic Breaker Model:
HB1G HB2G HB3G HB5G HB8G HB10G HB15G HB18G HB20G HB30G HB35G HB40G HB50G HB05R HB1R HB2R HB3R HB4R HB100
HB200 HB300 HB400 F1 F2 F3 F4 F5 F6 F9 F11 F12 F17 F19 F20 F22 F22A F22(A+B1+C) F22(A+B1+B2+C+D+E) FX25 F27 F30 F35 F45 F70
FX15 FX35 FX45 FX55 FX65 FX220 FX360
FX470 FXJ175 FXJ275 FXJ375 FXJ475
Our factory can manufacture hydraulic breaker spare parts. The model range above is supplied for enquiries; it does not mean that this F35 chisel fits every listed breaker. Send the relevant model, drawing or part reference, quantity and material requirements for manufacturing confirmation and quotation.
| Part Type | Part Type | Part Type | Part Type |
|---|---|---|---|
| Back Head | Front Head | Breaker Cylinder | Through Bolt/Tie Rod |
| Seal Kit | Diaphragm/Membrane | Rod Pin | Stop Pin |
| Upper Bushing/Inner Bush/Chisel Bush | Accumulator | Sleeve Valve | Piston Ring |
| Chisel/Tool | Thrust Ring | Moil Chisel | Piston |
| V-Wedge Chisel | Universal Chisel | Flat Chisel | Damper/Shock Absorber |
| H-Wedge Chisel | Lower Bushing/Outer Bush/Front Cover | Rubber Pad | Side Bolt |
| Charging Valve | N2 Gas Charging Kit | Gas Bottle | Lock Pin |

Frequently Asked Questions
What identifies the Furukawa F35 chisel drawing?
150 mm nominal body diameter; 208 mm rear reference; 170 mm axial profile span; 105 mm reduced-section callout; 115 mm additional rear-end reference. All values are drawing references, not a tolerance specification. Confirm the drawing against the old tool, breaker serial number and retaining arrangement.
What is the main selection advantage of this F35 listing?
The 208 mm rear reference and 115 mm rear-end callout provide a clear F35 identification path beside the HB30G drawing. Confirm the 105 mm reduced section with the old tool; similar diameter and span do not guarantee the same retainer fit.
Which tip and length should I order for F35?
The supplied F35 image identifies the rear shank and does not show a complete working tip or overall tool length. Send the required length, application and preferred moil, wedge or blunt tip so the quotation can confirm the selected specification.
Can I combine the F35 chisel with maintenance parts?
Enquire separately about the F35 tool retainer, upper and lower bushings, dust seal and piston. Provide photos or part references for each item; the quotation confirms the parts and quantities supplied.
Request a Quote
Send your Furukawa F35 tool enquiry with the old part number where available, the 150 mm shank check, rear-profile measurements, selected tip, overall length, quantity and destination. HUILIAN will confirm the replacement specification and quotation.
