Furukawa HB10G Tool Chisel for Hydraulic Breaker Hammer

105 mm shank | 76 mm rear reference | 110 mm profile span | confirm tip and length

HUILIAN replacement tool chisel for Furukawa HB10G. HB10G is shown with a 105 mm shank, a 76 mm rear reference and a 110 mm profile span. The body and span match values on F12, but the plain rear layout and 74 mm reduced-section reference provide separate identification points. Confirm the old-tool profile, chosen tip and overall length for a quotation.

Brand Name
Huilian
Part Name
Tool Chisel / hydraulic breaker working tool
Suitable for Breaker Brand
Furukawa
Breaker Model
HB10G — confirm serial number and configuration
Related Parts
tool retainer, bushings, dust seal and piston
Position
Working tool retained in the breaker tool guide
Get a free quote
Details
Shipping Policy
Technical Service
After-Sales Guarantee

Furukawa HB10G Tool Chisel for Hydraulic Breaker Hammer

HUILIAN supplies replacement tool chisel enquiries for Furukawa HB10G. HB10G is shown with a 105 mm shank, a 76 mm rear reference and a 110 mm profile span. The body and span match values on F12, but the plain rear layout and 74 mm reduced-section reference provide separate identification points.

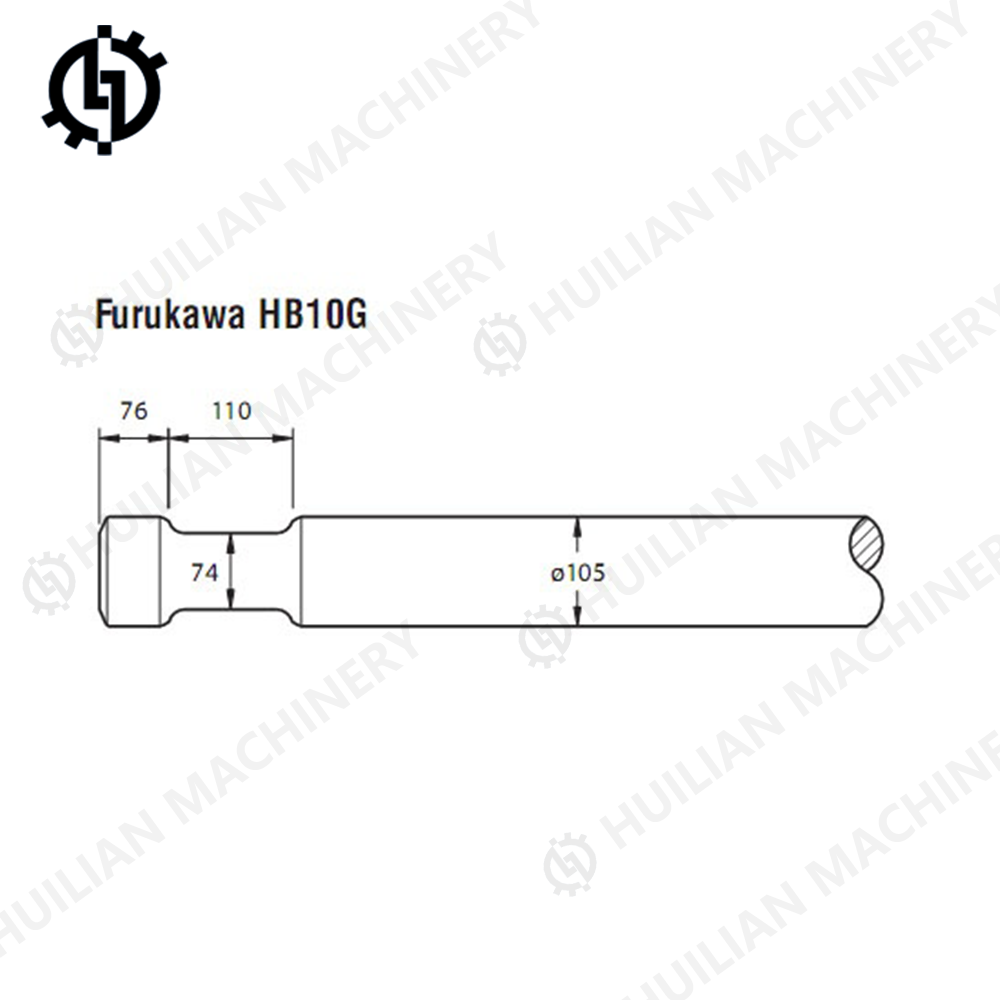

HB10G 105 mm Tool with a 76 mm Rear Reference

  • The compact rear reference helps distinguish the HB10G drawing from the tapered F12 rear arrangement.
  • Record the 74 mm reduced section accurately when comparing a tool with the nearby 75 mm F12 callout.
  • A model-specific enquiry can confirm the working tip and length separately from the rear shank, helping align the tool specification with the job and breaker configuration.

Product Specifications and Identification

Specification Details
Supplier brand HUILIAN
Intended breaker model Furukawa HB10G; confirm exact model plate, serial number and installed configuration
Part name Hydraulic breaker tool chisel / replacement working tool
Nominal shank diameter 105 mm (drawing reference)
Rear and retaining-profile references 105 mm nominal body diameter; 76 mm rear reference; 110 mm axial profile span; 74 mm reduced-section callout. All values are drawing references, not a tolerance specification.
Pictured rear outline Plain cylindrical rear outline with a retaining recess; compare the original drawing.
Working tip and overall length Not established by this rear-shank drawing. Confirm the required tip, length and orientation with the enquiry.
Ordering details Send old part reference where available, photos, quantity and destination. Price, availability, lead time, packing and final dimensions are confirmed in the quotation.

Hydraulic breaker chisel working tip options

Furukawa HB10G Spare Parts and Part Numbers

Component Identification for Quotation
Tool chisel for HB10G Use the 105 mm body and the 76 / 110 / 74 mm rear-profile references alongside the old part number and photos.
Related HB10G parts Identify tool retainer, upper and lower bushings, dust seal and piston separately; do not infer their part numbers from the chisel drawing.

Fitment and Ordering Checklist for HB10G

Record the 74 mm reduced section accurately when comparing a tool with the nearby 75 mm F12 callout.

  1. Send the Furukawa HB10G model plate and old-tool photographs, including the rear end and retaining recess.
  2. Check the 105 mm body, 76 mm rear reference, 110 mm axial profile span and 74 mm reduced-section reference.
  3. Provide the overall tool length, chosen tip shape and orientation. Confirm tolerances, tool guide and retainer arrangement before ordering.
  4. Give the required quantity and delivery destination so the quotation can specify the selected components and packing.

Related Furukawa HB10G Spare Parts

When replacing the HB10G tool, inspect its retaining components and upper/lower bushings for wear according to the breaker service instructions. Enquiries can include tool retainer, bushings, dust seal and piston, each identified separately. A chisel order does not automatically include these parts.

Other Hydraulic Breaker Hammer Spare Parts of Our Factory

Furukawa Hydraulic Breaker Model:
HB1G HB2G HB3G HB5G HB8G HB10G HB15G HB18G HB20G HB30G HB35G HB40G HB50G HB05R HB1R HB2R HB3R HB4R HB100
HB200 HB300 HB400 F1 F2 F3 F4 F5 F6 F9 F11 F12 F17 F19 F20 F22 F22A F22(A+B1+C) F22(A+B1+B2+C+D+E) FX25 F27 F30 F35 F45 F70
FX15 FX35 FX45 FX55 FX65 FX220 FX360
FX470 FXJ175 FXJ275 FXJ375 FXJ475

Our factory can manufacture hydraulic breaker spare parts. The model range above is supplied for enquiries; it does not mean that this HB10G chisel fits every listed breaker. Send the relevant model, drawing or part reference, quantity and material requirements for manufacturing confirmation and quotation.

Part Type Part Type Part Type Part Type
Back Head Front Head Breaker Cylinder Through Bolt/Tie Rod
Seal Kit Diaphragm/Membrane Rod Pin Stop Pin
Upper Bushing/Inner Bush/Chisel Bush Accumulator Sleeve Valve Piston Ring
Chisel/Tool Thrust Ring Moil Chisel Piston
V-Wedge Chisel Universal Chisel Flat Chisel Damper/Shock Absorber
H-Wedge Chisel Lower Bushing/Outer Bush/Front Cover Rubber Pad Side Bolt
Charging Valve N2 Gas Charging Kit Gas Bottle Lock Pin

Huilian hydraulic breaker hammer spare parts range

Frequently Asked Questions

What identifies the Furukawa HB10G chisel drawing?

105 mm nominal body diameter; 76 mm rear reference; 110 mm axial profile span; 74 mm reduced-section callout. All values are drawing references, not a tolerance specification. Confirm the drawing against the old tool, breaker serial number and retaining arrangement.

What is the main selection advantage of this HB10G listing?

The compact rear reference helps distinguish the HB10G drawing from the tapered F12 rear arrangement. Record the 74 mm reduced section accurately when comparing a tool with the nearby 75 mm F12 callout.

Which tip and length should I order for HB10G?

The supplied HB10G image identifies the rear shank and does not show a complete working tip or overall tool length. Send the required length, application and preferred moil, wedge or blunt tip so the quotation can confirm the selected specification.

Can I combine the HB10G chisel with maintenance parts?

Enquire separately about the HB10G tool retainer, upper and lower bushings, dust seal and piston. Provide photos or part references for each item; the quotation confirms the parts and quantities supplied.

Request a Quote

Send your Furukawa HB10G tool enquiry with the old part number where available, the 105 mm shank check, rear-profile measurements, selected tip, overall length, quantity and destination. HUILIAN will confirm the replacement specification and quotation.
