H100 / H100S Tool Chisel for Hydraulic Breaker Hammer

95 mm body | 95 mm rear end | 105 mm profile span | 105 mm rear reference

HUILIAN replacement tool chisel for H100 / H100S. The shared H100 / H100S drawing combines equal 95 mm body and rear-end references with opposed recess outlines. Both the retaining span and rear reference are 105 mm, and the reduced section is shown separately as 66 mm. Confirm the old-tool profile, chosen tip and overall length for a quotation.

Brand Name
Huilian
Part Name
Tool Chisel / hydraulic breaker working tool
Breaker Model
H100 / H100S — confirm serial number and configuration
Related Parts
tool retainer, bushings, dust seal and piston
Position
Working tool retained in the breaker tool guide
Get a free quote
Details
Shipping Policy
Technical Service
After-Sales Guarantee

H100 / H100S Tool Chisel for Hydraulic Breaker Hammer

HUILIAN supplies replacement tool chisels for H100 / H100S. The shared H100 / H100S drawing combines equal 95 mm body and rear-end references with opposed recess outlines. Both the retaining span and rear reference are 105 mm, and the reduced section is shown separately as 66 mm.

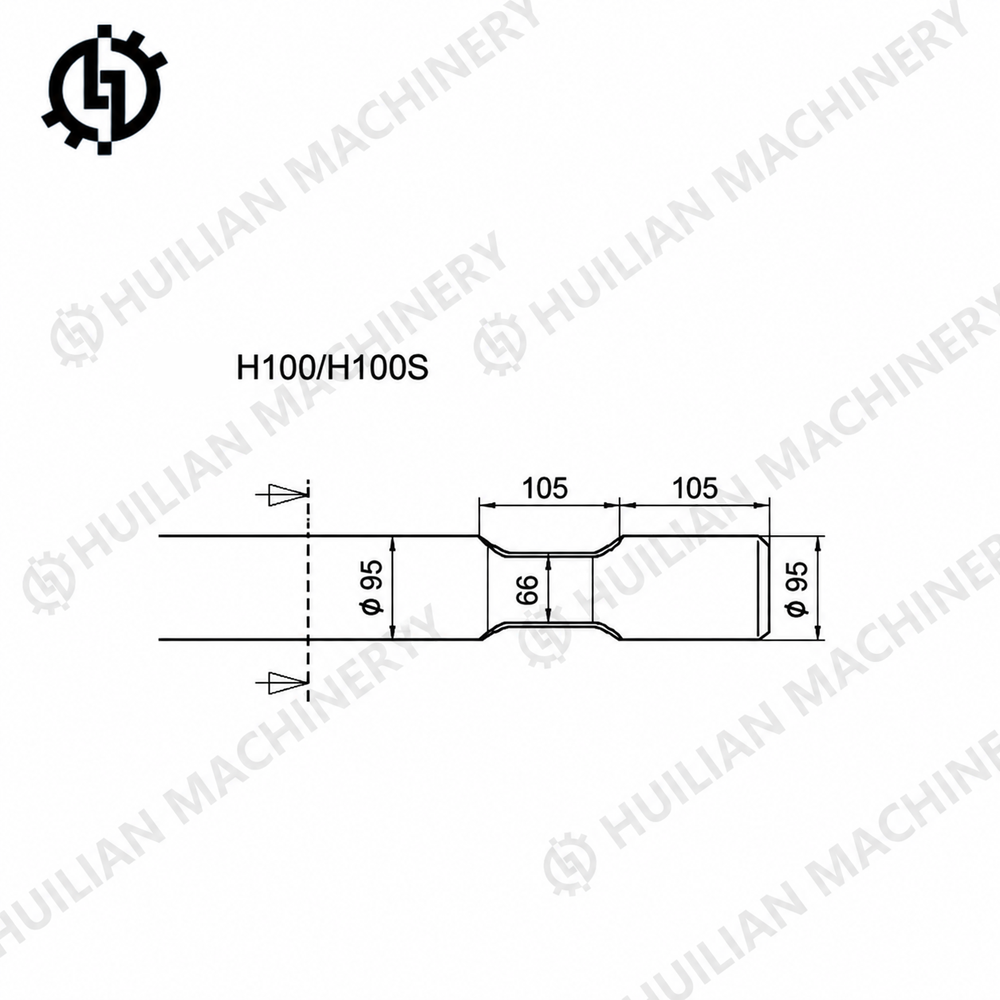

H100 and H100S: 95 mm Profile with Two 105 mm Axial References

  • The equal 105 mm axial values can be checked independently against the two locations shown on the drawing.
  • The 95 mm diameter and 66 mm reduced section distinguish the H100 / H100S interface from the larger 106 mm H115S tool.
  • The rear profile can be checked separately from the working tip and length, allowing the quotation to identify the retaining arrangement and selected working-end specification.

Product Specifications and Identification

Specification Details
Supplier brand HUILIAN
Intended breaker references H100 / H100S; use the exact brand, model plate, serial number and installed configuration
Model labels for identification H100 / H100S
Part name Hydraulic breaker tool chisel / replacement working tool
Main-body diameter reference 95 mm
Rear-end diameter reference 95 mm
Retaining and rear references 95 mm main-body reference; 95 mm rear-end diameter; 105 mm axial retaining-profile span; 105 mm rear reference; 66 mm reduced-section callout. Values are drawing references; confirm tolerances and configuration separately.
Illustrated retaining outline Opposing recess outlines shown around the reduced section; compare both sides of the old tool.
Tip and overall length Confirm separately; the rear-shank drawing does not specify the complete working-end shape or overall length.
Quotation information Send the old part number where available, photos, required quantity and destination. Price, availability, lead time, final dimensions and supplied components are confirmed in the quotation.

Hydraulic breaker chisel working tip options

H100 / H100S Spare Parts and Part Numbers

Component Identification for Quotation
Tool chisel for H100 / H100S Check the 95 mm main-body reference, 95 mm rear end, 105 mm retaining span and 105 mm rear reference with the old part number and photographs.
Related maintenance components Identify the tool retainer, upper and lower bushings, dust seal and piston separately. Their part numbers are not established by this chisel drawing.

Fitment and Ordering Checklist for H100 / H100S

For H100 / H100S, check the 95 mm body reference, 95 mm rear-end reference, 105 mm retaining span, 105 mm rear reference and 66 mm reduced section. Photograph both sides of the retaining region. Confirm the exact model suffix and old-tool configuration.

  1. Provide the H100 / H100S breaker model plate, serial number and old-tool photographs, including the rear end and retaining region.
  2. Check the 95 mm main-body reference, 95 mm rear-end diameter, 105 mm span, 105 mm rear reference and 66 mm reduced section.
  3. Confirm tool-guide and retainer configuration, dimensional tolerances, working tip, overall length and tip orientation.
  4. Specify quantity and destination so the quotation can confirm the selected tool and any separately ordered maintenance components.

Related H100 / H100S Spare Parts

A H100 / H100S maintenance enquiry can include tool retainer, bushings, dust seal and piston. Inspect these components against the breaker service requirements and identify each requested part separately. The chisel and related components are supplied as confirmed in the quotation.
