H130 Tool Chisel for Hydraulic Breaker Hammer

130 mm body | 130 mm rear end | 117 mm profile span | 88 mm rear reference

HUILIAN replacement tool chisel for H130. H130 is shown with a 130 mm cylindrical shaft and a single-sided retaining recess. A 117 mm recess span, 88 mm rear reference and 102 mm reduced-section callout define its rear geometry. Confirm the old-tool profile, chosen tip and overall length for a quotation.

Brand Name
Huilian
Part Name
Tool Chisel / hydraulic breaker working tool
Breaker Model
H130 — confirm serial number and configuration
Related Parts
tool retainer, bushings, dust seal and piston
Position
Working tool retained in the breaker tool guide
Get a free quote
Details
Shipping Policy
Technical Service
After-Sales Guarantee

H130 Tool Chisel for Hydraulic Breaker Hammer

HUILIAN supplies replacement tool chisels for H130. H130 is shown with a 130 mm cylindrical shaft and a single-sided retaining recess. A 117 mm recess span, 88 mm rear reference and 102 mm reduced-section callout define its rear geometry.

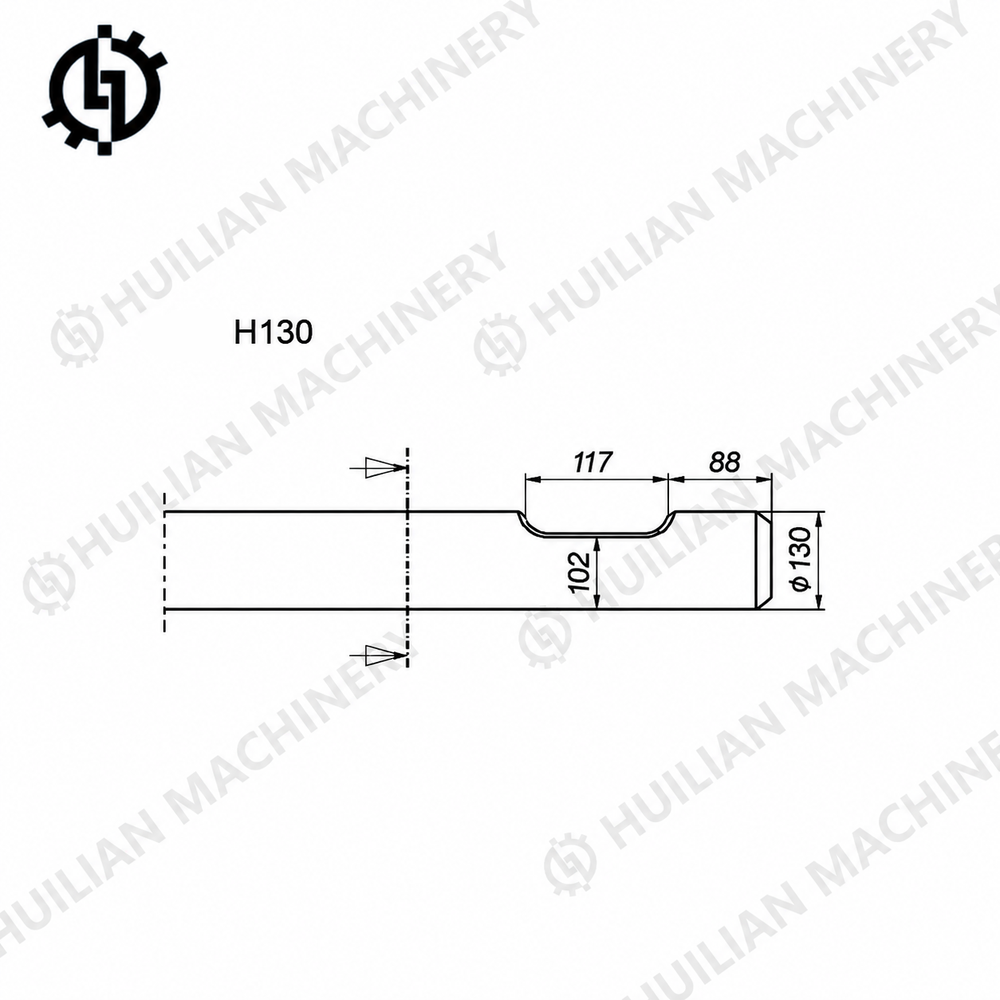

H130: Single-Sided 130 mm Profile with a 117 mm Recess Span

  • The single-sided outline distinguishes H130 from the opposed-recess H130C / H130S drawing despite the shared 130 mm diameter.
  • The 117 / 88 mm axial references and 102 mm reduced section provide additional checks against the C and S suffix configurations.
  • The rear profile can be checked separately from the working tip and length, allowing the quotation to identify the retaining arrangement and selected working-end specification.

Product Specifications and Identification

Specification Details
Supplier brand HUILIAN
Intended breaker references H130; use the exact brand, model plate, serial number and installed configuration
Model labels for identification H130
Part name Hydraulic breaker tool chisel / replacement working tool
Main-body diameter reference 130 mm
Rear-end diameter reference 130 mm
Retaining and rear references 130 mm main-body reference; 130 mm rear-end diameter; 117 mm axial retaining-profile span; 88 mm rear reference; 102 mm reduced-section callout. Values are drawing references; confirm tolerances and configuration separately.
Illustrated retaining outline Single-sided retaining recess outline; compare the original tool and retainer configuration.
Tip and overall length Confirm separately; the rear-shank drawing does not specify the complete working-end shape or overall length.
Quotation information Send the old part number where available, photos, required quantity and destination. Price, availability, lead time, final dimensions and supplied components are confirmed in the quotation.

Hydraulic breaker chisel working tip options

H130 Spare Parts and Part Numbers

Component Identification for Quotation
Tool chisel for H130 Check the 130 mm main-body reference, 130 mm rear end, 117 mm retaining span and 88 mm rear reference with the old part number and photographs.
Related maintenance components Identify the tool retainer, upper and lower bushings, dust seal and piston separately. Their part numbers are not established by this chisel drawing.

Fitment and Ordering Checklist for H130

For H130, check the 130 mm body reference, 130 mm rear-end reference, 117 mm retaining span, 88 mm rear reference and 102 mm reduced section. Compare the single-sided recess with the original tool. Confirm the exact model suffix and old-tool configuration.

  1. Provide the H130 breaker model plate, serial number and old-tool photographs, including the rear end and retaining region.
  2. Check the 130 mm main-body reference, 130 mm rear-end diameter, 117 mm span, 88 mm rear reference and 102 mm reduced section.
  3. Confirm tool-guide and retainer configuration, dimensional tolerances, working tip, overall length and tip orientation.
  4. Specify quantity and destination so the quotation can confirm the selected tool and any separately ordered maintenance components.

Related H130 Spare Parts

A H130 maintenance enquiry can include tool retainer, bushings, dust seal and piston. Inspect these components against the breaker service requirements and identify each requested part separately. The chisel and related components are supplied as confirmed in the quotation.

Other Hydraulic Breaker Hammer Spare Parts of Our Factory

Hydraulic Breaker Model:
B6 B8 B20 B30 B35 H35 H45S H50 H50S H55DS H63 H63S H65DS H70 H70S H90 H90C H90CS H100 H100S H115 H115S H120 H120S H120CS H130 H130C H130S H140 H140C H140DS H140S H140CS
H160 H160CS H160S H160DS H170 H180 H180DS H180S H195S

Our factory can manufacture hydraulic breaker spare parts. The model range above is supplied for parts enquiries; each component must be matched to its own brand, model and breaker configuration. Send the relevant drawing or part number, quantity and material requirements so the manufacturing specification and quotation can be confirmed.

Part Type Part Type Part Type Part Type
Back Head Front Head Breaker Cylinder Through Bolt/Tie Rod
Seal Kit Diaphragm/Membrane Rod Pin Stop Pin
Upper Bushing/Inner Bush/Chisel Bush Accumulator Sleeve Valve Piston Ring
Chisel/Tool Thrust Ring Moil Chisel Piston
V-Wedge Chisel Universal Chisel Flat Chisel Damper/Shock Absorber
H-Wedge Chisel Lower Bushing/Outer Bush/Front Cover Rubber Pad Side Bolt
Charging Valve N2 Gas Charging Kit Gas Bottle Lock Pin

Huilian hydraulic breaker hammer spare parts range

Frequently Asked Questions

Which dimensions identify the H130 chisel?

130 mm main-body reference; 130 mm rear-end diameter; 117 mm axial retaining-profile span; 88 mm rear reference; 102 mm reduced-section callout. Values are drawing references; confirm tolerances and configuration separately. For H130, check the 130 mm body reference, 130 mm rear-end reference, 117 mm retaining span, 88 mm rear reference and 102 mm reduced section. Compare the single-sided recess with the original tool. Confirm the exact model suffix and old-tool configuration.

What is distinctive about this H130 tool profile?

The single-sided outline distinguishes H130 from the opposed-recess H130C / H130S drawing despite the shared 130 mm diameter. The 117 / 88 mm axial references and 102 mm reduced section provide additional checks against the C and S suffix configurations.

Which tip and overall length should I order for H130?

The supplied H130 drawing shows the rear shank and retaining region. It does not establish the complete working tip or overall tool length. Specify the required length, application, selected moil, wedge or blunt tip and orientation for confirmation in the quotation.

Can a H130 enquiry include related maintenance parts?

Enquire separately about the tool retainer, upper and lower bushings, dust seal and piston for H130. Provide a part reference or photos and quantity for each item. The quotation confirms the selected components and packing list.

Request a Quote

Send your H130 chisel enquiry with the old part reference where available, the 130 / 130 mm diameter checks, retaining-profile measurements, photographs, selected tip, overall length, quantity and destination. HUILIAN will confirm the replacement specification and quotation.
