H160CS Tool Chisel for Hydraulic Breaker Hammer
HUILIAN replacement tool chisel for H160CS. The H160CS drawing uses a 160 mm main body and a slightly smaller 158 mm rear end around opposed recess outlines. Its 148 mm span, 199 mm rear reference and 112 mm reduced section form a dedicated CS profile. Confirm the old-tool profile, chosen tip and overall length for a quotation.
H160CS Tool Chisel for Hydraulic Breaker Hammer
HUILIAN supplies replacement tool chisels for H160CS. The H160CS drawing uses a 160 mm main body and a slightly smaller 158 mm rear end around opposed recess outlines. Its 148 mm span, 199 mm rear reference and 112 mm reduced section form a dedicated CS profile.

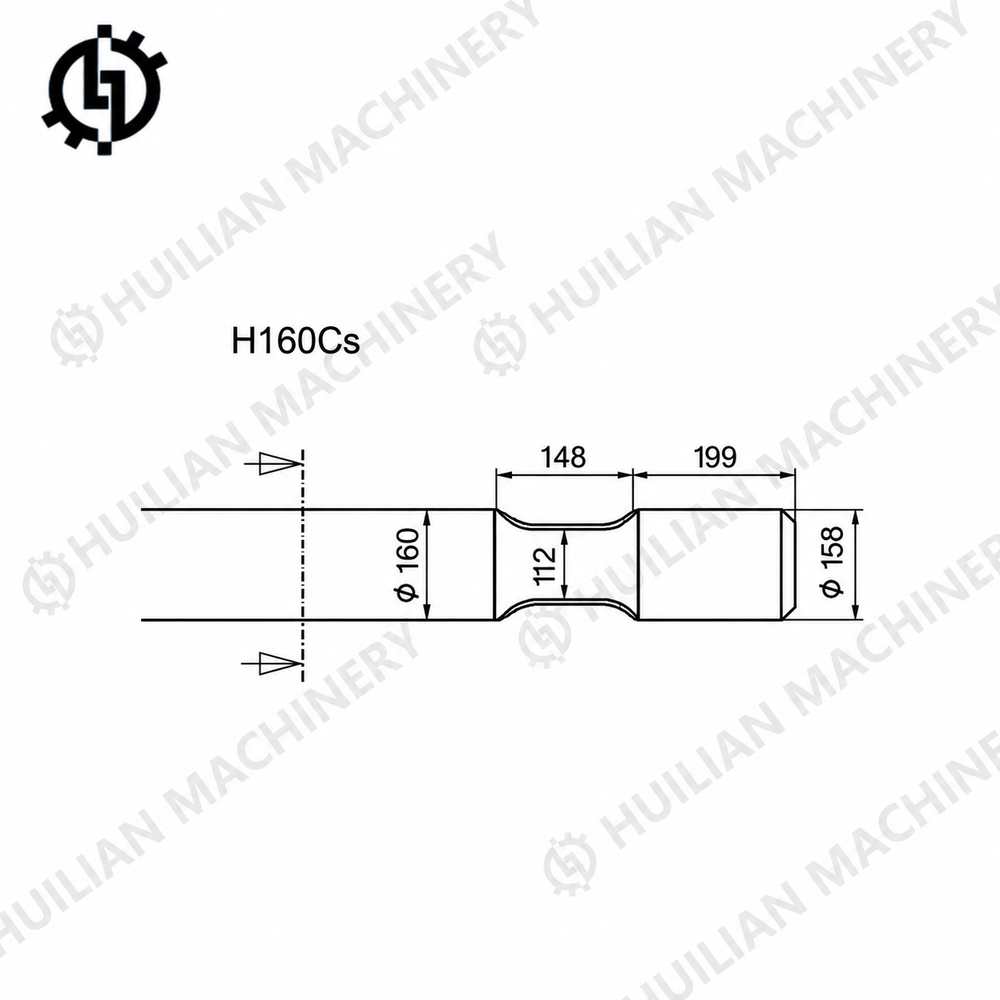

H160CS: Separate 160 mm Body and 158 mm Rear-End References
- Keeping 160 mm and 158 mm as distinct measurements preserves the explicit diameter difference shown in the drawing.
- The 148 / 199 mm axial pattern and 112 mm reduced section distinguish H160CS from H160, which has a 190 mm span and 136 mm rear reference.
- The rear profile can be checked separately from the working tip and length, allowing the quotation to identify the retaining arrangement and selected working-end specification.
Product Specifications and Identification
| Specification | Details |
|---|---|
| Supplier brand | HUILIAN |
| Intended breaker references | H160CS; use the exact brand, model plate, serial number and installed configuration |
| Model labels for identification | H160CS |
| Part name | Hydraulic breaker tool chisel / replacement working tool |
| Main-body diameter reference | 160 mm |
| Rear-end diameter reference | 158 mm |
| Retaining and rear references | 160 mm main-body reference; 158 mm rear-end diameter; 148 mm axial retaining-profile span; 199 mm rear reference; 112 mm reduced-section callout. Values are drawing references; confirm tolerances and configuration separately. |
| Illustrated retaining outline | Opposing recess outlines shown around the reduced section; compare both sides of the old tool. |
| Tip and overall length | Confirm separately; the rear-shank drawing does not specify the complete working-end shape or overall length. |
| Quotation information | Send the old part number where available, photos, required quantity and destination. Price, availability, lead time, final dimensions and supplied components are confirmed in the quotation. |

H160CS Spare Parts and Part Numbers
| Component | Identification for Quotation |
|---|---|
| Tool chisel for H160CS | Check the 160 mm main-body reference, 158 mm rear end, 148 mm retaining span and 199 mm rear reference with the old part number and photographs. |
| Related maintenance components | Identify the tool retainer, upper and lower bushings, dust seal and piston separately. Their part numbers are not established by this chisel drawing. |
Fitment and Ordering Checklist for H160CS
For H160CS, check the 160 mm body reference, 158 mm rear-end reference, 148 mm retaining span, 199 mm rear reference and 112 mm reduced section. Photograph both sides of the retaining region. Confirm the exact model suffix and old-tool configuration.
- Provide the H160CS breaker model plate, serial number and old-tool photographs, including the rear end and retaining region.
- Check the 160 mm main-body reference, 158 mm rear-end diameter, 148 mm span, 199 mm rear reference and 112 mm reduced section.
- Confirm tool-guide and retainer configuration, dimensional tolerances, working tip, overall length and tip orientation.
- Specify quantity and destination so the quotation can confirm the selected tool and any separately ordered maintenance components.
Related H160CS Spare Parts
A H160CS maintenance enquiry can include tool retainer, bushings, dust seal and piston. Inspect these components against the breaker service requirements and identify each requested part separately. The chisel and related components are supplied as confirmed in the quotation.
Other Hydraulic Breaker Hammer Spare Parts of Our Factory
Hydraulic Breaker Model:
B6 B8 B20 B30 B35 H35 H45S H50 H50S H55DS H63 H63S H65DS H70 H70S H90 H90C H90CS H100 H100S H115 H115S H120 H120S H120CS H130 H130C H130S H140 H140C H140DS H140S H140CS
H160 H160CS H160S H160DS H170 H180 H180DS H180S H195S
Our factory can manufacture hydraulic breaker spare parts. The model range above is supplied for parts enquiries; each component must be matched to its own brand, model and breaker configuration. Send the relevant drawing or part number, quantity and material requirements so the manufacturing specification and quotation can be confirmed.
| Part Type | Part Type | Part Type | Part Type |
|---|---|---|---|
| Back Head | Front Head | Breaker Cylinder | Through Bolt/Tie Rod |
| Seal Kit | Diaphragm/Membrane | Rod Pin | Stop Pin |
| Upper Bushing/Inner Bush/Chisel Bush | Accumulator | Sleeve Valve | Piston Ring |
| Chisel/Tool | Thrust Ring | Moil Chisel | Piston |
| V-Wedge Chisel | Universal Chisel | Flat Chisel | Damper/Shock Absorber |
| H-Wedge Chisel | Lower Bushing/Outer Bush/Front Cover | Rubber Pad | Side Bolt |
| Charging Valve | N2 Gas Charging Kit | Gas Bottle | Lock Pin |

Frequently Asked Questions
Which dimensions identify the H160CS chisel?
160 mm main-body reference; 158 mm rear-end diameter; 148 mm axial retaining-profile span; 199 mm rear reference; 112 mm reduced-section callout. Values are drawing references; confirm tolerances and configuration separately. For H160CS, check the 160 mm body reference, 158 mm rear-end reference, 148 mm retaining span, 199 mm rear reference and 112 mm reduced section. Photograph both sides of the retaining region. Confirm the exact model suffix and old-tool configuration.
What is distinctive about this H160CS tool profile?
Keeping 160 mm and 158 mm as distinct measurements preserves the explicit diameter difference shown in the drawing. The 148 / 199 mm axial pattern and 112 mm reduced section distinguish H160CS from H160, which has a 190 mm span and 136 mm rear reference.
Which tip and overall length should I order for H160CS?
The supplied H160CS drawing shows the rear shank and retaining region. It does not establish the complete working tip or overall tool length. Specify the required length, application, selected moil, wedge or blunt tip and orientation for confirmation in the quotation.
Can a H160CS enquiry include related maintenance parts?
Enquire separately about the tool retainer, upper and lower bushings, dust seal and piston for H160CS. Provide a part reference or photos and quantity for each item. The quotation confirms the selected components and packing list.
Request a Quote
Send your H160CS chisel enquiry with the old part reference where available, the 160 / 158 mm diameter checks, retaining-profile measurements, photographs, selected tip, overall length, quantity and destination. HUILIAN will confirm the replacement specification and quotation.
