SOOSAN SB100 Side Bolt for Hydraulic Breaker

HUILIAN replacement side bolt for SOOSAN SB100

HUILIAN replacement side bolt for the SOOSAN SB100 hydraulic breaker. This listing covers the side or short bolt shown for the breaker housing. Identify its actual mounting position and match the thread and shoulder before ordering. Send the model plate, old part photos, overall length, thread diameter and pitch, threaded length, shoulder diameter and head or nut interface, quantity and destination for specification confirmation and quotation.

Brand Name
Huilian
Part Name
Side Bolt / breaker bracket bolt / hydraulic hammer short bolt
Suitable for Breaker Brand
SOOSAN
Breaker Model
SB100 — confirm generation, serial and dimensions
Related Parts
bracket, housing, nuts, washers and rubber dampers
Position
Bracket or housing fastening position; confirm with old part
Get a free quote
Details
Shipping Policy
Technical Service
After-Sales Guarantee

SOOSAN SB100 Side Bolt — breaker bracket bolt / hydraulic hammer short bolt

HUILIAN supplies replacement side bolt parts for the SOOSAN SB100 hydraulic breaker used on excavator rock hammer attachments. This listing covers the side or short bolt shown for the breaker housing. Identify its actual mounting position and match the thread and shoulder before ordering.

Product Description

Specification Details
Supply brand HUILIAN replacement part
Breaker model SOOSAN SB100
Part name Side Bolt; breaker bracket bolt / hydraulic hammer short bolt
Assembly position Bracket or housing fastening position; confirm with old part
Part identification Send the old part number or dimension drawing so we can confirm the correct specification for your enquiry.
Measurements to provide overall length, thread diameter and pitch, threaded length, shoulder diameter and head or nut interface
Ordering details Send quantity and destination. Price, availability, lead time, packing and supplied components are confirmed in the quotation.

Product Photos

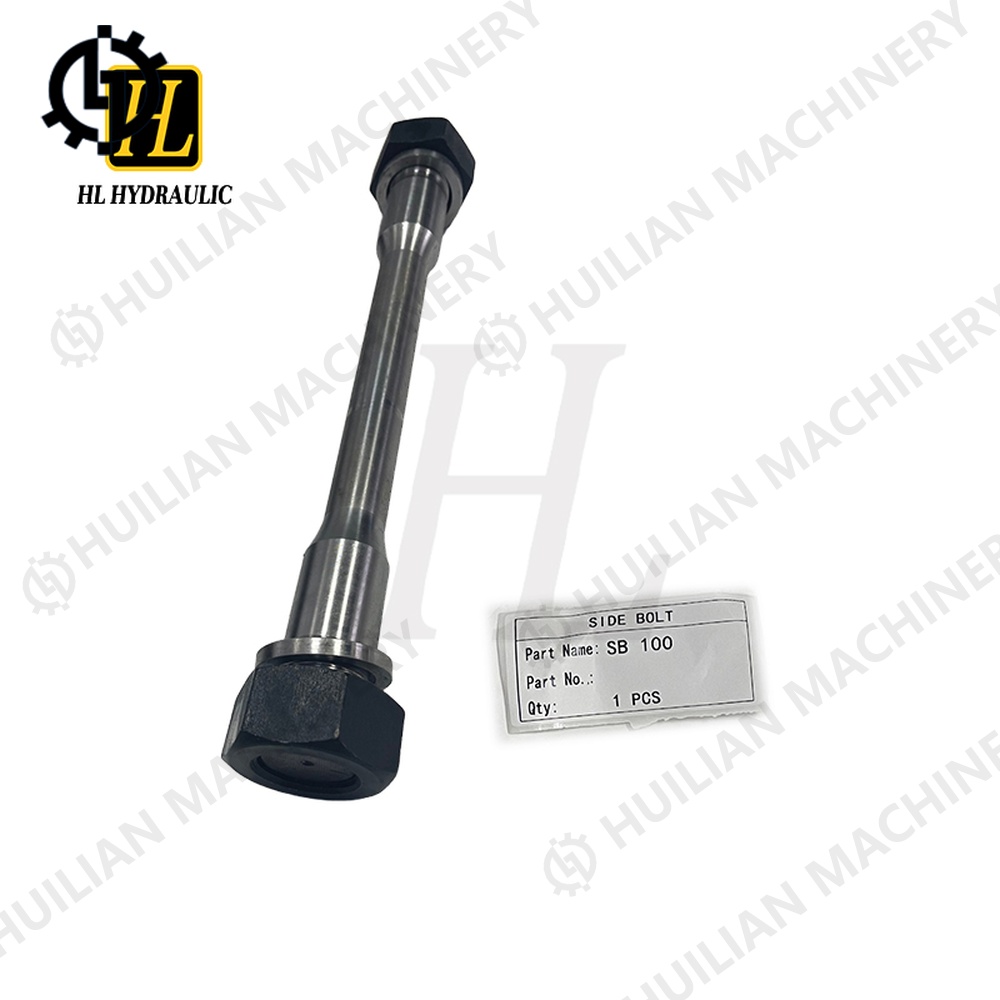

SOOSAN SB100 side bolt HUILIAN replacement part view 1

SOOSAN SB100 side bolt HUILIAN replacement part view 2

SOOSAN SB100 side bolt HUILIAN replacement part view 3

SOOSAN SB100 Spare Parts and Part Numbers

Confirm the breaker serial number, assembly version and old-part dimensions before ordering. Different references identify separate parts or versions.

Component Part Reference Assembly Item
Back Head E91105 1
Charging Valve C51191 2
Cylinder E91101 4
Piston E91136 12
Front Head E91137 24
Rod Pin E91119 26
Stop Pin E91121 27
Front Head Pin E91120 29
Ring Bush SSE91111 30
Front Cover SSE91212 31
Front Cover SSE91122 31-1
Front Cover SSE91128 31-2
Rod (Moil Point) SSE91113 32
Through Bolt E91152 34
Diaphragm U81253 52-4

Fitment and Ordering Checklist

  1. Send the breaker model plate and serial number, plus photos showing the old part and its installed position.
  2. Measure overall length, thread diameter and pitch, threaded length, shoulder diameter and head or nut interface.
  3. A side bolt and a main body through bolt have different duties and dimensions. Send the old bolt and mounting position photos.
  4. Specify the quantity, destination and any additional components required. Check the confirmed specification and packing details in the quotation.

Related SOOSAN SB100 Spare Parts

For a wider maintenance order, enquire about bracket, housing, nuts, washers and rubber dampers. Components are supplied separately unless the quotation specifies a set.

Other Hydraulic Breaker Hammer Spare Parts of Our Factory

Our factory can manufacture the hydraulic breaker spare parts listed below. Send your breaker model, part number or drawing, required quantity and material requirements so we can confirm the manufacturing specification and quotation.

Part Type Part Type Part Type Part Type
Back Head Front Head Breaker Cylinder Through Bolt/Tie Rod
Seal Kit Diaphragm/Membrane Rod Pin Stop Pin
Upper Bushing/Inner Bush/Chisel Bush Accumulator Sleeve Valve Piston Ring
Chisel/Tool Thrust Ring Moil Chisel Piston
V-Wedge Chisel Universal Chisel Flat Chisel Damper/Shock Absorber
H-Wedge Chisel Lower Bushing/Outer Bush/Front Cover Rubber Pad Side Bolt
Charging Valve N2 Gas Charging Kit Gas Bottle Lock Pin

HUILIAN factory hydraulic breaker spare parts range

Frequently Asked Questions

How do I identify the correct SOOSAN SB100 side bolt?

Send the old part number or dimension drawing so we can confirm the correct specification for your enquiry. Provide a model plate photo, old-part photos and overall length, thread diameter and pitch, threaded length, shoulder diameter and head or nut interface.

What measurements are needed for a SB100 side bolt order?

Send overall length, thread diameter and pitch, threaded length, shoulder diameter and head or nut interface, together with quantity and destination. A side bolt and a main body through bolt have different duties and dimensions. Send the old bolt and mounting position photos.

Which related SB100 breaker parts can I enquire about?

You can enquire about bracket, housing, nuts, washers and rubber dampers. Confirm each part and quantity separately; the quotation specifies the supplied components.

Is this SOOSAN SB100 part supplied as a HUILIAN replacement?

Yes. This listing is for a HUILIAN replacement part enquiry for the stated SOOSAN model. The model and any part references identify the intended application; the selected specification is confirmed against your old part.

Request a Quote

Send your SOOSAN SB100 model plate, old side bolt photos, measurements, part number where available, required quantity and destination. HUILIAN will confirm the specification and quotation for your order.
