How Does a Hydraulic Breaker Work? Function, Parts & More

Hydraulic Breakers in Modern Excavation

Hydraulic breakers, also known as hydraulic hammers, are crucial attachments in the construction and mining industries. These powerful tools are used for breaking rocks, demolishing concrete, and countless other tough tasks. But how does a hydraulic breaker work, and why is this tool essential for heavy-duty applications? In this comprehensive guide from Huilian Machine—a leading supplier of excavator parts and OEM solutions based in China—we’ll explain the working principles, main components, and commercial advantages of hydraulic breakers for your excavator business.

Understanding Hydraulic Breakers: Core Functions and Purpose

Hydraulic breakers are percussion hammer devices that attach to hydraulic excavators for tasks requiring high-impact force. Their primary use is to break up hard materials such as rocks, asphalt, and reinforced concrete, turning monumental tasks into manageable projects on construction sites, roadworks, and mining operations.

How Does a Hydraulic Breaker Work? The Science Behind the Force

At the heart of every hydraulic breaker is hydraulic energy. This energy originates in the excavator’s hydraulic system. When the breaker is activated, the excavator’s pump sends hydraulic fluid through high-pressure lines into the breaker’s cylinder. The hydraulic fluid exerts tremendous pressure on the internal piston, rapidly driving it downward.

This movement converts hydraulic force into mechanical energy—the repeated hammering action you see at the breaker’s chisel tip. Through this process, the breaker delivers thousands of blows per minute, effectively shattering and fracturing materials with precision.

Key Components of a Quality Hydraulic Breaker

The Chisel

The chisel is the business end of the hydraulic breaker, the steel tool that directly impacts the material. Breaking, cutting, or chiseling efficiency depends on the chisel’s design and hardness.

The Piston

Acting as the breaker’s internal hammer, the piston moves up and down inside a liner, pushed by hydraulic pressure. Its strength and movement speed define the breaker’s power and frequency.

Cylinder

The cylinder houses the piston, directing and containing the hydraulic energy as it cycles through the breaker process.

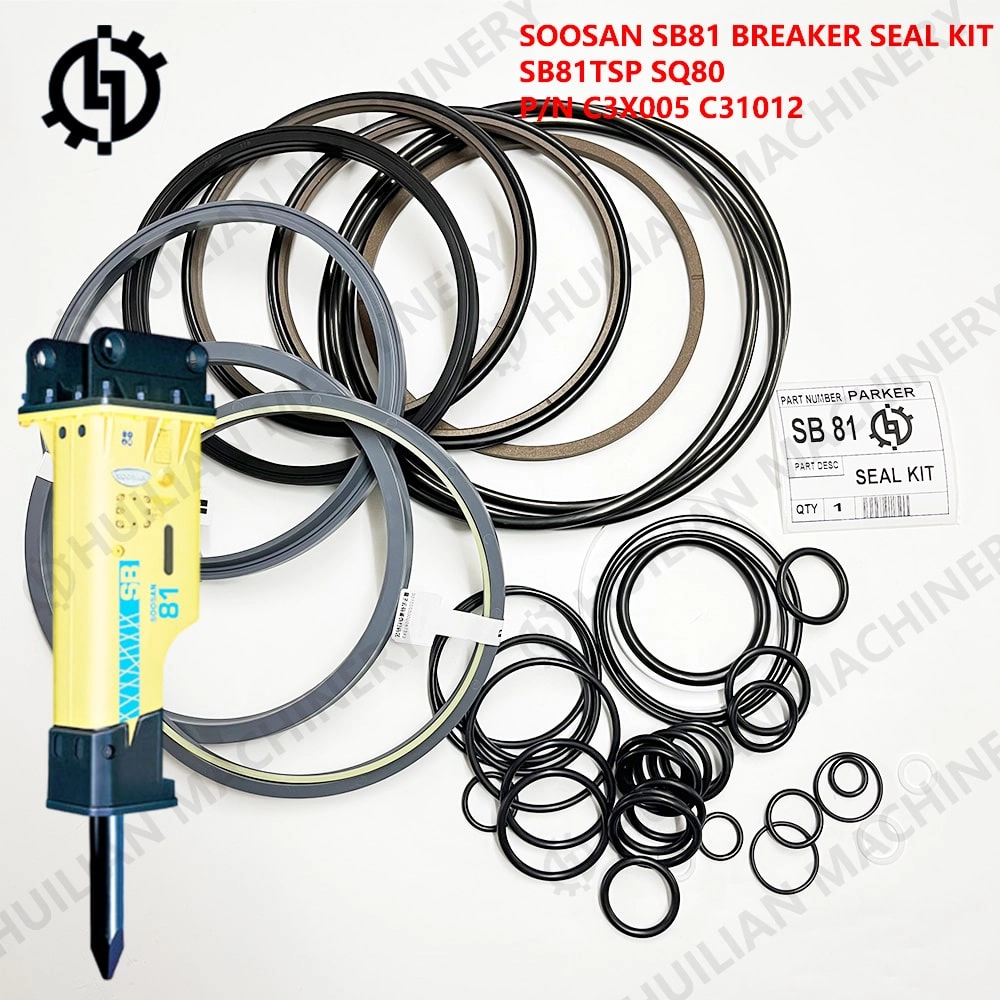

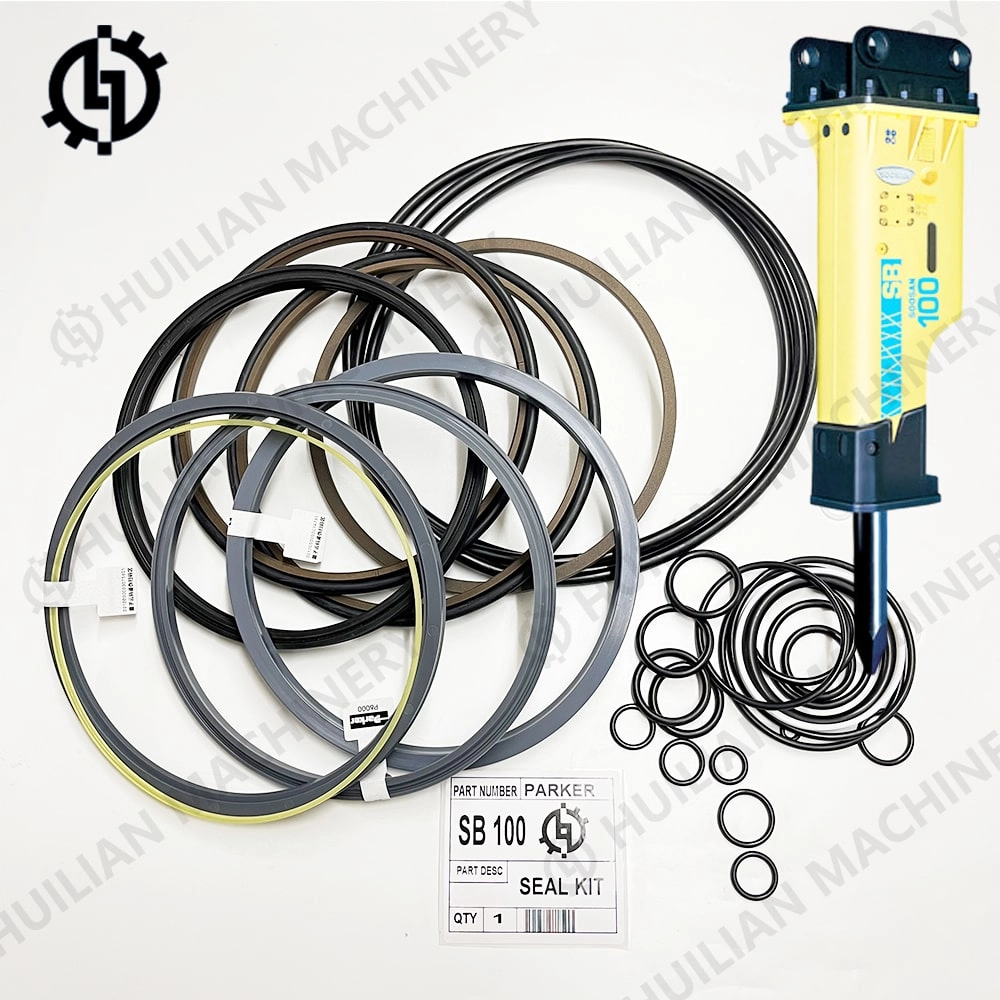

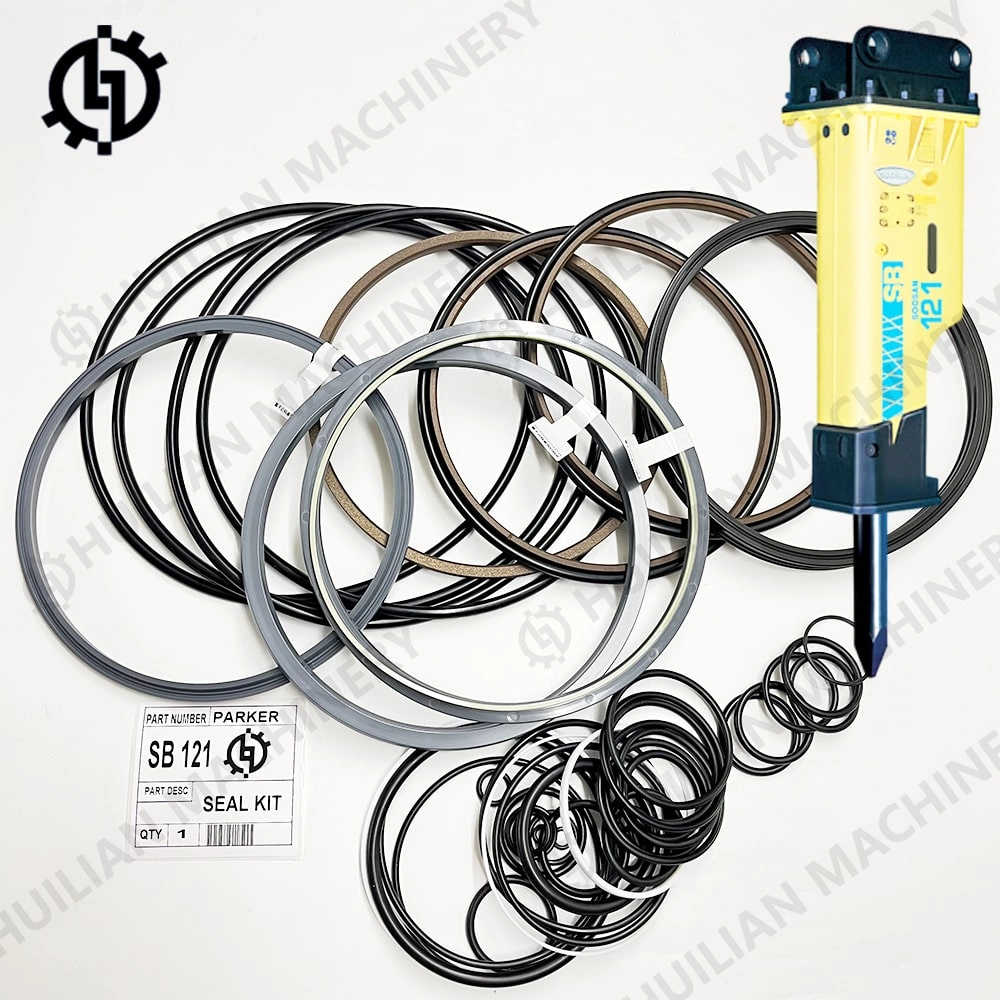

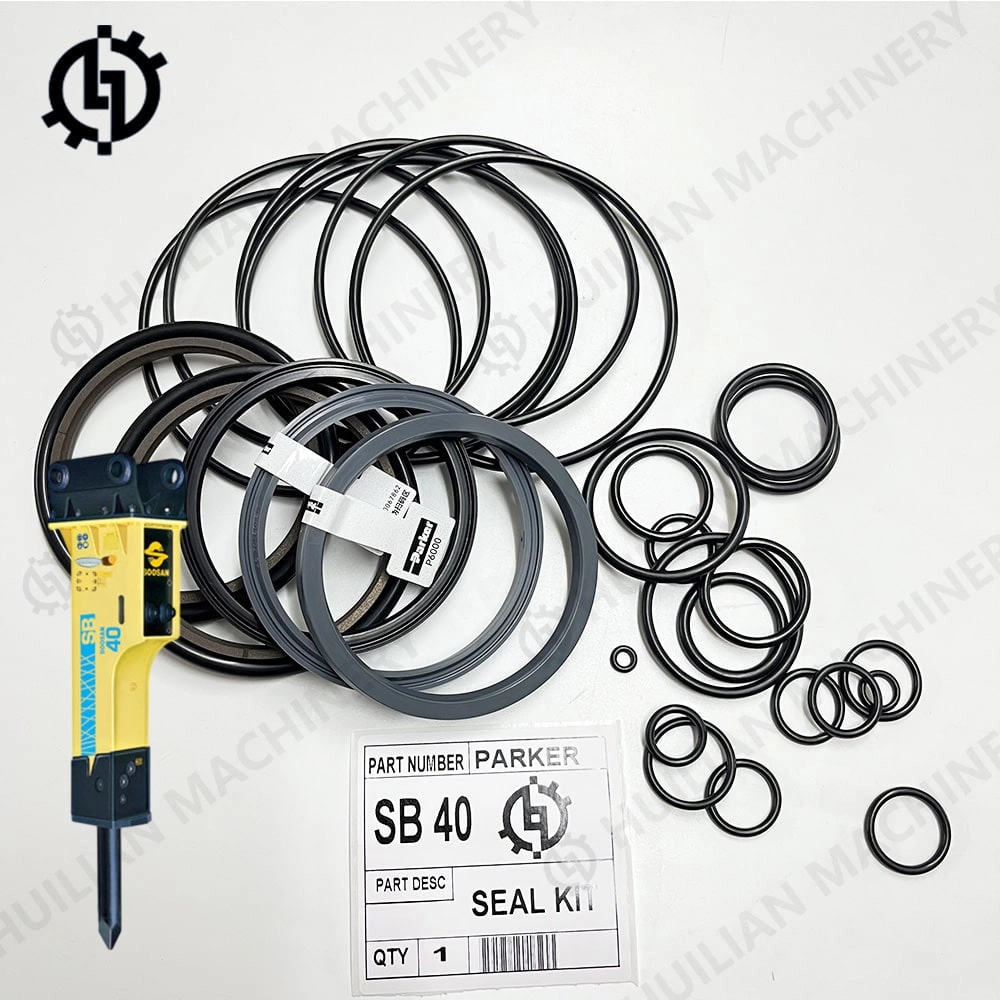

Seals and Seal Kits

To keep the high-pressure hydraulic system efficient and to protect sensitive internal components, specialized seals and seal kits are critical. These keep out contaminants and prevent hydraulic leaks.

Diaphragm

Placed in the accumulator, the diaphragm separates nitrogen gas from hydraulic oil—key for efficient energy transfer and extra impact energy.

Bushings and Liners

Bushings and liners prevent excessive wear by providing a replaceable, durable surface within moving parts. Their maintenance ensures long-lasting performance and minimizes downtime.

Main Through Bolts, Side Bolts, and Retainer Bars

These heavy-duty fasteners keep the hydraulic breaker’s critical parts properly aligned and securely attached under intense vibration and force.

Hydraulic Flow and Pressure: The Driving Power

For a hydraulic breaker to work effectively, the host excavator must provide the correct hydraulic flow and pressure. Most breakers are designed for specific flow ranges, with incorrect flow or pressure leading to inefficiency or damage. Huilian Machine offers technical guidance and support for matching hydraulic breakers with your machinery for optimal performance.

Types of Hydraulic Breakers: Choosing the Right Tool

Hydraulic breakers vary in size and configuration to suit different excavation requirements. From light-duty models for urban demolition to large, heavy-duty breakers for quarrying, selecting the appropriate type ensures efficiency and safety on site. Huilian supplies hydraulic breaker hammers compatible with popular excavator brands and models worldwide.

Benefits of Using Hydraulic Breakers in Modern Construction

Increased Productivity

Hydraulic breakers perform demolition and breaking tasks far faster than manual or pneumatic methods, accelerating project completion and lowering labor costs.

Versatile Applications

From trenching and foundation excavation to removing road obstructions or processing materials, hydraulic breakers have broad usage across industries.

Reduced Manual Labor

By mechanizing heavy demolition and breaking, hydraulic breakers minimize operator fatigue and health risks.

Compatibility with Multiple Machines

Modern hydraulic breakers are designed as attachments for excavators, backhoe loaders, and other machinery—boosting your equipment’s versatility.

How to Maintain a Hydraulic Breaker for Peak Performance

Proper maintenance is essential for maximizing the life of your hydraulic breaker. Huilian Machine recommends:

- Regular inspection and replacement of wear parts such as chisels, bushings, and seal kits.

- Checking hydraulic hoses for leaks or damage before operation.

- Monitoring and adjusting nitrogen gas pressure in the accumulator as needed.

- Lubricating critical connection points to prevent seizing and wear.

- Replacing diaphragms and pistons at the first sign of wear or inefficiency.

Using OEM-quality parts from Huilian ensures reliability, compatibility, and long-term protection for your investment.

Why Choose Huilian Machine for Hydraulic Breaker Parts?

Industry Expertise Since 2005

With nearly two decades of experience, Huilian Machine has become a global leader in supplying excavator parts, including complete hydraulic breaker hammers, chisels, seals and seal kits, pistons, diaphragms, and more.

Global Reach and Local Support

Our products are exported to over 90 countries worldwide, including the United States, Canada, France, Germany, Spain, Italy, Russia, and beyond. We maintain a responsive sales and after-sales service team for rapid customer support—no matter your location.

Comprehensive Product Range

Huilian Machine carries replacement parts for all popular hydraulic breaker brands and models, enabling seamless repairs and upgrades. Whether you need OEM components or tailored solutions to meet specific needs, our in-house R&D and quality control teams ensure every part meets the highest standards.

Commitment to Sustainability and Growth

We’re dedicated to fostering sustainable development across the excavator parts industry and are actively seeking global distribution partners. Join us to help build a better, more productive future in construction and earthmoving.

Huilian’s OEM Service: Tailored to Your Needs

In addition to off-the-shelf products, Huilian offers OEM customization services. Our skilled technicians and design teams collaborate closely with clients to create parts that match Huilianing, performance requirements, and cost objectives.

Common Issues and Troubleshooting for Hydraulic Breakers

Loss of Impact Power

Often caused by low hydraulic pressure, faulty seals, or worn pistons. Routinely check your breaker’s condition and replace worn components using Huilian’s quality spares.

Hydraulic Oil Leaks

Leaking oil often points to damaged seals or aged hoses. Use the right seal kits for your breaker model and inspect connections before every operation.

Abnormal Noise or Vibration

Unusual sounds may signal internal misalignment, worn bushings, or loose bolts. Ensure all retainers, side bolts, and through bolts are tightened and components replaced as needed.

Chisel Wear and Failure

The chisel endures the most stress and will eventually dull or crack. Swapping it for a new one from Huilian’s inventory ensures uninterrupted productivity.

Frequently Asked Questions

What exactly is a hydraulic breaker?

A hydraulic breaker (or hydraulic hammer) is an excavator attachment that uses hydraulic power to break rocks, concrete, and other tough materials.

How does a hydraulic breaker work?

It works by channeling high-pressure hydraulic fluid from the excavator to a cylinder, moving a piston up and down to strike a chisel repeatedly and fracture materials.

What are the main parts of a hydraulic breaker?

Key components include the chisel, piston, cylinder, seals, diaphragm, bushings, through bolts, and retainer bars—all of which are available from Huilian.

How do I know if a hydraulic breaker is compatible with my excavator?

Check the breaker’s required hydraulic flow and pressure against your excavator’s specifications, or consult Huilian’s technical support for guidance.

How often should I replace parts in my hydraulic breaker?

Regular maintenance is crucial—replace wear parts such as chisels, seals, bushings, and pistons as soon as you notice performance drops or visible wear.

Does Huilian offer OEM and after-sales support?

Yes. Huilian Machine specializes in OEM part manufacturing, competitive pricing, and comprehensive after-sales service worldwide.

Where can I buy hydraulic breaker parts from Huilian?

Contact our sales team directly or visit our website to order genuine hydraulic breaker parts for all major brands and models.

Partner with Huilian Machine for Reliable Hydraulic Breaker Solutions

Hydraulic breakers are essential for any modern excavation, mining, or demolition project. Understanding how a hydraulic breaker works—and keeping it in optimal condition—is vital for your equipment’s performance, productivity, and ROI. Huilian Machine is proud to support partners around the globe with genuine, high-quality excavator parts backed by a skilled team and years of expertise. Contact us today to learn more or join our worldwide network of distributors for hydraulic breaker hammers and components.
