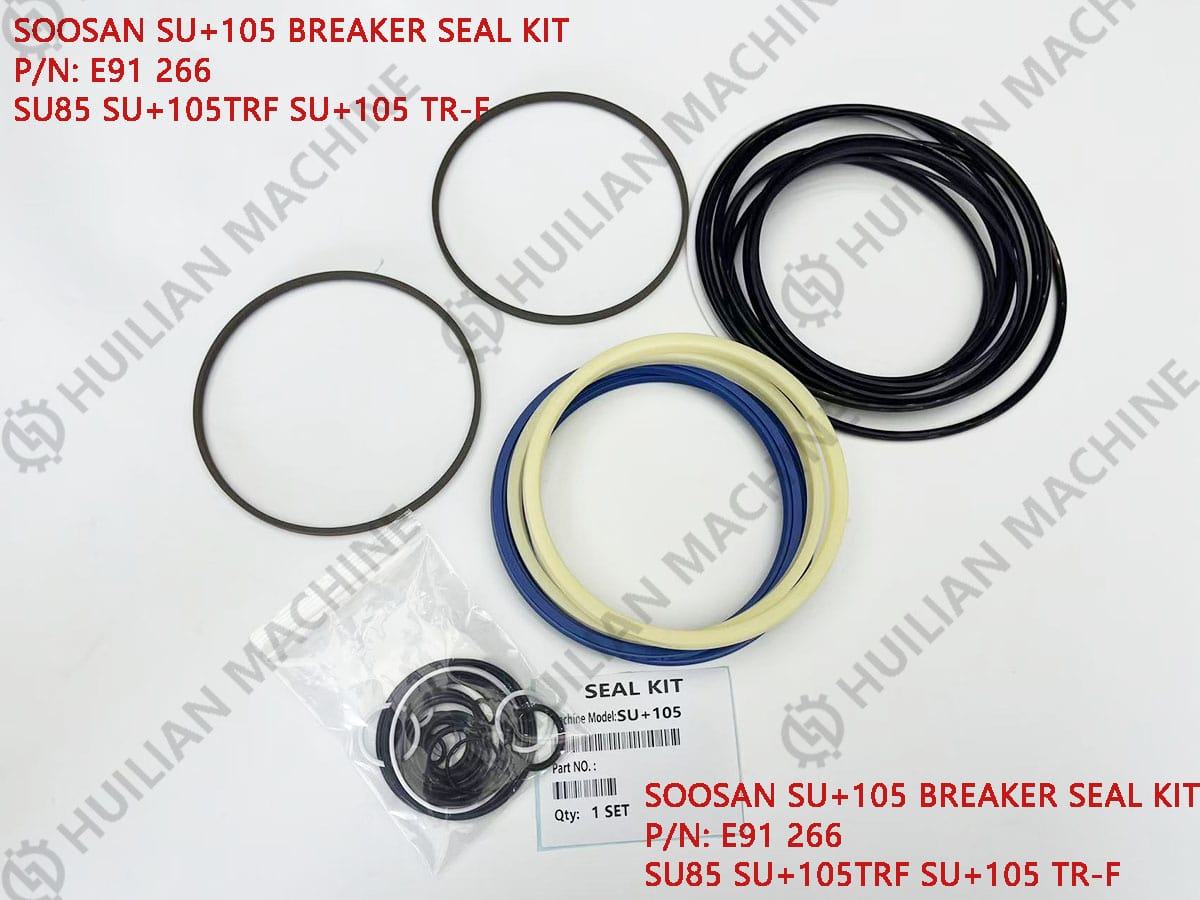

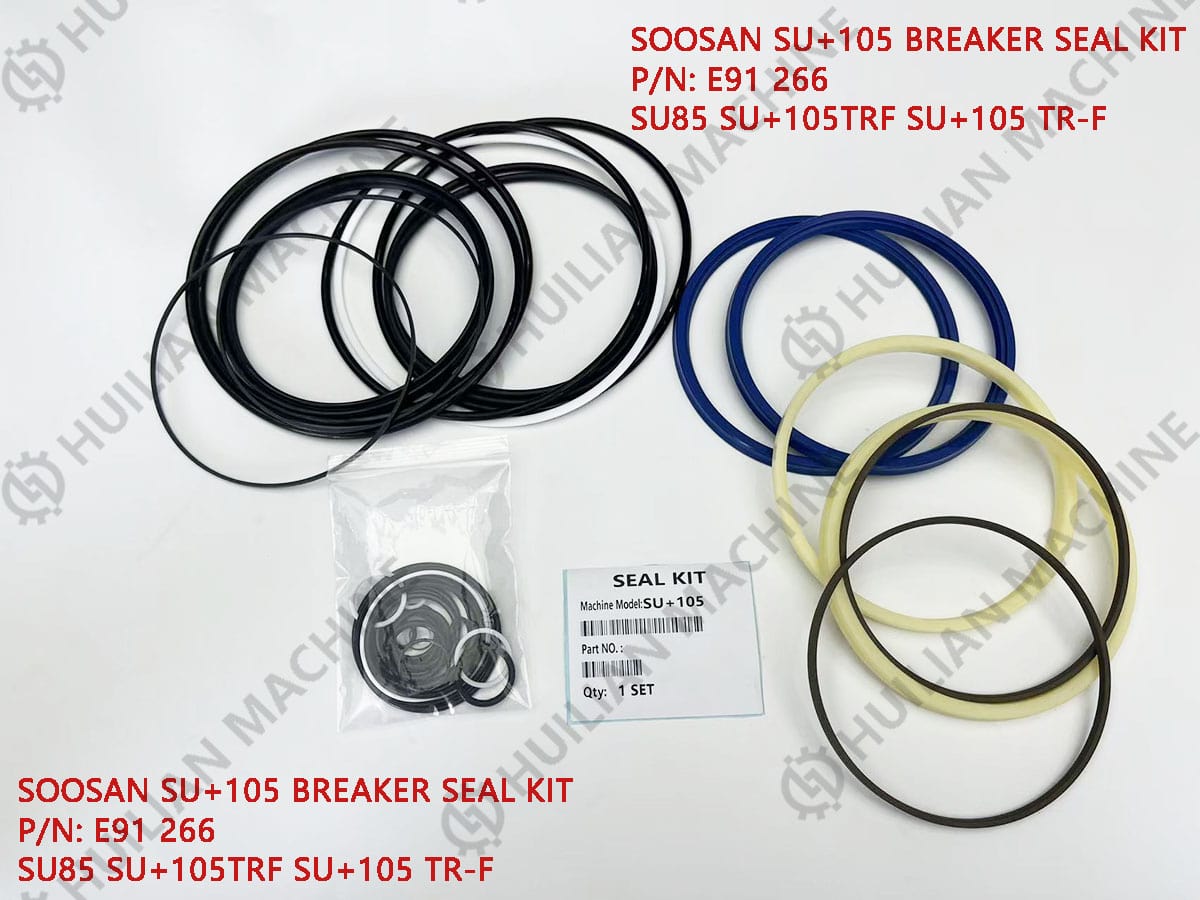

E91 266 SOOSAN SU+105 TR-F SU+105 Breaker Seal Kit NOK SU+105TRF SU105 Oil Repair Kit For Excavator Attachment Hydraulic Rock Hammer Spare Parts
Product Description
| Parts Model | SOOSAN SU+105 SU+105 TR-F SU+105TRF SU105 |
| Application | Soosan SU+105 SU+105 TR-F SU+105TRF SU105 Excavator Attachment Engineering Construction Machinery Hydraulic Breaker Hammer Spare Parts |
| Part Name | SOOSAN Hydraulic Rock Breaker SU+105 SU+105 TR-F SU+105TRF SU105 NOK Oil Seal Kit Excavator Parts Hammer Repair Kit |
| Position | Hydraulic Breaker Piston Systerm |
| Parts Number | E91 266 |
| Material | NBR+FKM+PTFE+PU |
| Brand | HUILIAN, PARKER, NOK, SKF, Bookwang B.C.T etc or as required |
| Package Details | Carton, Wooden Case, or as Required, or Design with your Logo. |
| Delivery Time | 1-5 days |
| Shipment | By Air, Sea, Express mail, etc. |
| Payment | PayPal, Western Union, Money Gram, T/T in advance, L/C at sight, Alipay etc |
1. Seal Kit have high cost performance
2. Seal kit has a large inventory and can be shipped quickly
3. Oil seal is made of high quality material and excellent sealing performance
4. Seal Kit is exactly matches SU+105 hydraulic breaker (unless otherwise specified)
--High Impact Energy: The SU+105 excavator breaker boasts enhanced impact energy, making it an excellent choice for crushing hard rock and concrete. Its high impact force effectively improves work efficiency and reduces working time.
--High Crushing Efficiency: The SU+105 hydraulic hammer's powerful crushing capacity makes it a perfect match for large-scale crushing tasks, particularly challenging demolition and rock mining.
--High-Quality Materials: The SU+105 hydraulic breaker is constructed from high-strength, wear-resistant materials, ensuring the hydraulic breaker can withstand long-term, high-load operations without wear or damage.
--Superior Durability: The SU+105 excavator rock breaker's optimized structural design maintains stable performance even under prolonged, high-intensity impacts, extending its overall service life.
3. Advanced Hydraulic System and High Performance
--Optimized Hydraulic System: The SU+105 hydraulic breaker is equipped with a highly efficient hydraulic system that maximizes energy transfer efficiency, ensuring stable and powerful power during operation.
--Intelligent Control Technology: The hydraulic system is equipped with an intelligent control system that automatically adjusts operating parameters based on the working environment and conditions, improving efficiency and saving fuel.
SOOSAN Hydraulic Breaker Models List:
| SB10 | SB81N | SB149P | SB30TS-P | SB140TS-P | SB40Ⅱ TS-P | SB50 TR-F | SH700 | ST200 | SQ60 |
| SB20 | SB81A | SB150 | SB35TS-P | SB151TS-P | SB43Ⅱ TS-P | SB60 TR-F | SH18G | ST300 | SQ70 |
| SB30 | SB81 | SB151 | SB40TS-P | SB10Ⅱ | SB10Ⅱ SSL | SB70 TR-F | SH20G | ET200 | SQ80 |
| SB35 | SB87 | SB152 | SB43TS-P | SB20Ⅱ | SB20Ⅱ SSL | SB81 TR-F | SH35G | ET300 | SQ100 |
| SB40 | SB100 | SB157 | SB45TS-P | SB30Ⅱ | SB30Ⅱ SSL | SB100 TR-F | SH40G | SQ10 | SQ120 |
| SB43 | SB120 | SB160 | SB50TS-P | SB35Ⅱ | SB35Ⅱ SSL | SB121 TR-F | SU+55 TR-F | SQ20 | SQ130 |
| SB45 | SB121 | SB161 | SB60TS-P | SB40Ⅱ | SB40Ⅱ SSL | SB130 TR-F | SU+85 TR-F | SQ30 | SQ140 |
| SB50 | SB130 | SB170 | SB70TS-P | SB43Ⅱ | SB43Ⅱ SSL | SB147 TR-F | SU+105 TR-F | SQ35 | SQ150 |
| SB57 | SB140 | SB175 | SB81TS-P | SB10Ⅱ TS-P | SB40Ⅱ BH | SB157 TR-F | SU+125 TR-F | SQ40 | SQ180 |
| SB60 | SB140P | SB200 | SB100TS-P | SB20Ⅱ TS-P | SB43Ⅱ BH | SB200 TR-F | SU+145 TR-F | SQ43 | SQ181 |
| SB70 | SB147 | SB10TS-P | SB121TS-P | SB30Ⅱ TS-P | SB40Ⅱ BH-TS | SH200 | SU+155 TR-F | SQ45 | |
| SB80 | SB147P | SB20TS-P | SB130TS-P | SB35Ⅱ TS-P | SB43Ⅱ BH-TS | SH400 | SU+165 TR-F | SQ50 |
| NO | PART NAME | P/N | Q'ty | NO | PART NAME | P/N | Q'ty | |
| CYLINDER SET | C31 711 | 1SET | SEAL KIT | E91 266 | 1Set | |||
| 5 | PISTON | C31 513 | 1EA | 9 | O-RING | 2851207 | 1 | |
| 6 | CYLINDER | C31 410 | 1EA | 10 | O-RING | 2851210 | 1 | |
| 9 | O-RING | 2851207 | 1EA | 21 | O-RING | 2851207 | 1 | |
| 10 | O-RING | 2851210 | 1EA | 24 -2 | O-RING | 2851051 | 1 | |
| 11 | VALVE PLUG | C31 172 | 1EA | -3 | BACK-UP RING | 2844901 | 1 | |
| 12 | VALVE | C31 171 | 1EA | 27 | O-RING | 2851234 | 4 | |
| 13 | VALVE SLEEVE | C31 173 | 1EA | 30 | O-RING | 2851038 | 2 | |
| 14 | GREASE NIPPLE | 2700411 | 1EA | 32 | O-RING | 2851201 | 4 | |
| 24 | ACCUMULATOR ASS'Y | C31 434 | 1SET | 34 | O-RING | 2851010 | 3 | |
| 25 | HELISERT COIL | 4130039 | 4EA | 36 | BACK-UP RING | 2841217 | 2 | |
| 26 | SOCKET BOLT | 4011373 | 4EA | 39 | O-RING | 2850024 | 3 | |
| 27 | O-RING | 2851232 | 4EA | 43 | U-PACKING | 2819093 | 2 | |
| 28 | AIR CHECK VALVE | C7 1277 | 1EA | 44 | U-PACKING | 2819094 | 1 | |
| 29 | ADAPTER | C31 290 | 2EA | 45 | DUST SEAL | 2831924 | 1 | |
| 30 | O-RING | 2851038 | 2EA | 48 | STEP SEAL | 2811077 | 2 | |
| 31 | UNION CAP | 2715063 | 2EA | 49 | GAS SEAL | 2835045 | 1 | |
| 32 | O-RING | 2851201 | 4EA | 51 | BACK-UP RING | 2842201 | 1 | |
| 33 | HEX HEAD PLUG | Q11 191 | 2EA | 57 | BACK UP-RING | 2843045 | 1 | |
| 34 | O-RING | 2851010 | 3EA | 58 | BACK UP-RING | 2842331 | 1 | |
| 35 | VALVE ADJUSTER | C31 210 | 1EA | |||||
| 36 | BACK-UP RING | 2841217 | 2EA | |||||
| 37 | HEX NUT | 4101306 | 1EA | |||||
| 38 | SOCKET PLUG | C31 123 | 3EA | |||||
| 39 | O-RING | 2850024 | 3EA | |||||
| 43 | U-PACKING | 2819091 | 2EA | |||||
| 44 | U-PACKING | 2B19092 | 1EA | |||||
| 45 | DUST SEAL | 2831923 | 1EA | |||||
| 46 | UPPER BRASS RETAINER | C31 519 | 1EA | |||||
| 47 | UPPER SEAL RETAINER | C31 518 | 1EA | |||||
| 48 | STEP SEAL | 2811076 | 2EA | |||||
| 49 | GAS SEAL | 2835044 | 1EA | |||||
| 50 | SELECT VALVE | C71 309 | 1EA | |||||
| 51 | BACK-UP RING | 2842201 | 1EA | |||||
| 52 | VALVE COVER | Q31 110 | 1EA | |||||
| 53 | SELECT PIN | Q31 112 | 1EA | |||||
| 54 | RUBBER SPRING | Q31 113 | 1EA | |||||
| 55 | SPRING PIN | 4300080 | 1EA | |||||
| 56 | SOCKET BOLT | 4011058 | 4EA | |||||
| 57 | BACK-UP RING | 2843044 | 1EA | |||||
| 58 | BACK UP-RING | 2842331 | 1EA | |||||
| 59 | BLANK PLUG | N57 100 | 11EA | |||||
| 60 | BLANK PLUG | N57 103 | 1EA |

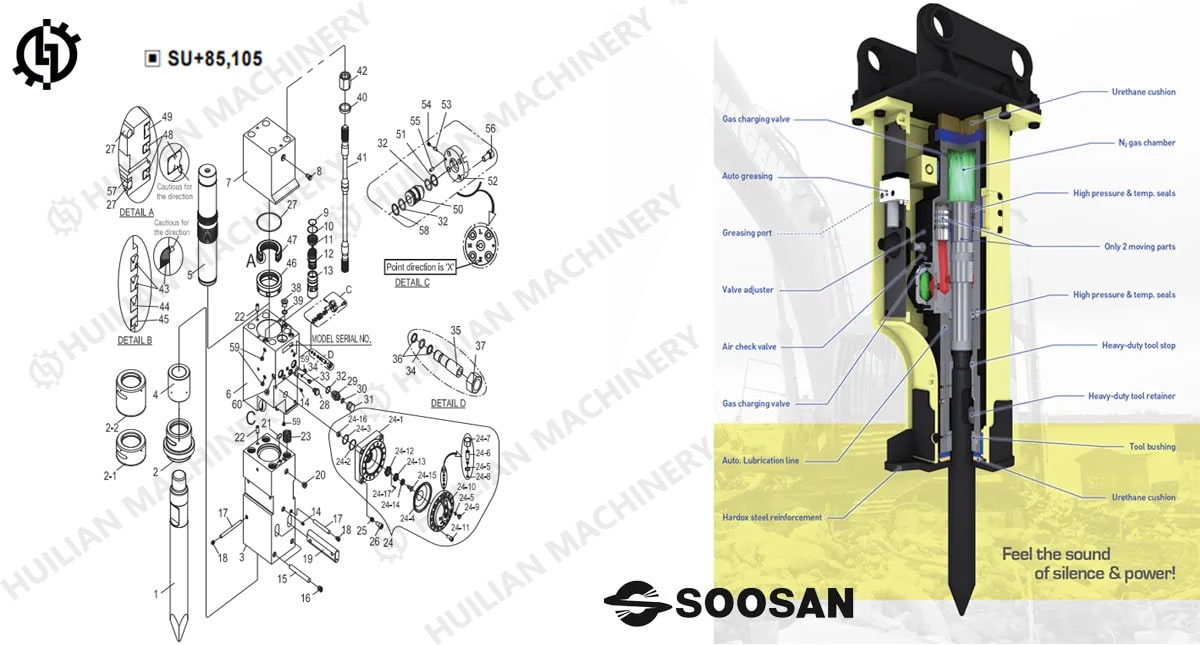

| NO | P/N | Q'ty | P/N | Q'ty | PARTS NAME | REMARK |
| C31 036 | 1Set | E91 034 | 1Set | MAIN BODY ASS’Y | ||
| 1 | L01 118 | 1 | E91 245 | 1 | ROD | |
| 2 | L01 200 | 1 | E91 198 | 1 | FRONT COVER | General EX |
| -1 | L01 123 | 1 | - | 1 | FRONT COVER | Silenced |
| -2 | L01 198 | 1 | E91 260 | 1 | FRONT COVER | TR-F, TS-P |
| 3 | C31 445 | 1 | E91 237 | 1 | FRONT HEAD | |
| 4 | L01 110 | 1 | E91 241 | 1 | RING BUSH | |
| 5 | C31 513 | 1 | E91 302 | 1 | PISTON | |
| 6 | C31 410 | 1 | E91 220 | 1 | CYLINDER | |
| 7 | C31 101 | 1 | E91 105 | 1 | BACK HEAD | |
| 8 | C51 191 | 1 | ← | 1 | CHARGING VALVE ASSEMBLY | |
| 9 | 2851207 | 1 | ← | 1 | O-RING | |
| 10 | 2851210 | 1 | ← | 1 | O-RING | |
| 11 | C31 172 | 1 | E91 109 | 1 | VALVE PLUG | |
| 12 | C31 171 | 1 | E91 107 | 1 | VALVE | |
| 13 | C31 173 | 1 | E91 108 | 1 | VALVE SLEEVE | |
| 14 | 2700411 | 2 | ← | 2 | GREASE NIPPLE | |
| 15 | E91 120 | 2 | ← | 2 | FRONT HEAD PIN | |
| 16 | D81 150 | 2 | ← | 2 | RUBBER PLUG | |
| 17 | E91 121 | 2 | C61 169 | 2 | STOP-PIN | |
| 18 | D81 151 | 2 | ← | 2 | RUBBER PLUG | |
| 19 | C31 446 | 2 | E91 119 | 2 | ROD PIN | |
| 20 | N57 103 | 1 | ← | 1 | BLANK PLUG | |
| 21 | 2851204 | 1 | 2851207 | 1 | O-RING | |
| 22 | C21 173 | 2 | ← | 2 | KNOCK PIN | |
| 23 | Q21 112 | 4 | Q41 110 | 4 | HELISERT COIL | |
| 24 | C31 434 | 1 | ← | 1 | ACCUMULATOR ASSY | |
| -1 | C31 435 | 1 | ← | 1 | ACCUMULATOR BODY | |
| -2 | 2851051 | 1 | ← | 1 | O-RING | |
| -3 | 2844901 | 1 | ← | 1 | BACK-UP RING | |
| -4 | C61 139 | 1 | ← | 1 | DIAPHRAGM | |
| -5 | 2850014 | 2 | ← | 2 | O-RING | |
| -6 | U81 266 | 1 | ← | 1 | CHARGING VALVE | |
| -7 | U81 275 | 1 | ← | 1 | O-RING CAP | |
| -8 | 2850003 | 1 | ← | 1 | O-RING | |
| -9 | U81 276 | 1 | ← | 1 | O-RING PLUG | |
| -10 | C61 140 | 1 | ← | 1 | ACCUMULATOR COVER | |
| -11 | 4011108 | 16 | ← | 16 | SOCKET BOLT | |
| -12 | C61 141 | 1 | ← | 1 | HOLDER(A) | |
| -13 | C61 142 | 1 | ← | 1 | HOLDER(B) | |
| -14 | C61 143 | 1 | ← | 1 | HOLDER© | |
| -15 | C61 144 | 1 | ← | 1 | HOLDER PIN | |
| -16 | U81 338 | 1 | ← | 1 | HOLDER NUT | |
| -17 | C61 145 | 1 | ← | 1 | CENTER PIN | |
| 25 | 4130039 | 4 | ← | 4 | HELISERT COIL | |
| 26 | 4011373 | 4 | ← | 4 | SOCKET BOLT | |
| 27 | 2851232 | 3 | 2851234 | 4 | O-RING | |
| 28 | C71 277 | 1 | ← | 1 | AIR CHECK VALVE | |
| 29 | C31 290 | 2 | ← | 2 | ADAPTER | #3 |
| 30 | 2851038 | 2 | ← | 2 | O-RING | |
| 31 | 2715063 | 2 | ← | 2 | UNION CAP | #3 |
| 32 | 2851201 | 4 | ← | 4 | O-RING | |
| 33 | Q11 191 | 2 | ← | 2 | HEX HEAD PLUG | |
| 34 | 2851010 | 3 | ← | 3 | O-RING | |
| 35 | C31 210 | 1 | ← | 1 | VALVE ADJUSTER | |
| 36 | 2841217 | 2 | ← | 2 | BACK-UP RING | |
| 37 | 4101306 | 1 | ← | 1 | HEX NUT | |
| 38 | C31 123 | 3 | ← | 3 | SOCKET PLUG | |
| 39 | 2850024 | 3 | ← | 3 | O-RING | |
| 40 | C31 140 | 4 | C61 188 | 4 | THROUGH BOLT WASHER | |
| 41 | C31 437 | 4 | E91 218 | 4 | THROUGH BOLT | |
| 42 | C31 439 | 4 | E91 234 | 4 | HEX NUT | |
| 43 | 2819091 | 2 | 2819093 | 2 | U-PACKING | |
| 44 | 2819092 | 1 | 2819094 | 1 | U-PACKING | |
| 45 | 2831923 | 1 | 2831924 | 1 | DUST SEAL | |
| 46 | C31 519 | 1 | E91 309 | 1 | UPPER BRASS RETAINER | |
| 47 | C31 518 | 1 | E91 308 | 1 | UPPER SEAL RETAINER | |
| 48 | 2811076 | 2 | 2811077 | 2 | STEP SEAL | |
| 49 | 2835044 | 1 | 2835045 | 1 | GAS SEAL | |
| 50 | C71 309 | 1 | ← | 1 | SELECT VALVE | |
| 51 | 2842201 | 1 | ← | 1 | BACK-UP RING | |
| 52 | Q31 110 | 1 | ← | 1 | VALVE COVER | |
| 53 | Q31 112 | 1 | ← | 1 | SELECT PIN | |
| 54 | Q31 113 | 1 | ← | 1 | RUBBER SPRING | |
| 55 | 4300080 | 1 | ← | 1 | SPRING PIN | |
| 56 | 4011058 | 4 | ← | 4 | SOCKET BOLT | |
| 57 | 2843044 | 1 | 2843045 | 1 | BACK-UP RING | |
| 58 | 2842331 | 1 | ← | 1 | BACK-UP RING | ENDLESS |
| 59 | N57 100 | 10 | ← | 10 | BLANK PLUG | |
| 60 | N57 103 | 1 | ← | 1 | BLANK PLUG |
Cooperative Oil Seal Kit Brand
The maintenance of hydraulic breaker seal kit mainly includes the following aspects:
1. Daily Cleaning:
After using the hydraulic hammer, its surface should be cleaned promptly, paying special attention to cleaning the oil and gas as well as the dust generated during operation.
The oil stains produced during normal operation should also be regularly removed to prevent corrosion or wear and keep the equipment clean and tidy.
2. Lubricating Maintenance:
The quality and level of hydraulic oil should be checked regularly. If necessary, replace it according to the usage conditions to ensure good lubrication.
For lubrication points, regular oil injection is required to ensure good lubrication of parts.
3. Fastening Checks:
The fastening bolts and connecting components of the hydraulic breaker are key points that need to be regularly checked. Vibration and impact during operation can easily cause bolts to loosen, so they should be regularly checked and tightened to ensure the stability and safety of the equipment.
4. Comprehensive Inspection:
Regularly conduct comprehensive inspections and maintenance on the hydraulic breaker, including checks on the oil pipes, cables, and hydraulic systems to ensure the normal operation of all components.
Potential faults should be discovered and eliminated in a timely manner to avoid inconvenience in subsequent operations.
In summary, the maintenance of hydraulic breaker repair kits covers multiple aspects such as daily cleaning, lubricating maintenance, fastening checks, and comprehensive inspection. These measures are crucial for ensuring the stable operation and extending the service life of the equipment.
Other Hydraulic Breaker Hammer Spare Parts of Our Factory
| Back Head | Front Head | Breaker Cylinder | Through Bolt/Tie Rod |
| Seal Kit | Diaphragm/Membrane | Rod Pin | Stop Pin |
| Upper Bushing/Inner Bush/Chisel Bush | Accumulator | Sleeve Valve | Piston Ring |
| Chisel/Tool | Thrust Ring | Moil Chisel | Piston |
| V-Wedge Chisel | Universal Chisel | Flat Chisel | Damper/Shock Absorber |
| H-Wedge Chisel | Lower Bushing/Outer Bush/Front Cover | Rubber Pad | Side Bolt |
| Charging Valve | N2 Gas Charging Kit | Gas Bottle | Lock Pin |
| Daemo/demo | S700, S900, S1300, S1800, S2200-II, S2300, S2500, S5000, DMB10, DMB20, DMB30, DMB40, DMB50, DMB70, DMB90, DMB140, DMB180, DMB210, DMB230, DMB250, DMB450, DMB800, ALICON-B10, ALICON-B20, ALICON-B30, ALICON-B40, ALICON-B50, ALICON-B70, ALICON-B90, ALICON-B140, ALICON-B180, ALICON-B210, ALICON-B230, ALICON-B250, ALICON-B450, ALICON-B600, ALICON-B800, S3000, S3600, DMB300, DMB360, ALICON-B300, ALICON-B360 |
| EDT | EDT100 EDT200 EDT300 EDT400 EDT400A EDT430 EDT435 EDT435A EDT450 EDT450A EDT800 EDT800A EDT1600 EDT2000 EDT2000 EDT2000F EDT2200 EDT2200A EDT2800 EDT3000 EDT3200 EDT3500 EDT3500F EDT4500 EDT4500F EDT6000F EDT8000 EDT1000 EDT12000 |
| DAINONG DNB | K20, K25, K30, K50, K80, K120, DNB30, DNB50, DNB55, DNB60, DNB70, DNB90, DNB110, DNB130, DNB160 |
Cooperative Hydraulic Breaker Brand
Allied, Ampa, Arrowhead, Atlas Copco, Beilite, Berco, Caterpillar, CAT, Chicago Pneumatic, D&A, Daemo/demo, DAINONG DNB, DB TECH, Dehaco, Doosan, EDT, Everdigm, FINE
Furukawa, General, Giant, Hanwoo, Huskie, Hyundai, Inan Makina MTB, Jacty, JCBB, Jisung, JKH-B, KCB, Kent, Komac, Komatsu, Konan MKB, Krupp, Kubota, Kwanglim, Lifton
Maverick, Montabert, MSB, NPK, Okada, Ramfo, Rammer, Sandvik, Stanley, Teisaku, Terex, Tiger, Toku, Topa, Torpedo, Toyo, Volve, T&H, UBTECH
About Shipping
We usually ship goods by DHL Collected, DHL, UPS, TNT, Fedex, EMS, and SF Express.
The delivery time is as follows:
DHL 3-5 days, UPS 5-7 days, TNT 5-10 days, Fedex 4-6 days, and DHL Collected 1-3 days to arrange.
By air, 7~10 days; by sea, 15~48 days.
For any questions, please feel free to contact us. Our contact information is as follows:
+86 188 1917 0788 +86 133 9263 9545 +86 139 2410 9994You can call our customer service hotline and our team will provide you with immediate assistance.
If you have more detailed questions or need to send a document, you can contact us by email at service@hlmachinery.com. We will reply to your email within 24 hours.
Online Services
Online Voice and Video Support for Excavator Parts
We offer advanced online voice and video support to assist you with all your parts-related needs. Whether you're troubleshooting an issue, installing a component, or need help selecting the right parts for your machine, our experienced technicians are just a call or video chat away.
Through our secure online platform, you can connect with our experts in real-time, receiving clear, step-by-step guidance and visual demonstrations. This service ensures that you can resolve any technical challenges quickly and efficiently, without the need for an on-site visit. With voice and video support, you’ll receive the personalized attention and hands-on assistance you need, no matter where you are.
Enjoy faster resolutions, improved productivity, and the confidence that our team is always here to support you with the latest technology and expert knowledge.
For any questions, please feel free to contact us. Our contact information is as follows:
+86 188 1917 0788 +86 133 9263 9545 +86 139 2410 9994
You can call our customer service hotline, and our team will provide you with immediate assistance.
If you have more detailed questions or need to send a document, you can contact us by email at service@hlmachinery.com. We will reply to your email within 24 hours.
Extended Warranty Coverage
All of our excavator parts come with an industry-leading warranty to ensure peace of mind. If any part fails due to manufacturing defects within the warranty period, we will replace it at no additional cost to you.
24/7 Customer Support
Our dedicated customer service team is available around the clock to assist you with any issues or questions about your excavator parts. Whether it's a technical issue or a simple query, we're here to help—anytime, anywhere.
Fast Delivery & Replacement
We understand that time is money. That's why we guarantee fast delivery of replacement parts, with priority shipping options to ensure your excavator is back in action as quickly as possible.
Technical Support & Training
We don’t just sell parts—we provide ongoing technical support. Our experts are available for virtual consultations, including video calls, to guide you through installations, maintenance, and repairs, ensuring your equipment stays in top condition.
For any questions, please feel free to contact us. Our contact information is as follows:
+86 188 1917 0788 +86 133 9263 9545 +86 139 2410 9994
You can call our customer service hotline, and our team will provide you with immediate assistance.
If you have more detailed questions or need to send a document, you can contact us by email at service@hlmachinery.com. We will reply to your email within 24 hours.
Get a free quote
We attach great importance to the needs and feedback of every customer. If you have any questions about our products or any other services, please feel free to contact us. We will wholeheartedly provide you with professional support and help.
SOOSAN SB100 Breaker Seal Kit Parker Oil Repair Kit E9X003 E91011 SB100TSP SQ100 SB100Ⅱ
E9X003 E91011 SOOSAN SB100TS-P SB100TSP SB100 Seal Kit SQ100 SB100TR-F SB100TRF SB100Ⅱ Oil Repair Kit For Excavator Hydraulic Rock Breaker Hammer
Inan Makina MTB MTB365 MTB-365 Front Cover Hydraulic Breaker Parts MTB 365 IQ Outer Bush MTB-365 MT 365 Lower Tool Bushing for Excavator Rock Hammer
SOOSAN Brand SB50 Hydraulic Hammer Breaker Seal Kit Parker Oil Seal C1X001 C11012 SB50TSP SQ50
About us© 2025 HUILIAN MACHINE. All rights reserved
