Cost Breakdown: Excavator Breaker Parts and Repair Estimates

Cost Breakdown: Excavator Breaker Parts and Repair Estimates

Why understanding excavator breaker parts costs matters

When budgeting for a hydraulic breaker attached to an excavator, the cost of replacement parts and repairs often exceeds initial expectations. Excavator breaker parts—such as chisels, pistons, seals, and wear bushes—are wear items exposed to extreme impact, dust, and vibration. Accurate cost estimates help fleet managers, rental companies, and owners schedule maintenance, compare OEM and aftermarket options, and calculate true machine operating cost per hour. In this article we break down typical parts and labor costs, provide lifespan estimates, and the best practices to reduce downtime and expense.

Typical parts list and price ranges for excavator breaker parts

Below is a practical parts list that covers the majority of repair jobs for hydraulic breakers. Prices vary by breaker size, brand (e.g., OEM/Caterpillar/Komatsu vs aftermarket), region, and condition (new vs refurbished). The ranges shown reflect industry averages for 2024–2025 market conditions.

Source note: price ranges reflect dealer catalogs, aftermarket supplier listings, and global supplier quotes collected in 2024–2025 (see sources).

Labor and diagnostic costs for breaker repairs

Labor and diagnostics are a significant part of repair costs. Typical cost components include diagnostic time, removal and reinstallation of the breaker from the excavator, teardown and inspection, machining or part replacement, reassembly, and testing. Labor rates vary widely by region and facility (mobile service vs shop).

• Diagnostic + teardown: 2–6 hours
• Shop labor (mechanic rates): $70–$150 per hour in developed markets; lower in many manufacturing regions
• Mobile service call: $100–$500 minimum depending on travel
• Rebuild labor: 4–16 hours depending on complexity

Typical total labor cost example: a mid-sized breaker rebuild in a shop with average rates might be $600–$2,400 in labor alone. Combine with parts (e.g., seals + piston + chisel) and you can expect $1,000–$5,000 for a substantial service event on mid-sized units.

: budgeting for excavator breaker parts and labor

For procurement and fleet budgeting, use a per-hour reserve fund. Example conservative reserve: $1.50–$5.00 per machine-hour for breaker parts and repairs, depending on application severity (demolition vs light trenching). High-impact work pushes this to the upper end. This reserve planning helps avoid unexpected capital strains and prevents urgent rental/repair decisions that increase downtime.

Common failure modes and which parts drive cost

Knowing typical failures helps prioritize inventory and preventive measures. Common failure modes include:

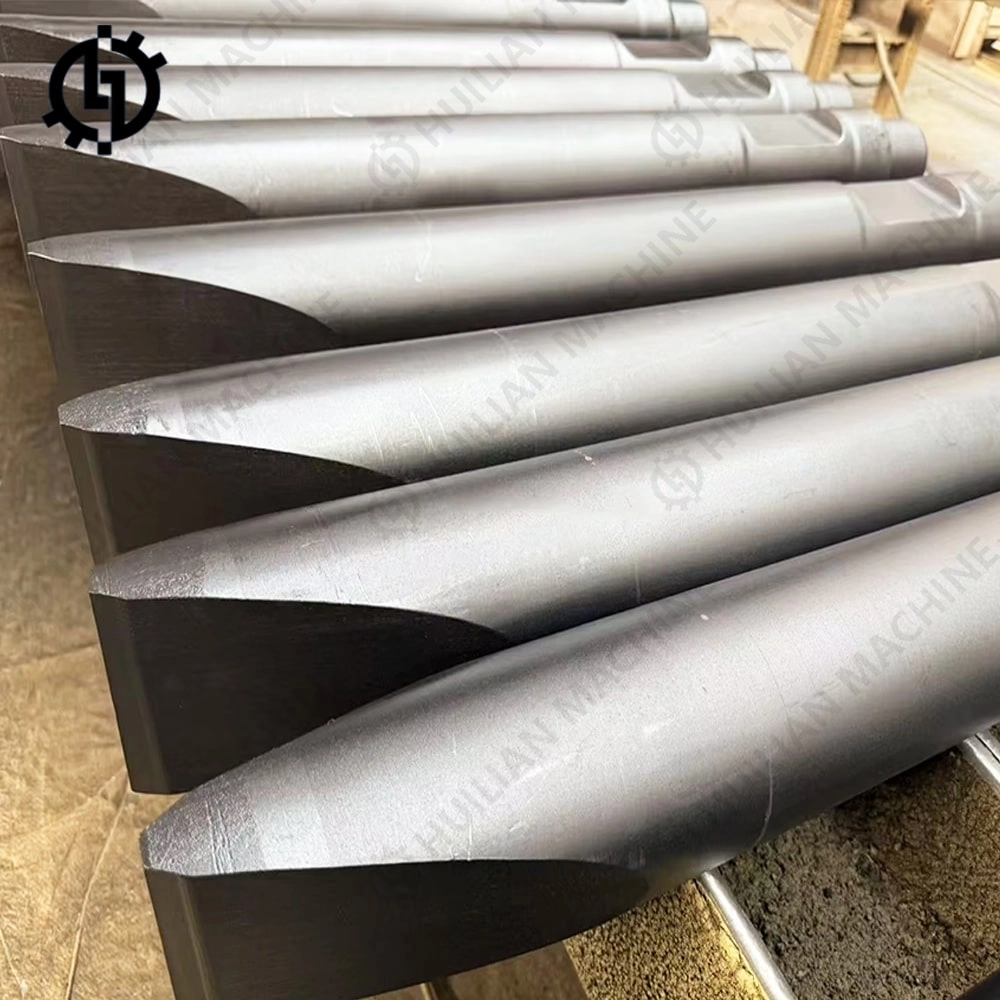

• Worn chisel and tool bit — frequent, low-cost but high-volume replacements.
• Seals and O-rings — leakage and loss of impact; often inexpensive but essential.
• Piston or cylinder scoring — expensive repair or replacement; often caused by poor lubrication or dirt ingress.
• Valve wear — reduces efficiency and increases fuel/hydraulic usage; replacement moderate cost.
• Loose or fractured retainer bolts — safety risk; must be replaced in kits.

The most expensive single items are typically pistons and major valves or housings damaged by improper use. Preventive maintenance and correct operating technique often prevent these failures.

OEM vs aftermarket excavator breaker parts: cost and quality tradeoffs

When buying excavator breaker parts, fleets choose between OEM parts (original equipment manufacturer) and aftermarket or remanufactured components. Key tradeoffs:

• OEM: higher price, guaranteed fit, consistent performance, and usually better warranty coverage. Preferred for critical wear items (pistons, valves).
• Aftermarket: lower price, variable quality. Good value for consumables such as chisels and generic seal kits if sourced from reputable suppliers.
• Remanufactured: balance between cost and quality; depends on shop capability and supplier certification.

For high-hour machines and safety-critical parts, OEM or certified OEM-equivalent parts reduce risk of costly failures. For consumables and low-risk items, reliable aftermarket suppliers can save money without sacrificing uptime.

How to estimate total repair cost: a step-by-step checklist

1. Perform a visual inspection and log symptoms (loss of impact, oil leaks, abnormal noise).
2. Run a diagnostic test with the breaker mounted and record hydraulic pressures and blow rates.
3. Estimate teardown scope: seals-only, mid-service (seals + chisel + bush), or full rebuild (piston, valves, liners).
4. List parts needed and obtain local price quotes for OEM and aftermarket options.
5. Estimate labor using local shop hourly rates and required hours for teardown/rebuild.
6. Add consumables (lubricants, fasteners) and tax/shipping.
7. Include contingency 10–20% for unexpected findings such as cracked housings or machining needs.

This method provides a defensible repair estimate to share with managers or customers and helps decide whether to repair, replace, or send for remanufacture.

Maintenance practices to lower excavator breaker parts costs

Small operational and maintenance changes yield big savings over time:

• Use correct hydraulic flow and pressure settings to avoid overstraining the breaker.
• Apply recommended tool lubrication and check grease intervals.
• Store spare chisels properly and rotate tools to equalize wear.
• Use proper tool selection for the application (point vs chisel vs blunt).
• Perform regular seal inspections and replace kits proactively before catastrophic failure.
• Keep mounting hardware tightened to spec to avoid misalignment and accelerated wear.

These practices extend part life and reduce costly breakdowns.

Buying strategy and inventory: what to stock for minimal downtime

For businesses that rely on productivity, keeping a minimal inventory of high-turnover excavator breaker parts avoids downtime. Recommended stock list for a single fleet location:

• Several chisels/tool bits (various profiles)
• Seal kits for the most common breaker models
• Set of retainer bolts and through bolts
• Wear bushes and a spare chisel holder
• Basic valve kit and a spare diaphragm for common models

Rotate stock and inspect spare parts to avoid storing damaged or rusted components.

Warranty, certified remanufacture, and disposal cost considerations

Warranty coverage differs by supplier. OEM parts generally have clearer warranty claims and support. Certified remanufactures can reduce cost but check: what is covered, who performs the rework, and are life-limited components warrantied? Disposal of damaged parts (e.g., cracked housings) may involve small fees depending on local regulations; account for scrap value where applicable.

Case study example: mid-sized breaker (5–10t excavator) repair estimate

Example scenario: mid-sized hydraulic breaker showing reduced blow energy and oil seepage. Inspection reveals worn seals, a scored piston, and a slightly worn chisel holder requiring a wear bush.

• Seal kit (OEM): $250
• Piston (remanufactured): $900
• Wear bush: $300
• Chisel: $350
• Labor (10 hours @ $100/hr): $1,000
• Consumables & contingency: $200

Estimated total: $3,000 (range $2,500–$3,500 based on exact parts and local labor rates). In contrast, a seals-only job might have been $700–$1,000. This illustrates why early detection and preventive replacement can avoid larger piston repairs.

How Huilian Machine supports cost-effective parts procurement

Founded in 2005, Huilian Machine is a professional OEM supplier of excavator parts. We are leading excavator breaker parts manufacturers from China. We offer a wide range of products, including hydraulic breaker hammers, chisels, seals and seal kits, diaphragms, pistons, WearBush, rompin/retainer bars, through bolts, side bolts, valves and liners. Huilian's team comprises experienced and skilled professionals, including technicians, R&D experts, designers, quality control professionals, salespeople and after-sales service teams. Our products are exported to over 90 countries and regions and are highly regarded by customers worldwide for their quality and variety. Guangzhou Huilian Machinery Co., Ltd. is committed to becoming a global leader in the supply of excavator parts and components and is seeking global distributor partners to promote the sustainable development of the excavator parts industry. Our website: https://www.huilianmachine.com/

Huilian’s advantages related to excavator breaker parts costs

Choosing a supplier like Huilian can reduce total cost of ownership by offering:

• Wide catalog of OEM and OEM-equivalent parts, reducing sourcing time
• Competitive pricing for seals, pistons, and wear parts
• Quality control and R&D expertise that supports longer-lasting components
• Export experience and logistics that minimize lead times to international customers
• After-sales support to guide correct installation and maintenance, lowering lifecycle costs

Main product emphasis: excavator parts, Excavator Breaker Parts, Excavator Hydraulic Breaker, Excavator Seal Kit, Parker seal kit. Core competitiveness lies in wide product range, experienced technical team, and global distribution footprint.

FAQ — Frequently asked questions about excavator breaker parts and repair estimates

Q: How often should I replace seals on my excavator breaker?

A: For typical use, seals are often inspected every 1,000 operating hours and replaced proactively around 2,000–3,000 hours, depending on environment and impact frequency. In dusty or high-impact applications inspect and replace sooner.

Q: Are remanufactured pistons reliable?

A: Certified remanufactured pistons from reputable suppliers can offer near-OEM reliability at lower cost. Ensure the remanufacturer provides machining tolerances, material specs, surface hardness, and a warranty.

Q: Can I reduce repair costs by doing in-field repairs?

A: Simple tasks like changing chisels and routine lubrication are suitable for field service. However, teardown repairs involving pistons, valves, or cylinder machining should be done in a properly equipped shop to avoid misassembly and safety risks.

Q: How do I choose between OEM and aftermarket excavator breaker parts?

A: Use OEM for safety-critical, high-cost components like pistons and valves. For consumables (chisels, general seal kits) a high-quality aftermarket brand often provides good value. Balance cost against criticality and warranty needs.

Q: What’s a reasonable contingency to include in an initial repair estimate?

A: Include a 10–20% contingency to cover unexpected findings during teardown, such as cracked housings or additional worn components.

Contact us / View products

If you need help estimating repair costs, choosing parts, or sourcing high-quality excavator breaker parts, contact Huilian Machine’s sales and technical teams. We can provide part quotes, datasheets, and guidance tailored to your breaker model and working conditions. Visit our product catalog at https://www.huilianmachine.com/ or contact our sales team for a personalized quote and fast shipping.
