High-Pressure Seal Kits: Preventing Leaks in Heavy-Duty Operations

What Are Hydraulic Breaker Seals and Why Do They Matter?

Hydraulic breaker seals are critical internal components engineered to contain high-pressure fluids, prevent external contamination, and maintain vital internal pressure within a hydraulic hammer. By absorbing extreme shock, heat, and friction during heavy-duty operations, these seals prevent catastrophic leaks and guarantee optimal machinery performance.

In the demanding world of excavation, mining, and demolition, hydraulic breakers are subjected to immense stress. The seals inside these attachments act as the primary defense mechanism against fluid loss and internal damage. Without high-quality sealing systems, the pressurized hydraulic oil required to drive the piston would bypass the internal chambers, resulting in a severe loss of impact power.

Since our founding in 2005, the R&D experts and technicians at Guangzhou Huilian Machines Co., Ltd have analyzed thousands of hydraulic systems. We have consistently found that proactive seal maintenance is the single most effective strategy for maximizing the lifespan of an excavator hydraulic breaker. When a seal fails, it doesn't just cause a messy oil leak; it opens the door for abrasive dirt and rock dust to enter the precision-machined cylinder, scoring the piston and leading to repair bills that can reach thousands of dollars.

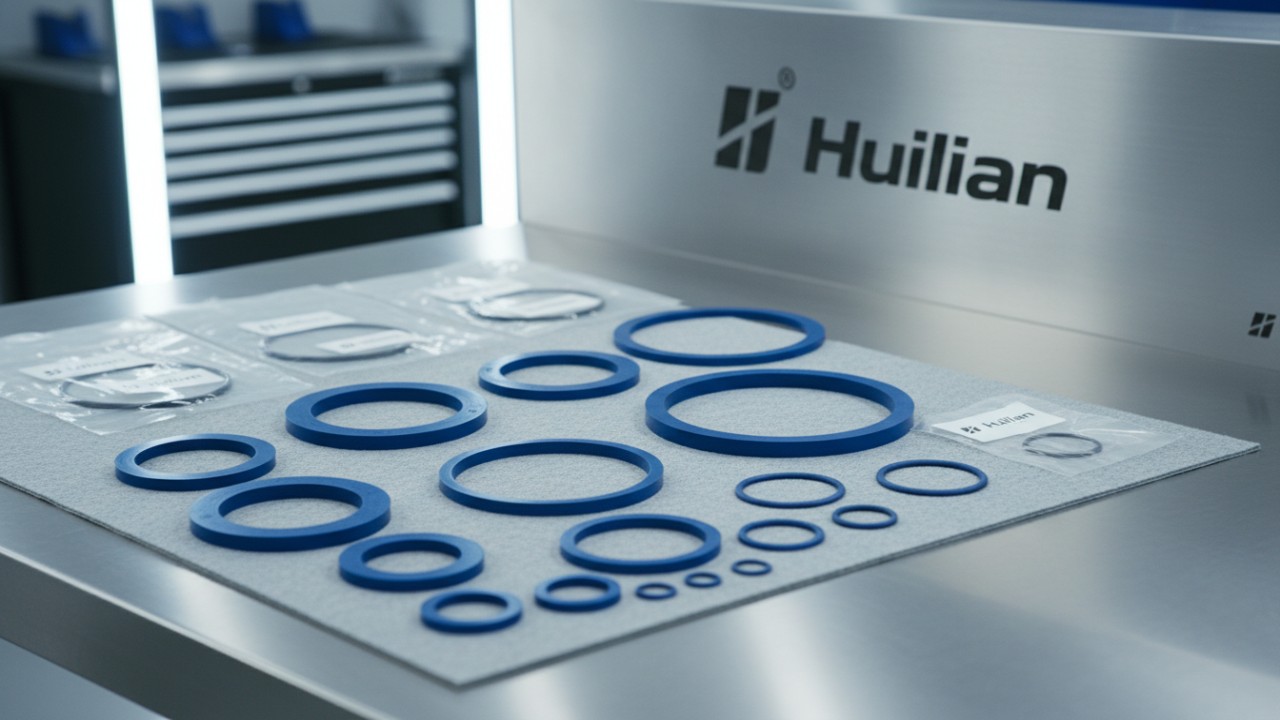

Key Takeaways: High-Pressure Seal Kit Summary

A proactive approach to heavy-duty hydraulic leak prevention involves replacing seals before they fail, which prevents expensive downtime and internal hammer damage. Temperature fluctuations, fluid contamination, and improper installation are the primary culprits behind premature seal degradation in heavy machinery.

To ensure your equipment remains operational and efficient, keep these core principles in mind:

• Preventative Replacement: Replacing seals at scheduled intervals (typically every 600 to 1,000 hours) is exponentially cheaper than rebuilding a scored hammer cylinder.
• Material Selection Matters: Upgrading to advanced materials like OEM-spec Polyurethane extends operational lifespan significantly compared to standard rubber.
• Contamination is the Enemy: Even microscopic dirt particles in the hydraulic oil will act like liquid sandpaper against your seals.
• Precision Installation: Proper installation tools and correct grease application are mandatory; a scratched seal lip during installation guarantees an immediate leak.

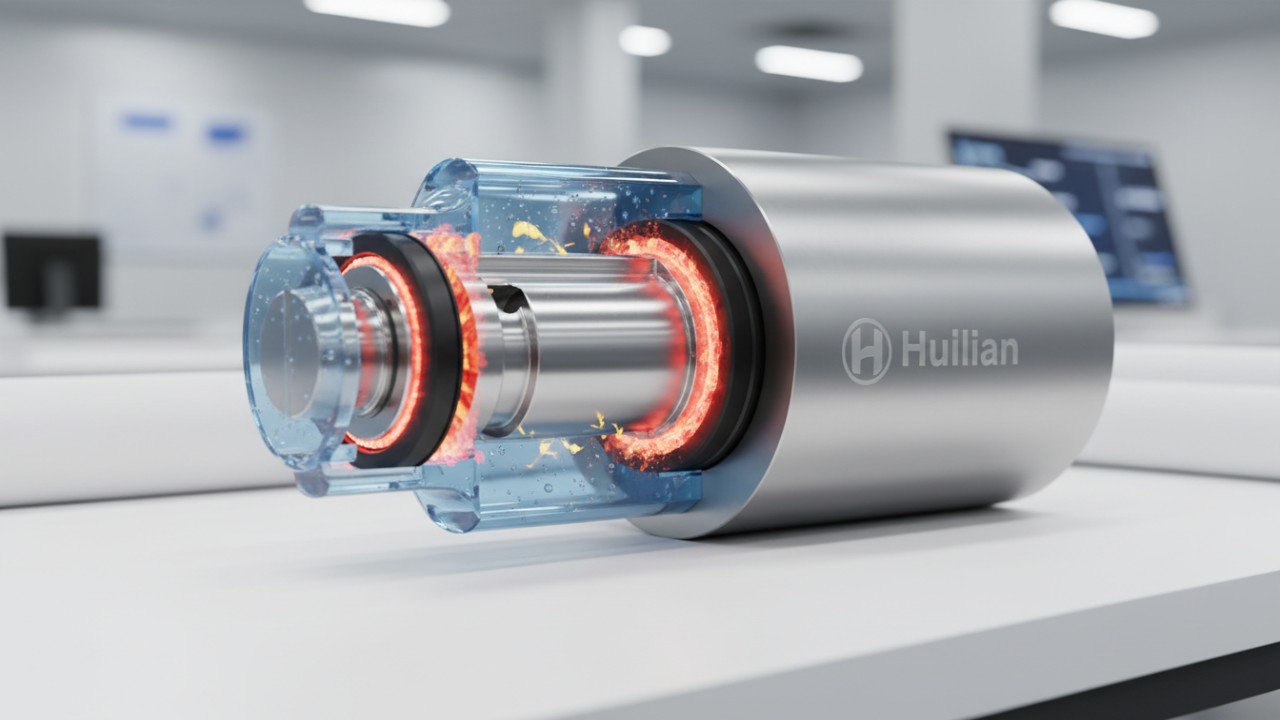

Why Do Hydraulic Breaker Seals Fail in Heavy-Duty Operations?

Hammer seal degradation in heavy-duty operations is primarily caused by excessive heat, friction, pressure spikes, and fluid contamination. When dirt or metal shavings enter the system, they act as abrasives that destroy the seal structure, leading to immediate leaks and pressure loss.

Understanding the root causes of seal failure allows operators to adjust their maintenance routines and operating habits. The most common culprits include:

• Excessive Heat and Friction: Continuous, uninterrupted operation without adequate lubrication leads to thermal degradation. When hydraulic fluid exceeds 180°F (82°C), standard seal lips begin to harden, bake, and eventually crack under the friction of the reciprocating piston.
• Hydraulic Fluid Contamination: Dirt, silica dust, and internal metal shavings are lethal to sealing systems. According to industry standards on hydraulic fluid contamination, at least 75 percent of all hydraulic systems fail due to contaminated or aging hydraulic fluid. These abrasive particles embed themselves in the soft seal material and score the hardened steel rods.
• Pressure Spikes and Surges: Heavy-duty rock breaking often creates sudden hydraulic pressure drops or massive spikes. These surges can push the seal material beyond its elastic limit, causing it to extrude into the micro-clearances between metal components. Once extruded, the seal tears and blows out.
• Incorrect Installation Procedures: Human error during maintenance is a leading cause of early failure. Twisting the seal in the groove, installing it upside down, or scratching the delicate sealing lip with a screwdriver will compromise the pressure barrier immediately.

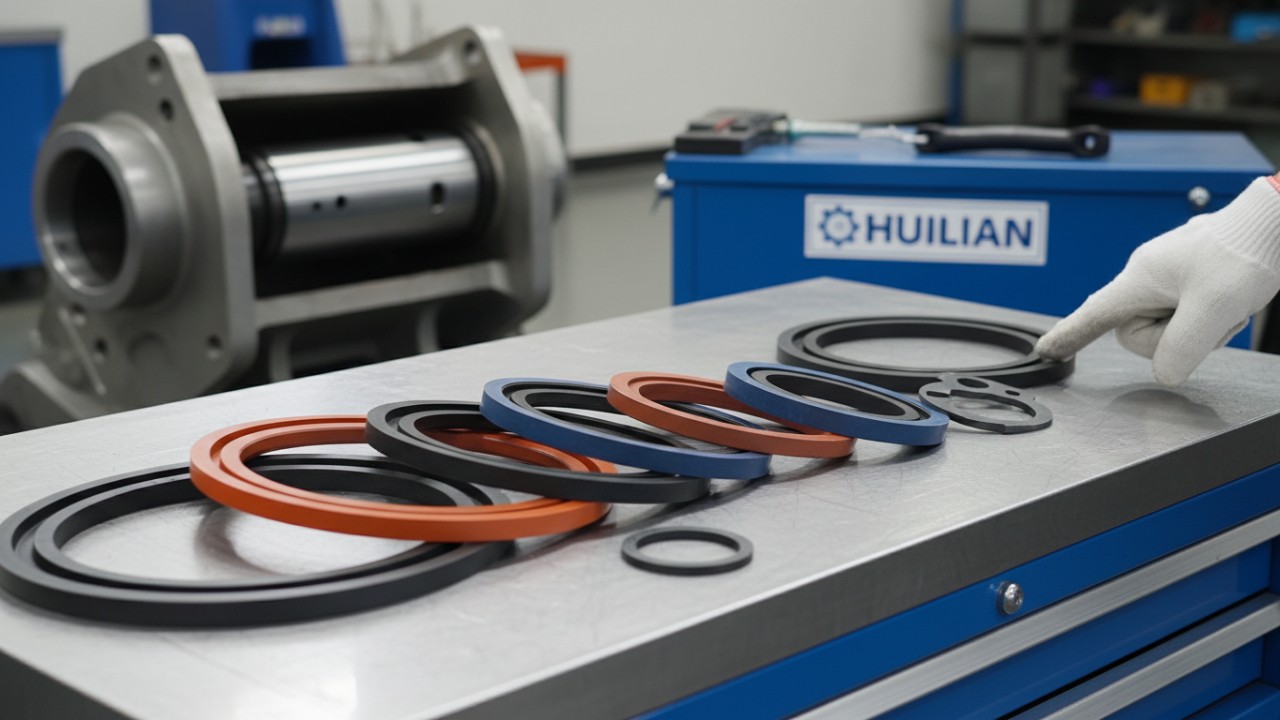

Seal Material Performance: Polyurethane vs. NBR vs. PTFE

Selecting the right material for high-pressure seals dictates their operational lifespan and performance under stress. While NBR is suitable for low-pressure dust wiping, advanced polyurethane breaker seals offer superior abrasion resistance, and PTFE excels in extreme high-temperature and chemical environments.

Understanding material science is critical for heavy-duty operations. Based on materials science research regarding polyurethane properties, the microphase separation between its soft and hard segments provides elasticity combined with exceptional strength and fatigue resistance. This makes it the undisputed champion for high-impact applications.

Below is a comparative breakdown of the most common seal materials used in the heavy machinery industry:

2026 Trends in High-Pressure Sealing Technologies

The future of heavy-duty sealing relies on next-generation nano-reinforced composites, predictive maintenance sensors that detect micro-leaks early, and eco-friendly materials. These advanced innovations are specifically designed to withstand new biodegradable hydraulic fluids without swelling, shrinking, or degrading under extreme operational pressure.

As the excavator parts industry evolves, so does the technology keeping it running. At Guangzhou Huilian Machines Co., Ltd, our R&D experts are tracking and implementing several key trends for 2026:

1. Next-Generation Composites: The industry is seeing a massive shift towards nano-reinforced Polyurethane. By infusing the polymer matrix with nanomaterials, manufacturers are achieving a 30% increase in abrasion resistance, allowing breakers to operate longer in highly abrasive silica-rich environments.
2. Predictive Maintenance Sensors: Smart hydraulic systems are becoming the norm. Modern carriers are being equipped with fluid sensors that detect pressure drops and micro-leaks long before a full seal blowout occurs, allowing for scheduled maintenance rather than catastrophic downtime.
3. Eco-Friendly Hydraulic Oils: Environmental regulations are driving the adoption of biodegradable hydraulic fluids. Traditional seals can swell or shrink when exposed to these new chemical makeups. The latest seal kits are engineered with modified polymer backbones to ensure chemical compatibility with green fluids.

Expert Tips and Common Mistakes in Seal Replacement

A successful hydraulic hammer seal kit replacement requires measuring leakage rates before disassembly, thoroughly cleaning seal grooves, and using proper installation tools. Using sharp objects like screwdrivers creates invisible tears in the seal lip, guaranteeing early failure and costly operational downtime.

Even the highest quality seals will fail if installed incorrectly. Our after-sales service teams have compiled the most critical tips and common pitfalls observed in the field:

• Expert Tip - Measure First: Always measure leakage rates before disassembling the hammer. A light film of oil on the tool bit is normal assembly weeping designed for lubrication. If you cannot measure continuous drops, the seal may not be failing yet.
• Expert Tip - Vertical Storage: Store your hydraulic breakers vertically and grease them properly. Laying a breaker flat for extended periods causes the lower seals to dry out, warp, and lose their tension.
• Common Mistake - Dirty Grooves: Failing to thoroughly clean and inspect the internal seal grooves for micro-scoring or leftover debris before installing the new kit will cause the new seal to seat improperly.
• Common Mistake - Improper Tools: Never use a screwdriver, metal pick, or sharp blade to force a seal into its groove. Always use dedicated, smooth-edged seal installation tools and ample clean hydraulic fluid as a lubricant.

Using the exact OEM-specified kit is also crucial. For instance, utilizing a specialized SB70 Seal Kit ensures that the tolerances match the original factory specifications perfectly, eliminating the risk of extrusion gaps.

Industry-Leading Solutions: Choosing the Right Seal Kit

Premium aftermarket and OEM-spec seal kits are engineered to withstand the extreme shock loads of modern rock breakers. Guangzhou Huilian Machines Co., Ltd provides tailored, high-durability seal solutions that have been proven to increase hammer lifespan by up to 40% in harsh environments.

Not all aftermarket seal kits are created equal. Generic, off-the-shelf O-rings and seals lack the precise durometer (hardness) and chemical resilience required for heavy-duty rock breaking. As a leading supplier exporting to over 90 countries, the Huilian brand is synonymous with reliability.

Our extensive product line caters to specific, high-demand machinery. When servicing SOOSAN equipment, deploying the exact SOOSAN Breaker Parts SB131 Seal Kit prevents pressure bypass and ensures maximum impact energy is delivered to the chisel. Similarly, for heavy-duty MTB rock breakers, the MTB175 Hydraulic Breaker Seal Kit offers superior thermal stability and extrusion resistance, keeping your operations running smoothly even in the harshest quarry conditions.

A recent case study involving our heavy-duty Polyurethane compound kits demonstrated a massive reduction in unexpected downtime for a major mining client, proving that investing in premium seals yields a high return on investment.

Conclusion

Maintaining the integrity of your hydraulic breaker seals is the most cost-effective way to prevent catastrophic leaks and unexpected downtime. By understanding failure causes, selecting the right materials, and following strict maintenance protocols, your heavy-duty operations will remain highly productive.

Frequently Asked Questions (FAQ)

How often should I replace my hydraulic breaker seals?

Replacement intervals vary based on usage, but industry standards recommend rebuilding and resealing the breaker every 600 to 1,000 operating hours, or annually for heavy-duty applications.

What are the early signs of a failing hydraulic breaker seal?

Early warning signs include visible hydraulic oil running down the tool bit, a noticeable drop in impact power, unusual heating of the hammer body, and frequent low-oil warnings on your carrier.

Can I reuse old seals when repairing a hydraulic hammer?

No. Once a high-pressure seal is removed from its groove, its structural integrity and tension are compromised. Always use a brand new seal kit during reassembly.

What is the difference between weeping and a seal leak?

Weeping is a very light film of oil that lubricates the tool bit and is normal. A leak is characterized by continuous, measurable drops or streams of hydraulic fluid bypassing the seal.

How do pressure spikes damage high-pressure seal kits?

Sudden, extreme pressure spikes push the seal material beyond its elastic limit, causing it to extrude into the clearance gaps between metal components, leading to permanent tearing and failure.

Which seal material is best for high-temperature operations?

For extreme high-temperature environments, PTFE (Teflon) and specific FKM (Viton) compounds are superior, as standard Polyurethane can begin to degrade and melt at excessive heat levels.

How much does a hydraulic breaker seal kit replacement cost?

The cost of the seal kit itself typically ranges from $100 to $500 depending on the breaker size, but labor and potential downtime can add hundreds more if the replacement is delayed.

Can incorrect hydraulic fluid cause seal failure?

Yes. Using a fluid with incorrect viscosity, improper chemical additives, or fluid that is heavily contaminated will quickly degrade the seal material, causing swelling, hardening, or abrasive wear.

Contact Guangzhou Huilian Machines Co., Ltd today to discuss your specific needs.
