Side Type Breakers for Excavators: Best for Horizontal Demolition

What is a Side Type Breaker?

A side type breaker is a hydraulic excavator attachment characterized by its open-frame, side-mounted bracket design. By locating the mounting pins on the sides, this configuration optimizes the center of gravity, providing superior reach, enhanced visibility, and exceptional operational flexibility for horizontal demolition and low-clearance trenching tasks.

Demolition and excavation have evolved rapidly, demanding highly specialized equipment to handle complex environments. The concept of the hydraulic breaker has transformed significantly since its early inception, evolving from rudimentary impact tools into highly engineered, precision-driven attachments. Today, the excavator side mount breaker stands out as a specialized tool engineered specifically for lateral impact forces. Unlike traditional attachments that are optimized purely for downward, vertical strikes, the side-mounted architecture allows the hydraulic cylinder and main body to sit closer to the excavator's stick.

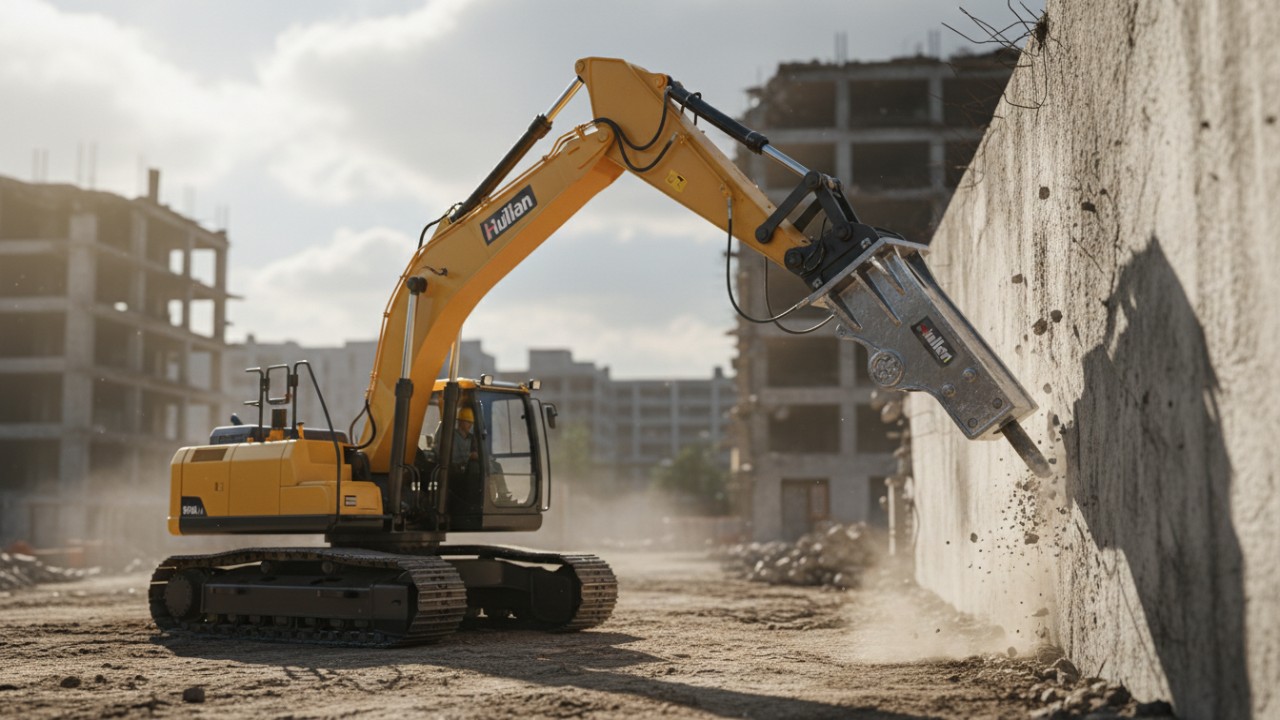

This unique geometry makes these attachments the premier horizontal demolition tools on the market. Whether you are scaling the walls of a rock quarry, expanding an underground tunnel, or performing intricate indoor demolition where overhead clearance is practically non-existent, the side type configuration ensures that the operator maintains maximum control. Furthermore, because the main body of the breaker is exposed rather than enclosed in a heavy box, operators and mechanics have immediate visual access to critical components like the through bolts, side bolts, and hoses, streamlining daily inspections.

Quick Summary & Key Takeaways

Choosing a side type breaker maximizes efficiency in confined spaces by minimizing the total attachment length. This design improves chisel visibility, simplifies on-site maintenance, and extends the lifespan of your excavator arm by ensuring optimal weight distribution during demanding horizontal demolition projects.

To understand why industry professionals consistently choose this design for specific applications, consider the following structured benefits:

• Compact Design: Side type breakers minimize the total attachment length. This shortened profile makes them the ideal tunneling rock breaker, allowing machinery to operate in highly confined workspaces without compromising impact energy.

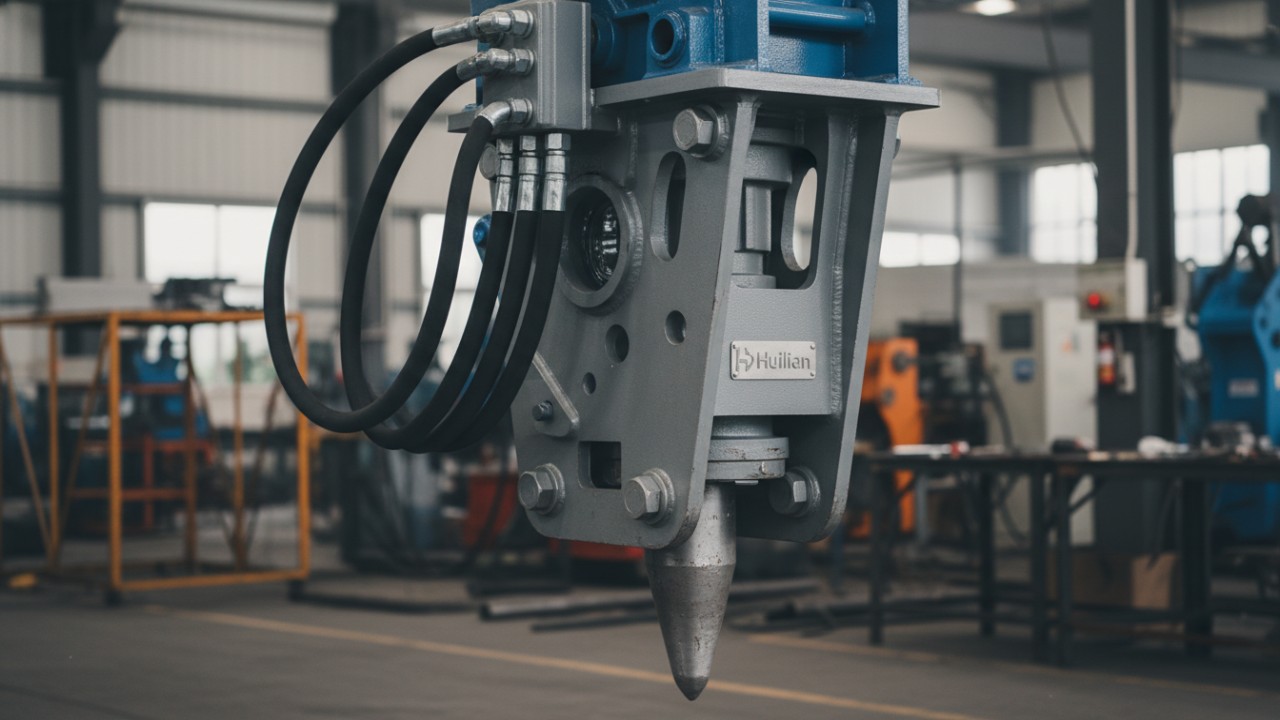

• Enhanced Visibility: The side-plate design offers unparalleled visibility of the chisel point. During horizontal demolition, operators can clearly see exactly where the tool strikes the material, drastically improving precision and reducing accidental damage to surrounding structures.
• Simplified Maintenance: The open-frame architecture provides immediate access to grease points, valves, and liners. This allows for rapid field repairs and routine maintenance without the need to dismantle a heavy outer casing.
• Equipment Longevity: Selecting the right side mount breaker significantly extends excavator arm longevity. By shifting the attachment's weight closer to the carrier, it reduces the pendulum effect and minimizes structural fatigue on the boom and stick.

The Physics of Horizontal Demolition: Why Side Type Excels

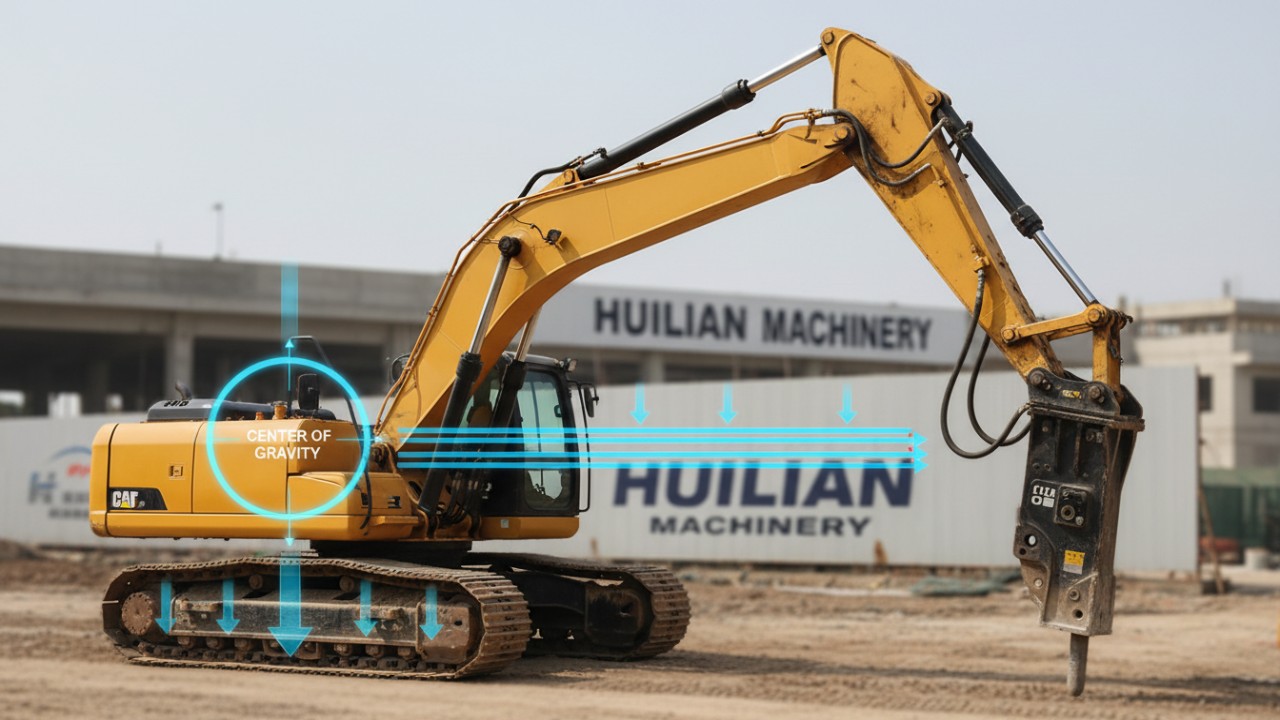

The side type breaker excels in horizontal demolition because its side-bracket design fundamentally alters the pivot point dynamics. By shifting the center of gravity closer to the carrier, it reduces strain on the excavator arm, enhances lifting capacity, and provides superior stability when reaching horizontally.

When an excavator extends its arm to perform lateral work, the physics of leverage come into play. The further the weight is from the machine's base, the more unstable the carrier becomes. Understanding your excavator's center of gravity and lifting capacity is critical for safe and efficient operation. Traditional top-mounted breakers extend the overall length of the arm, which can cause the machine to tip or feel unbalanced during horizontal strikes.

The side type design mitigates this risk through several mechanical advantages:

1. Understanding Pivot Point Dynamics: The side mounting bracket effectively moves the attachment's pivot point backward. This reduces the leverage force acting against the machine, allowing the hydraulic cylinders of the excavator to operate more efficiently without fighting excessive counter-weight.
2. Optimal Weight Distribution: By keeping the mass of the hydraulic hammer attachment closer to the stick, the lifting capacity of mid-sized excavators is artificially enhanced. Operators can utilize higher impact energies without needing to upgrade to a heavier, more expensive carrier.
3. Low Height Advantages: In tunneling and bridge repair, overhead space is a premium. The side type breaker's profile is inherently shorter, allowing the excavator to lift the tool higher in restricted spaces without striking the ceiling, making it the ultimate tool for navigating height-restricted zones.

Data Comparison Table: Side Type vs. Top Type vs. Box Type Breakers

Comparing the side type vs top type breaker and box type models reveals distinct advantages for specific applications. Side types dominate horizontal work and maintenance ease, top types excel in deep vertical trenching, and box types are preferred for urban noise compliance.

To make an informed decision for your fleet, it is essential to evaluate how each configuration performs across key operational metrics. The structured data table below outlines the primary differences:

2026 Industry Trends in Hydraulic Breaker Technology

By 2026, hydraulic breaker technology is shifting toward smart sensor integration, high-flow hydraulic efficiency, and advanced noise dampening. These trends aim to maximize operator safety, ensure regulatory compliance, and reduce unexpected downtime for both compact and heavy-duty excavators.

As the construction and demolition sectors become increasingly data-driven and heavily regulated, attachment manufacturers are innovating rapidly. Staying ahead of these trends ensures that your fleet remains competitive and compliant.

• Integration of Smart Sensors: The days of purely mechanical attachments are ending. Modern side type breakers are increasingly being fitted with IoT (Internet of Things) sensors. These devices provide real-time monitoring of pin wear, bushing degradation, and hydraulic pressure spikes, alerting operators before a catastrophic failure occurs.
• Advancements in High-Flow Hydraulic Efficiency: Engineering improvements in internal valving and piston design mean that today's attachments extract more impact energy from less hydraulic flow. This allows compact carriers to perform tasks previously reserved for massive machines. For example, upgrading to a modern 6-9 Ton Hydraulic Rock Hammer Breaker provides unparalleled power-to-weight ratios, making compact excavators highly lethal in tight demolition zones.
• Evolving Noise Regulations: Noise pollution is a major focus for global health organizations. With agencies like OSHA enforcing strict occupational noise exposure limits, the industry is adapting. While side type breakers are traditionally louder due to their open frames, 2026 models are utilizing advanced, wear-resistant polyurethane dampening pads between the side plates and the main cylinder to drastically reduce decibel output without sacrificing maintenance accessibility.

Expert Tips & Common Mistakes in Side Type Maintenance

Proper maintenance of your excavator side mount breaker prevents costly downtime and extends equipment life. Establishing a strict daily greasing routine and avoiding improper operational techniques, such as prying, are crucial for maintaining peak impact energy and structural integrity.

Even the most robustly engineered horizontal demolition tools will fail if subjected to poor maintenance or abusive operating habits. Implementing a proactive maintenance culture is the single best investment a fleet manager can make.

• Expert Tip 1: Establish a Strict Daily Greasing Routine. The lower bushing and chisel bear the brunt of the friction. Utilizing a high-quality, high-temperature molybdenum-disulfide (moly) grease every two hours of continuous operation prevents the chisel from galling and prematurely wearing out the tool bushing.
• Expert Tip 2: Recalibrate Through-Bolt Tensioning. The intense vibrations of horizontal demolition can loosen structural bolts. Regularly checking and torquing the through-bolts and side bolts to the manufacturer's exact specifications prevents internal piston misalignment, which can score the cylinder wall and destroy the seals.
• Common Mistake 1: Using the Breaker to Pry. An excavator breaker is an impact tool, not a crowbar. Using the chisel to pry or lift heavy boulders aggressively degrades the side plates, snaps the tool retainer pins, and can even bend the internal piston.
• Common Mistake 2: Mismatching Hydraulic Flow. Connecting a breaker to a carrier that delivers too much hydraulic flow (GPM) or pressure (PSI) will cause the attachment to overheat and blow its internal seals. Conversely, too little flow results in weak impact energy. For heavy-duty quarry work, ensuring your carrier is perfectly matched with a robust 18-26 Ton Hyrdraulic Rock Breaker Hammer guarantees optimal performance and longevity.

Real-World Case Study: Maximizing Uptime with Guangzhou Huilian Machines Co., Ltd

In a recent challenging horizontal demolition project within a confined underground tunnel, selecting the right tunneling rock breaker was paramount. By utilizing equipment from Guangzhou Huilian Machines Co., Ltd, the contractor achieved superior maneuverability, minimized downtime, and accelerated project completion.

Founded in 2005, Guangzhou Huilian Machines Co., Ltd (operating under the brand name Huilian) has established itself as a premier professional OEM supplier of excavator parts in China. With exports reaching over 90 countries, their expertise in manufacturing hydraulic breaker hammers, chisels, seals, pistons, and WearBush components is globally recognized.

During a high-stakes municipal tunnel expansion project, the primary contractor faced severe logistical hurdles. The rock face consisted of dense granite, and the tunnel's low ceiling meant that traditional top-mounted breakers were constantly at risk of striking the overhead supports. Furthermore, the horizontal angle required to break the rock face was causing immense strain on the mid-sized excavators' booms, leading to overheating and frequent mechanical pauses.

The contractor consulted with Huilian's team of R&D experts and technicians, ultimately transitioning their fleet to Huilian's specialized side type breakers. The results were immediate and measurable. The side-mounted configuration shifted the center of gravity closer to the machines, instantly stabilizing the excavators and eliminating the pendulum strain on the booms.

Because Huilian utilizes premium raw materials and rigorous quality control for their internal components—such as highly durable diaphragms, precision-machined pistons, and robust seal kits—the breakers sustained continuous horizontal impact without overheating or leaking hydraulic fluid. The open-frame design allowed the on-site maintenance team to grease the tool bushings and inspect the side bolts in minutes rather than hours. Ultimately, the integration of Huilian's side type breakers delivered a staggering 30% faster material reduction compared to the previously used top-mounts, proving that partnering with a dedicated OEM supplier directly impacts a project's bottom line.

Conclusion

Side type breakers remain the undisputed choice for horizontal demolition due to their superior visibility, maneuverability in confined spaces, and cost-effective maintenance. Matching the right breaker to your excavator's capacity ensures longer equipment lifespan, better fuel efficiency, and significantly higher project profitability.

Whether you are engaged in complex tunneling, trenching, or specialized demolition, understanding the mechanical advantages of the side-mount design allows you to operate more safely and efficiently. By combining proper operational techniques with rigorous maintenance and high-quality OEM parts, your fleet can easily tackle the most demanding horizontal environments.

Frequently Asked Questions (FAQ)

What is the difference between a side type and a top type breaker?

Side type breakers have mounting brackets on the sides, making them shorter and better for horizontal work. Top type breakers attach directly inline at the top, offering better vertical force and a longer reach for deep trenches.

Why are side type breakers better for horizontal demolition?

Their compact design and side-pivot point shift the center of gravity closer to the excavator, providing better stability, control, and visibility when the arm is extended horizontally.

Can a side type breaker be used for vertical trenching?

Yes, while they excel at horizontal and low-clearance tasks, side type breakers are highly versatile and effectively handle standard vertical trenching and rock breaking.

How does a side mount breaker affect excavator arm longevity?

Because the side mount reduces the overall length of the attachment, it minimizes the pendulum effect and reduces structural stress and vibration transmission to the excavator arm.

What maintenance is required for a side type hydraulic hammer?

Routine maintenance includes daily greasing of the tool bushing, checking hydraulic hoses for leaks, inspecting side plate bolts for proper torque, and monitoring chisel wear.

Are side type breakers louder than silenced box breakers?

Yes. Side type breakers have an open-frame design, meaning the internal cylinder is exposed, which produces more noise compared to fully enclosed "box type" silenced breakers.

How do I choose the right size side type breaker for my excavator?

You must match the breaker's operating weight to your excavator's lifting capacity and ensure the carrier's hydraulic flow (GPM) and pressure (PSI) align with the breaker's requirements.

What is the expected lifespan of a side type excavator breaker?

With proper daily maintenance, greasing, and avoiding improper use (like prying), a high-quality side type breaker can last 5 to 10 years or thousands of operating hours before requiring a major rebuild.

Contact Guangzhou Huilian Machines Co., Ltd today to discuss your specific horizontal demolition needs and secure the highest quality excavator parts for your fleet.
