Excavator Seal Kits: 2026 Hydraulic Integrity and Performance Guide

What is an Excavator Seal Kit and Why is it Critical for Machinery Health?

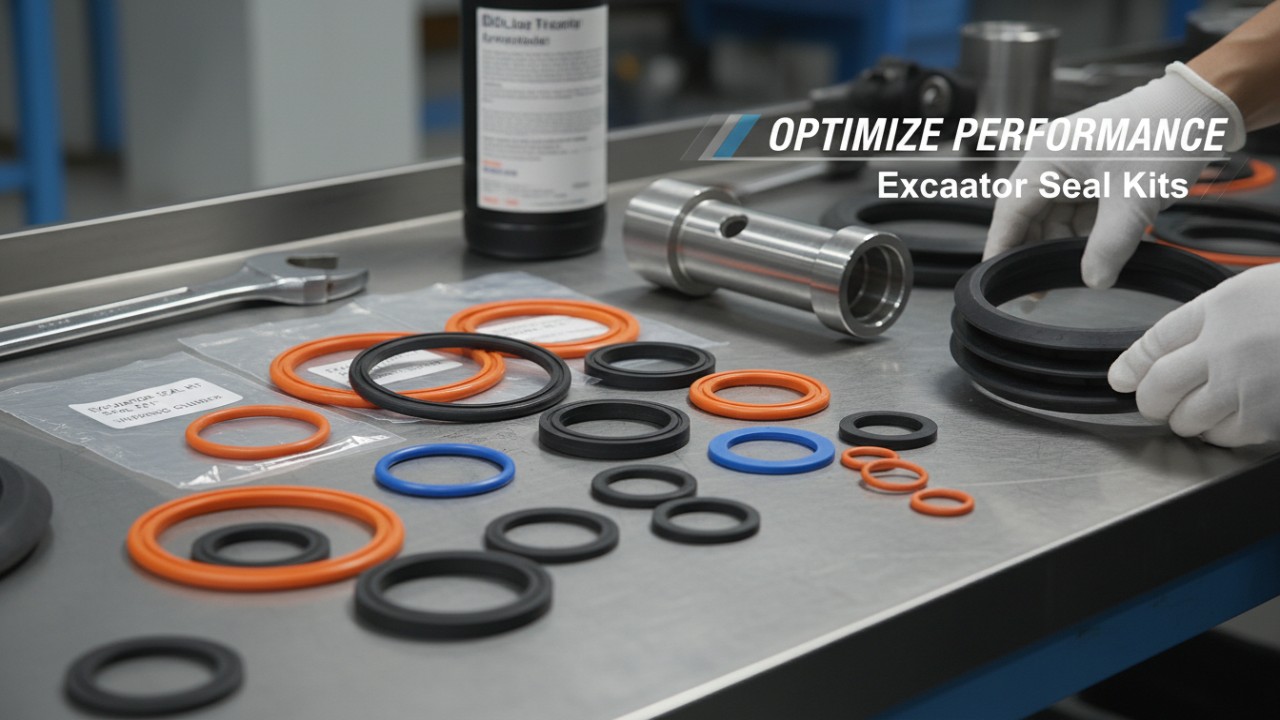

An excavator seal kit is a specialized collection of components—including rod seals, piston seals, wipers, and O-rings—engineered to contain high-pressure hydraulic fluid within a cylinder while preventing external contaminants from entering the system. These kits are the primary defense against hydraulic power loss and catastrophic pump failure.

Beyond simple containment, the seal kit acts as the immune system of your heavy machinery. In modern 2026 hydraulic systems, which often operate at pressures exceeding 5,000 PSI, even a microscopic breach can lead to significant efficiency drops.

• Pressure Containment: Prevents internal fluid bypass to maintain lifting arm breakout force.
• Contamination Control: Stops dust, mud, and moisture (the "Silent Killer") from scoring the cylinder barrel.
• Vibration Damping: High-quality polyurethane hydraulic seals absorb shock loads during rock breaking or demolition.
• Thermal Stability: Ensures integrity under temperature fluctuations ranging from sub-zero starts to 200°F+ operating heat.

2026 Key Takeaways: Selecting the Right Seal Kit for Maximum Uptime

To maximize fleet uptime in 2026, operators must prioritize seal kits that utilize advanced materials like 95A Durometer Polyurethane and reinforced PTFE, rather than relying solely on legacy rubber compounds. The shift towards higher-pressure hydraulic systems demands materials that resist extrusion and thermal hardening better than ever before.

According to a 2025 industrial maintenance report by MaintainX, the average cost of unplanned downtime has risen to approximately $25,000 per hour for heavy industrial operations. Selecting the correct seal kit is no longer just a maintenance task; it is a critical financial strategy.

• Material Evolution: 2026 standards favor polyurethane hydraulic seals for their superior abrasion resistance in mining applications compared to standard Nitrile (NBR).
• Cost vs. Risk: While premium aftermarket kits may cost $50-$120 compared to $20 budget options, they can prevent downtime costs that exceed $10,000/hour.
• OEM Compatibility: ensuring 100% fitment with brands like Cat, Komatsu, and Volvo is non-negotiable to prevent installation-related leaks.
• Lifecycle Management: Scheduled hydraulic cylinder seal replacement every 2,000 to 3,000 hours prevents metal-to-metal contact and expensive cylinder scoring.

The Anatomy of a High-Performance Hydraulic Seal Kit

A hydraulic cylinder seal kit consists of four distinct seal types, each performing a unique role in preserving pressure and excluding debris. Understanding these components is essential for accurate seal failure troubleshooting.

1. Rod Seals: The most critical seal, installed in the cylinder head to prevent fluid from leaking onto the exterior of the rod. It acts as the primary pressure barrier.
2. Piston Seals: Located on the piston head, these ensure a tight seal between the piston and the cylinder bore, enabling the cylinder to extend and retract with full force.
3. Wiper (Dust) Seals: The first line of defense, these scrape mud, ice, and dirt off the rod as it retracts, preventing contaminants from destroying the internal hydraulic system.
4. Guide Rings (Wear Rings): These prevent metal-to-metal contact between the piston/rod and the cylinder, absorbing side-load forces during heavy lifting.

Material Science 2.0: PU, NBR, and the Rise of Smart Sealing

The choice between OEM vs aftermarket seal kits often comes down to the material science used. While OEM kits guarantee fit, premium aftermarket solutions from specialized manufacturers like Guangzhou Huilian Machines Co., Ltd often utilize upgraded materials tailored for specific harsh environments.

Data from 2025 indicates that Polyurethane (PU) has become the industry standard for high-pressure sealing, offering significantly better wear resistance than traditional rubber. However, for extreme heat, PTFE (Teflon) remains superior.

• Polyurethane (PU): Ideal for heavy-duty construction. Resists extrusion up to 5,800 PSI. Huilian’s R&D team utilizes advanced PU compounds that extend service life in high-vibration breaker hammer applications.
• Nitrile (NBR): The cost-effective standard for general-purpose sealing (-40°C to 120°C). Best for low-pressure auxiliary cylinders.
• PTFE (Teflon): Essential for high-speed or high-heat applications (>200°C). It offers the lowest friction coefficient (0.04), reducing "stick-slip" motion.
• Viton (FKM): The go-to choice for chemically aggressive environments or extreme heat where standard PU might degrade.

With over 15 years of experience exporting to 90+ countries, experts at Huilian Machines emphasize that matching the seal material to your specific job site conditions (e.g., extreme heat in mining vs. cold in forestry) is the single biggest factor in preventing premature failure.

Expert Troubleshooting: Why Excavator Seals Fail Prematurely

Premature seal failure troubleshooting usually reveals one of four common culprits: heat, contamination, pressure spikes, or installation error. Recognizing these signs early can save thousands in excavator cylinder rebuild cost.

1. Thermal Hardening: If a seal looks cracked or brittle like hard plastic, it has suffered heat damage. This often occurs when hydraulic oil temperatures exceed the seal's rating (typically above 180°F for standard NBR).
2. Extrusion (Nibbling): If the seal edges look chewed or peeled, the system pressure is too high for the material, or the gap between metal components has widened due to wear.
3. Contamination Scarring: Vertical scratches on the rod or seal lip indicate that debris (silica, metal shavings) has entered the system. This is the "Silent Killer" mentioned earlier.
4. Chemical Swelling: If the seal is larger than the groove or feels spongy, the hydraulic fluid additives are incompatible with the seal material (common when mixing bio-oils with incompatible NBR seals).

Step-by-Step: 2026 Best Practices for Seal Replacement

Performing a proper hydraulic cylinder seal replacement requires clinical cleanliness and precise technique. A 2025 survey by FridayParts highlighted that nearly 30% of seal failures are due to installation errors, such as installing a seal backward or damaging it with sharp tools.

• Workspace Hygiene: Clean the cylinder exterior thoroughly before disassembly. A single grain of sand can ruin a new seal.
• Depressurize: Always relieve residual hydraulic pressure to prevent injury and fluid spray.
• Inspect Hard Parts: Check the chrome rod for pitting or bending. Installing a new seal on a damaged rod is a waste of money.
• Use Installation Tools: Avoid screwdrivers. Use a seal twister tool to form the seal into a kidney shape for easy insertion without nicking the lip.
• Lubrication: Pre-lube all new seals with clean hydraulic fluid to prevent "dry start" friction damage during the first cycle.

Frequently Asked Questions (FAQ)

How often should I replace excavator seal kits?

Standard maintenance protocols recommend replacing seal kits every 2,000 to 3,000 operating hours. However, immediate replacement is required if you notice "drifting" (the arm lowers slowly on its own) or visible weeping of oil on the cylinder rod.

What is the difference between OEM vs aftermarket seal kits?

OEM vs aftermarket seal kits differ mainly in branding and price. OEM kits offer guaranteed assurance but at a premium price. High-quality aftermarket kits, like those from reputable suppliers such as Huilian, often use identical or superior materials (like upgraded Parker-grade PU) at a lower cost, providing better ROI for older machines.

How much does an excavator cylinder rebuild cost?

A professional rebuild can range from $500 to over $2,000 per cylinder depending on size and damage. However, a DIY seal replacement might only cost $50 to $150 in parts. Catching a leak early and replacing just the seals is significantly cheaper than a full rebuild required after metal-on-metal damage occurs.

Why are my new polyurethane hydraulic seals leaking?

New polyurethane hydraulic seals often leak due to improper installation orientation (backward seals) or damage during insertion (nicks from sharp tools). Another common cause is a worn cylinder barrel; if the metal is scored, even a perfect seal cannot hold pressure.

How do I identify the correct seal kit for my machine?

The most accurate method is to cross-reference the excavator serial number and the specific cylinder part number (Boom, Arm, or Bucket). If these are unavailable, you must measure the rod diameter, bore diameter, and seal height using digital calipers to match the specifications manually.
