Box Type vs. Open Type: Why Low-Noise Breakers are Vital for Urban Sites in 2026

As urban populations swell and city infrastructure requires constant upgrading, construction professionals face a growing challenge: completing heavy demolition without violating strict municipal noise ordinances. In 2026, the era of deafening construction sites is rapidly coming to an end. For contractors operating in densely populated downtown zones, residential neighborhoods, or near sensitive environments like hospitals and schools, choosing the right equipment is no longer just about raw breaking power—it is about environmental compliance and acoustic control.

The debate between traditional open type (side type) breakers and modern silenced box type breakers has never been more relevant. Upgrading your fleet with the right hydraulic attachments can mean the difference between a highly profitable, smooth-running project and one plagued by municipal fines, angry community complaints, and forced shutdowns.

What is a Silenced Box Type Breaker and Why Does it Matter?

A silenced box type breaker is a fully enclosed hydraulic hammer engineered with internal polyurethane buffers and a specialized protective housing shell. This advanced structure dampens vibration, drastically reduces decibel output, and protects the excavator carrier's main body from excessive wear, making it vital for urban compliance.

Unlike traditional open type breakers—where the main hammer body is clamped between two exposed side plates held together by through bolts—a box type breaker encases the entire striking mechanism within a heavy-duty steel box. This enclosure is not merely cosmetic. It serves as a critical acoustic barrier and structural shield.

In modern urban sites, this design is absolutely vital for complying with strict municipal noise regulations and effectively minimizing operator fatigue. The enclosed shell prevents dust, rebar, and concrete debris from infiltrating the strike chamber, significantly extending the lifespan of internal components like the piston, seals, and chisel. For contractors looking at the long-term ROI of their fleet, the silenced box type breaker represents the pinnacle of sustainable, efficient demolition technology.

Key Takeaways: Quick Summary for Urban Contractors

The choice between box type and open type breakers primarily comes down to noise suppression, durability, and regulatory compliance. Silenced breakers prevent costly project shutdowns and hefty fines associated with urban noise violations by effectively containing sound waves and protecting vital internal wear parts from debris.

• Acoustic Compliance: Silenced box type breakers typically reduce noise output by 10 to 20 decibels compared to standard open breakers, ensuring projects meet strict 2026 municipal codes.
• Equipment Protection: Fully enclosed designs protect the precision-machined internal components from harsh job site elements, lowering long-term maintenance costs and reducing unexpected downtime.
• Vibration Reduction: Advanced dampening systems absorb kinetic shock, preventing metal fatigue in the excavator boom and hydraulic system.
• Operator Comfort: Lower noise and reduced vibration significantly decrease operator fatigue, leading to safer and more productive work shifts.

Data Comparison Table: Box Type vs. Open Type Breakers

Comparing box type and open type breakers reveals stark contrasts in acoustic performance, maintenance access, and vibration control. While open types offer easier direct access to components for remote sites, box types deliver the superior environmental protection and noise reduction that is absolutely mandatory for densely populated city centers.

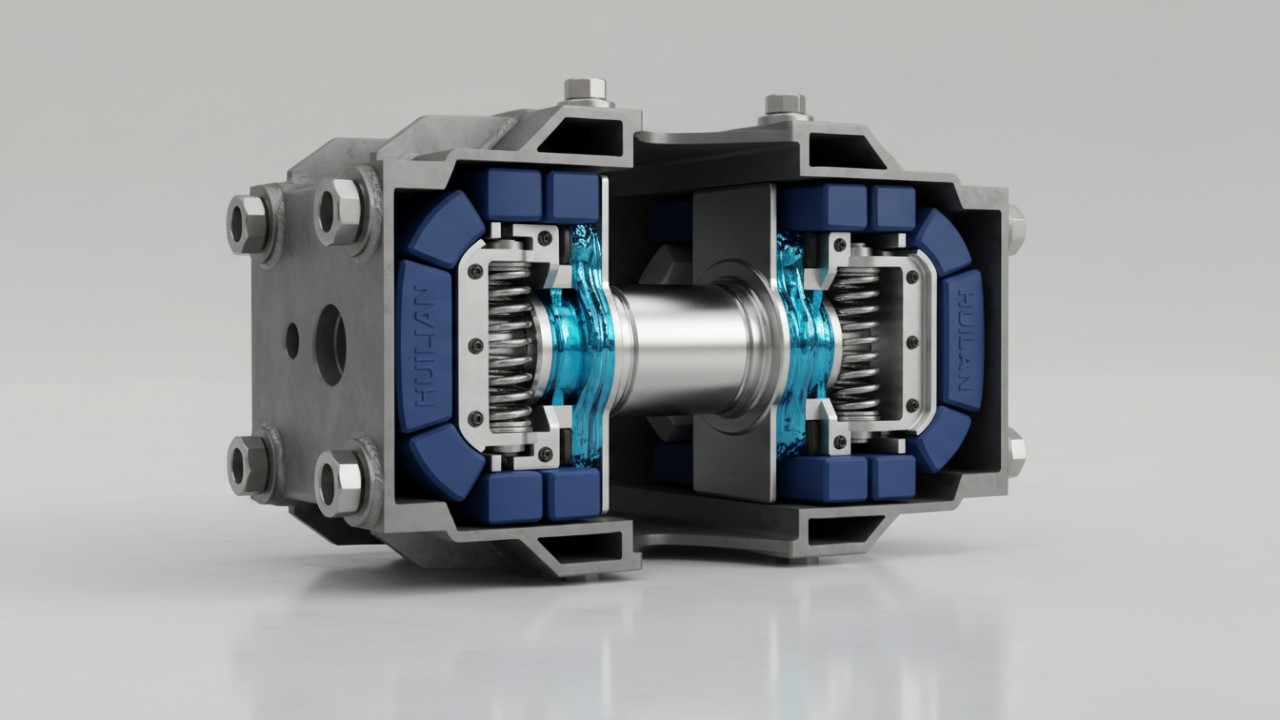

The Mechanics of Noise Suppression: Polyurethane Buffers and Enclosed Shells

The full box housing creates an effective acoustic barrier against high-frequency hydraulic impact noise by isolating the strike chamber. High-density polyurethane buffers in breakers absorb kinetic vibration before it reaches the boom, protecting the excavator carrier machine from excessive stress, metal fatigue, and long-term hydraulic damage.

When a hydraulic hammer strikes solid rock or reinforced concrete, it generates massive amounts of kinetic energy and high-frequency sound waves. In an open type breaker, these sound waves radiate outward unimpeded. In a silenced breaker, the heavy steel housing traps the acoustic energy. However, trapping the sound is only half the battle; the kinetic recoil must also be managed.

This is where advanced materials science comes into play. Top-tier manufacturers utilize specialized elastomer materials—specifically high-density polyurethane—positioned at the top, bottom, and sides of the internal hammer body. These buffers act as shock absorbers. When the piston strikes the chisel, the polyurethane compresses, converting the kinetic recoil into low-grade heat rather than allowing it to travel up the excavator's boom.

At Guangzhou Huilian Machines Co., Ltd, our R&D experts have spent years perfecting the exact durometer (hardness) of these buffers. By utilizing premium OEM replacement parts and focusing on Enhancing Power and Efficiency, contractors can ensure their carrier machines remain protected from the violent forces of daily demolition. Isolating the strike chamber not only dampens the noise but extends the life of the excavator's hydraulic pumps and pins.

Navigating 2026 Urban Demolition Noise Limits

Municipalities worldwide are aggressively lowering urban demolition noise limits for heavy machinery in downtown zones to protect public health and minimize community disturbance. Comparing the upfront premium of silenced breakers against severe fines and project delays proves that investing in low-noise equipment is a financially sound strategy.

The regulatory landscape for construction noise has shifted dramatically. According to the Occupational Safety and Health Administration (OSHA), the permissible exposure limit for construction noise is set at 90 dBA over an eight-hour period to protect worker hearing. However, municipal city councils are looking beyond the worker to protect the general public.

The World Health Organization (WHO) recommends keeping community noise below 53 dB Lden to prevent adverse cardiovascular and sleep-related health effects. While a construction site will inevitably exceed this, cities are enforcing strict variance permits. Historically, the Environmental Protection Agency (EPA) identified an outdoor noise limit of 55 decibels to prevent activity interference in residential areas, a baseline that heavily influences the 2026 municipal zoning laws we see today.

For the modern contractor, the financial perspective is clear. The initial cost of a premium silenced breaker is easily offset by avoiding a single municipal stop-work order. Future trends point toward mandatory acoustic monitoring on all urban sites, making the transition to low-noise attachments inevitable.

Expert Tips and Common Mistakes When Using Silenced Hammers

Operating a fully enclosed hydraulic hammer requires specific maintenance routines, such as establishing a strict daily greasing schedule to prevent internal overheating. A common mistake is neglecting to inspect internal wear plates simply because the enclosed shell hides them, which can lead to catastrophic equipment failure.

To maximize the lifespan and efficiency of your silenced breaker, consider these actionable expert tips:

1. Strict Daily Greasing: Because the box enclosure traps heat, friction builds up faster around the chisel and bushings. Establish a routine using high-temperature moly-paste grease every two hours of continuous operation.
2. Monitor Accumulator Pressure: Operating at continuous high-impact energy settings in hard rock without properly monitoring the accumulator nitrogen pressure can destroy the internal seals.
3. Inspect Hidden Components: Do not let the steel box lull you into a false sense of security. Periodically remove the shell to inspect the through bolts, side bolts, and polyurethane buffers for signs of degradation.
4. Match the Carrier: Always match the specific breaker weight and hydraulic flow requirements to your exact carrier machine. For a comprehensive breakdown, consult our Hydraulic Breaker Selection Guide to ensure optimal compatibility.

Industry Leading Solutions for Sensitive Environments

Choosing heavy-duty attachments engineered specifically to meet stringent urban acoustic and environmental limits ensures maximum uptime and community approval. Integrating precision engineering with long-lasting durability allows modern urban contractors to tackle the toughest rock and concrete without violating local noise ordinances or causing excessive carrier wear.

Founded in 2005, Guangzhou Huilian Machines Co., Ltd (brand name: Huilian) has established itself as a professional OEM supplier and a global leader in excavator parts. With a dedicated team of technicians, R&D experts, and quality control professionals, we manufacture premium hydraulic breaker hammers, seals, pistons, and wear bushes designed for the most demanding urban environments.

Our products are trusted and exported to over 90 countries, highly regarded for their exceptional quality and variety. In a recent urban excavation project in a tightly regulated downtown district, upgrading to a Huilian premium silenced box type breaker increased the contractor's project uptime by 30%. By reducing noise complaints and preventing hydraulic fatigue on their excavators, the project was completed ahead of schedule and well within the strict municipal decibel limits. We are continuously seeking global distributor partners to promote the sustainable development of the excavator parts industry.

Conclusion & Call to Action

Selecting the right breaker type is critical for maintaining maximum demolition efficiency while strictly adhering to urban noise ordinances. A silenced box type breaker offers unparalleled hydraulic breaker vibration dampening, equipment protection, and regulatory compliance compared to traditional open types, ensuring smoother operations and happier communities.

Investing in the right equipment ensures smoother operations, dramatically reduced wear on your fleet of excavators, and peace of mind when the city inspector arrives on site. The days of operating unshielded attachments in city centers are over, and making the switch today guarantees your business remains competitive, compliant, and highly profitable tomorrow.

Contact Guangzhou Huilian Machines Co., Ltd today to discuss your specific needs.

FAQ

What is the primary difference between side type and box type breakers?

A side type breaker has exposed sides held together by tie rods, making maintenance easier but offering no noise protection. A box type breaker is fully enclosed in a heavy-duty steel shell, which significantly reduces noise and protects the internal components from dust and debris.

Do silenced breakers actually reduce noise?

Yes, silenced box type breakers typically reduce noise output by 10 to 20 decibels compared to standard open breakers. This is achieved through the enclosed housing and internal polyurethane buffers that absorb sound waves and kinetic vibrations before they can escape into the environment.

How do you maintain a silenced box type breaker?

Maintenance is slightly more involved because you must occasionally remove the outer box shell to fully inspect the hammer body. Routine checks include monitoring nitrogen pressure, greasing the tool daily with high-temperature paste, and checking the internal polyurethane buffers for wear and tear.

Why are box type breakers required for city construction?

Most cities have strict noise ordinances that limit the decibel level of construction equipment in residential or commercial zones. Using a silenced breaker ensures compliance with these 2026 regulations, preventing project shutdowns, angry community complaints, and expensive municipal fines.

Are box type breakers heavier than open types?

Yes, the fully enclosed steel housing and internal dampening materials add extra weight to the attachment. Operators must carefully check their equipment specifications to ensure their excavator carrier can safely handle the additional operating weight without compromising stability.

How do internal buffers protect the carrier machine?

The polyurethane buffers absorb the massive recoil and kinetic vibrations generated during rock breaking. This prevents the destructive shockwaves from traveling up the boom, significantly reducing metal fatigue, pin wear, and hydraulic damage to the excavator carrier over time.

Can a silenced breaker be used in underwater applications?

Yes, many box type breakers can be modified for underwater use. This requires a specialized air compressor hookup to pump air into the strike chamber, creating positive pressure that prevents water and abrasive silt from entering and damaging the internal piston and seals.

What size excavator do I need for a silenced breaker?

The required excavator size depends entirely on the operating weight and hydraulic flow specifications of the specific breaker model. Always consult the manufacturer's guidelines to perfectly match the carrier specifications to the attachment for safe, efficient, and damage-free operation.
